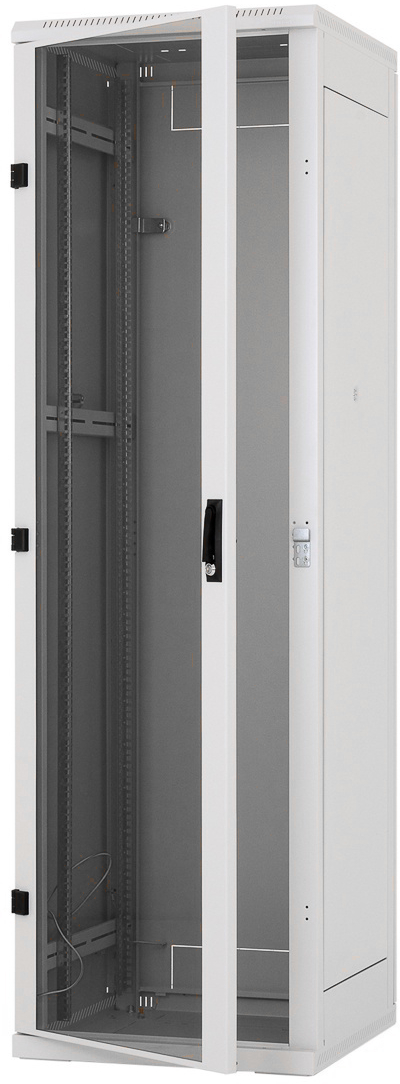

Triton RMA-27-A81-CAX-A1 27U Free-Standing CabinetToote kirjeldus inglise keeles:
Welded cabinet with removable side panels and rear cover,
IP20, capacity 400 kg.
A universal cabinet for data and telecommunication purposes. Sufficient capacity for common applications, a large selection of sizes and options together with a wide selection of accessories and excellent development make it the best selling cabinet in our range.
RMA has a robust welded construction. High quality processing and the newest technologies ensure a perfect look of the cabinet.
Flexible door opening
The hinge system allows the door to open almost 180°. The door can be easily removed and re-mounted to change the direction of opening.
We manufacture our own handles for the free-standing cabinets. By changing the plastic module (not included), a traditional or semi-cylindrical lock insert can be used. Patent: PUV 2013-27443
Adjustable vertical rails
Vertical 19” rails can be adjusted freely in any depth of the cabinet. This simplifies mounting of the device and configuration of connecting cables.
Removable side panels and rear cover
RMA has a welded frame and removable side panels. These are fixed as standard to the frame using a lock with the same key as the door and rear cover.
Door for fan units
With this cabinet type, it is possible to order a special metal door ready for mounting RAx-CH-X0x-X3 fan units. Further information is available in the section Active cooling.
Break-out blanking panels
Entry openings for cables in the rear part of the cabinet are covered with breakout-type blanking panels. It is possible to use a blanking panel with a brush in cable opening to avoid dust penetration. The fringe edge serves to protect cables from damage (both are parts of the cabinet supply).
Opening for a fan unit
A large opening covered with a breakout-type blanking panel enables mounting and removal of the Triton fan unit from outside of the cabinet without a need of using screws.
Castors, levelling feet
Prepared for mounting castors and levelling feet.
The back side of the cabinet
On the rear cover of the cabinet are two cable openings covered with breakout panels. One is at the top and one at the bottom of the rear cover. Other cable entries are on the ceiling and the base of the cabinet.
The RMA cabinet has a perforated frame to ensure cooling air has access to the equipment inside. Cooling can be augmented by installing fan units.
All removable parts are bonded together according to the relevant standards.
(for cabinet of 800 mm width) This system enables sliding vertical rails to be installed in a span of 19“, 21“ and 23“, just as needed for the equipment being used.
Middle pair of vertical rails
For cabinets deeper than 800 mm a third pair of vertical rails is supplied. An open profile means that the middle rails do not limit installation of deeper devices.
It is possible to equip the RMA and RZA cabinets with the swing frame with loading capacity 100 kg. Maximum available depth of the 19“ accessories is 330 mm.
