Адаптер Delock

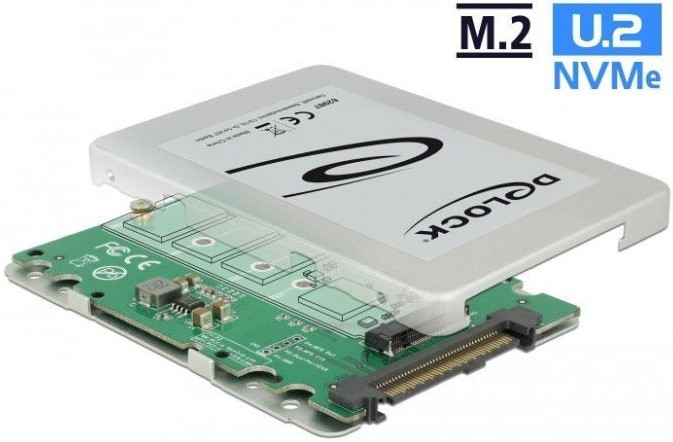

This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through the U.2 68 pin interface.

• Connectors:
1 x U.2 SFF-8639 male >
1 x 67 pin M.2 key M slot
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Power consumption: max. 16.5 W
• Short circuit protection, in-rush current suppression, over heating protection
• Dimensions (LxWxH): ca. 100.0 x 70.0 x 9.5 mm

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.10
• A free U.2 SFF-8639 interface or
• A free SFF-8643 interface

• Converter

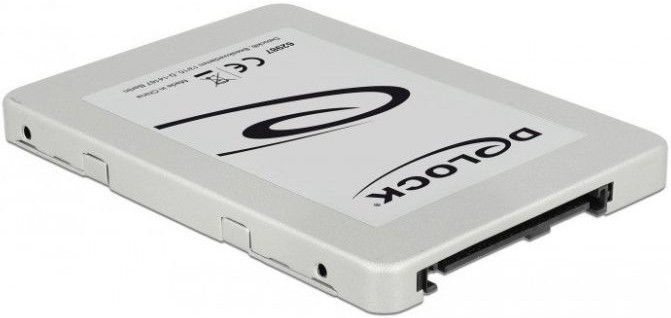

• 2.5″ enclosure
• 1 x fixing screw for M.2 module
• User manual

• Retail Box
