Блок питания SilentiumPC Supremo FM2 750 Вт, 12 см

Описание на английском языке:

Key features:
Certificate 80 PLUS®Gold – up to 92% energy efficiency @115 V.

Very quiet up to 70% load.

Warranty: 5 years* in door-to-door system for end-users – after product registration.

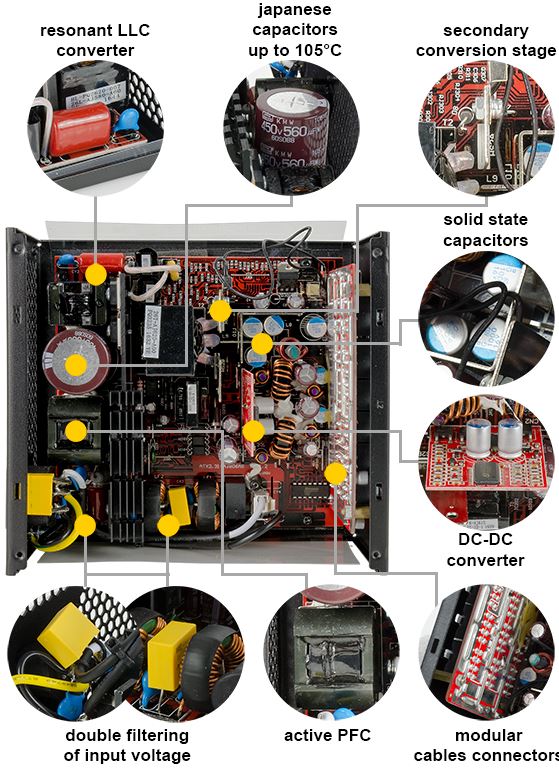

Advanced DC-DC converters.

Japanese electrolytic and polymer aluminum capacitors (solid state) certified up to 105°C.

Four PCI-E 6+2pin connectors – for configurations with high-end graphics cards.

Two EPS 4+4pin connectors – for configurations with motherboards designed for overclocking and for workstations.

Full compatibility with C6/C7 states of Intel Haswell oraz ErP Lot 6 2013 norm.

Technical specification:

Model: Supremo FM2 Gold 750 W

Dimensions: 15,0 cm (width) × 8,7 cm (height) × 16,1 cm (lenght)

Energy efficiency: up to 92% (80 PLUS®Gold certificate)

PFC: active (PF: 0,99)

MTBF@40°C: 100 000 h

Net weight: 2,34 kg

Colour: Black

Standard: ATX12V 2.31

ROHS certificate: yes

Safety certificates: CE, CB, CCC

Fully compatible with Intel C6/C7 states in Haswell, Skylake, Kaby Lake processors

Wires: fully modular

Cooling system: 1 × 120 mm PWM fan with Japanese double bearing by NMB

Safety features:

OVP (Over Voltage Protection)

SCP (Short Circuit Protection)

OPP (Over Power Protection)

SIP (Surge & Inrush Protection)

UVP (Under Voltage Protection)

Power distribution:

Input: 100 ~ 240 V / 67-47 Hz / 12-6 A

Output +5 V: 18 A

Output +3,3 V: 18 A

Output +12 V: 62 A

Output -12 V: 0,3 A

Output +5 Vsb: 3 A

Max. output +12 V: 744 W

Max. combined output +3,3 V and +5 V: 100 W

Combined continuous power: 750 W

Connectors:

Modular:

1 × 24-pin ATX |600 mm|
