HDD/SSD корпус Delock

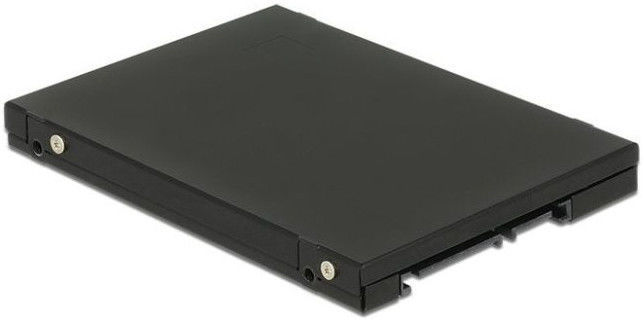

This converter by Delock enables the connection of an M.2 SATA SSD in 2280, 2260, 2242 and 2230 format or an mSATA module in half size or full size format. If both slots are occupied, only the M.2 SSD can be used. The converter can be installed into the system through the SATA 22 pin interface.

• Connectors:
1 x SATA 6 Gb/s 22 pin plug >
1 x 67 pin M.2 key B slot
1 x mSATA slot (half size / full size)
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• LED indicator
• Maximum power for modules: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 100 x 70 x 9.5 mm

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.20
• A free SATA 22 pin interface

• Converter with 2.5″ enclosure
• Mounting material
• User manual

• Retail Box
