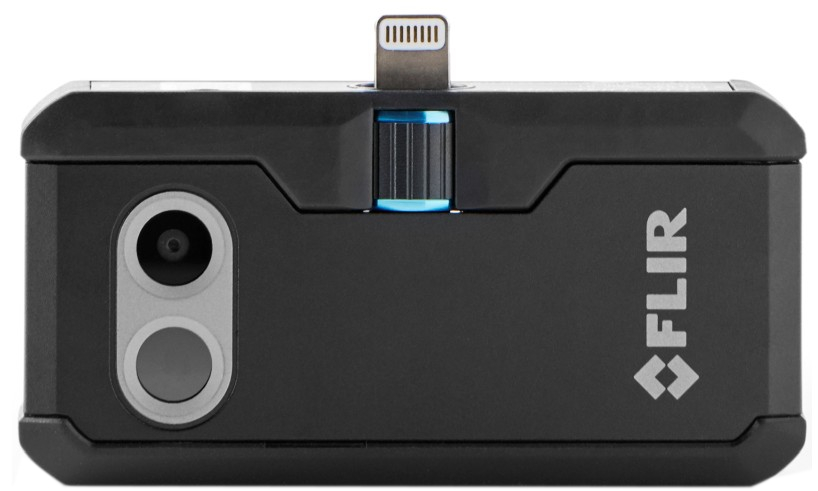

FLIR ONE Pro LT has the power to find hidden problems faster than ever. With the enhanced resolution of FLIR VividIR™ processing, added perspective of FLIR MSX®, and the convenience of the OneFit™ adjustable connector, FLIR ONE Pro LT works as hard as you do. Whether you're a professional or just focused on DIY projects, the FLIR ONE Pro LT has the powerful features you need at an affordable price.
The Professional's Thermal Smartphone Module
-
VIVIDIR™ IMAGE PROCESSING
Unique image processing technology that enhances resolution and accuracy, to help you catch potential problems early and reliably diagnose problems.
-
FLIR ONEFIT™ CONNECTOR
Adjustable connector extends by up to 4 mm, so you can secure your FLIR ONE Pro LT to your mobile device while its still in the protective case.
-
HARD-WORKING APP
Work-based features such as multiple spot meters, level/span controls, and reporting through the FLIR Tools Mobile App support more professional problem solving and functionality.
Professional-level camera that's worksite tough
Built to take the abuse that working on a jobsite dishes out every day, FLIR ONE Pro LT is rated to take a drop from 1.8 meters and tough enough for any environment.
OVERVIEW
Non-Operating Temperature -20°C — 60°C (-4°F — 140°F)
Scene Dynamic Range -20°C — 120°C (-4°F — 248°F)
Spot Meter Off / °C / °F. Resolution 0.1°C / 0.1°F
Thermal Sensitivity/NETD 100 mK
Weight 36.5 g
Dimensions (H x W x D) 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in)
Phone iOS
APP
Adjustable MSX distance 0.3 m — Infinity
Battery charge monitor 0 — 100%
Capture modes Video, Still image, Time lapse
File Formats Still images – radiometric jpeg
Palette Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava and Wheel
Video and Still Image Display/Capture Saved as 1440 × 1080
COMPLIANCE & CERTIFICATIONS
Certifications MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
CONNECTIONS & COMMUNICATIONS
Charging Female USB-C (5V/1A)
Video Male Lightning
ENVIRONMENTAL & APPROVALS
Emissivity Settings Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Mechanical shock Drop from 1.8 m
Operating Temperature 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
IMAGING & OPTICAL
Focus Fixed 15 cm — Infinity
Frame Rate 8.7 Hz
General Description Thermal and Visual Cameras with MSX
HFOV/VFOV 55° ±1° / 43° ±1°
Shutter Automatic/Manual
Thermal Resolution 80 × 60
Thermal Sensor Pixel size 17 µm, 8 — 14 µm spectral range
Visual Resolution 1440 × 1080
PERFORMANCE
Accuracy ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
POWER
Battery charge time 40 min
Battery life Approximately 1 hr
