Описание товара на английском языке:

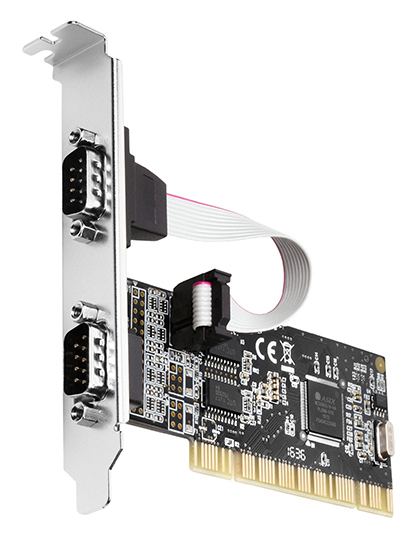

The AXAGON PCIA-S2 PCI card extends your desktop PC by two fully-fledged RS-232 standard serial ports with DB-9 connectors.
Seamless compatibility and wide porting options are ensured by using the proven MOSChip chipset.
The package also includes low profile blanking plugs for mounting the adapter into low profile cases.
Input:
PCI 2.3 interface, 32bit, 33MHz.
Backward compatible with PCI buses revisions 2.2 and 2.1.
Supports power supply 3.3V and 5V.
Output:
2x serial RS-232 port with DB9 male connectors, the ports are placed on the card’s blanking plug.
Maximum transmission rate of used RS232 drivers up to 120 kBd.
Compatible with 16C450 / 16C550 / Extended 16C550 / Enhanced Mode UART.
Other features:
Plug and Play Support - automatic selection of IRQ and I/O address.
Supports PCI IRQ sharing.
Re-Map IO Address Support - LPT port address setting (this feature is supported only in DOS).
256-Byte transmit & receive FIFO buffer for each port.
Adjustable flow control Xon/Xoff, hardware or none.
Adjustable word length 4, 5, 6, 7 or 8 bits.
Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.
Supports TXD, RXD, RTS, CTS, DTR, DCD, DSR, and RI serial signals.
9-bit data transmission support.
Supports connecting serial devices such as ATMs, cash registers, barcode readers, CNC machines, tablets, POSs or PDAs.
ASIX (formerly MOSChip) MCS9865IV-AA chipset is used.
Supported operating systems:
MS DOS 6.22, MS Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32 and 64-bit Windows OS versions), Linux with kernel 2.6.14 and above.
The AXAGON PCIA-S2 PCI card extends your desktop PC by two fully-fledged RS-232 standard serial ports with DB-9 connectors.
Seamless compatibility and wide porting options are ensured by using the proven MOSChip chipset.
The package also includes low profile blanking plugs for mounting the adapter into low profile cases.
Input:
PCI 2.3 interface, 32bit, 33MHz.
Backward compatible with PCI buses revisions 2.2 and 2.1.
Supports power supply 3.3V and 5V.
Output:
2x serial RS-232 port with DB9 male connectors, the ports are placed on the card’s blanking plug.
Maximum transmission rate of used RS232 drivers up to 120 kBd.
Compatible with 16C450 / 16C550 / Extended 16C550 / Enhanced Mode UART.
Other features:
Plug and Play Support - automatic selection of IRQ and I/O address.
Supports PCI IRQ sharing.
Re-Map IO Address Support - LPT port address setting (this feature is supported only in DOS).
256-Byte transmit & receive FIFO buffer for each port.
Adjustable flow control Xon/Xoff, hardware or none.
Adjustable word length 4, 5, 6, 7 or 8 bits.
Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.
Supports TXD, RXD, RTS, CTS, DTR, DCD, DSR, and RI serial signals.
9-bit data transmission support.
Supports connecting serial devices such as ATMs, cash registers, barcode readers, CNC machines, tablets, POSs or PDAs.
ASIX (formerly MOSChip) MCS9865IV-AA chipset is used.
Supported operating systems:
MS DOS 6.22, MS Windows 98SE / ME / 2000 / XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32 and 64-bit Windows OS versions), Linux with kernel 2.6.14 and above.
