Описание товара на английском языке:

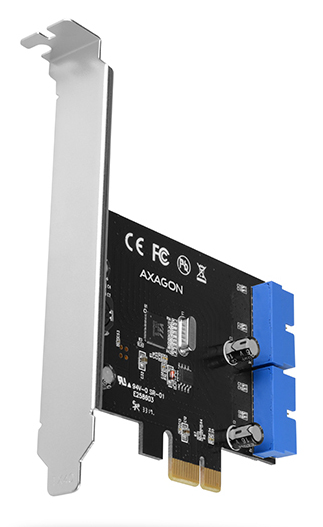

The AXAGON PCEU-034VL PCI-Express card adds four internal high speed USB 3.2 Gen 1 ports to your desktop computer.
Four independent SuperSpeed USB ports in the form of two internal 19-pin USB 3.0 connectors. It is possible to connect an internal SuperSpeed USB reader and the front USB ports of a PC case simultaneously.
The USB controller is equipped with a renowned VIA Labs company chipset with proven seamless compatibility and UASP support.
Low profile bracket is included in the package for mounting the adapter into low profile cases.
Input:
PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
Number of lines: 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
A bandwidth of 1-Lane PCI-Express 2.0 bus is 5 Gb/s.
Output:
2x 19-pin internal USB 3.2 Gen 1 connector with two ports to connect, for example, the internal SuperSpeed USB reader or front USB ports of the PC case.
SuperSpeed USB - USB 3.2 Gen 1 interface (before USB 3.1 Gen 1 / USB 3.0).
Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 and USB 1.1.
Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s (super / high / full / low speed).
When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2.500 Mb/s.
Other features:
Full Plug and Play support.
Support concurrent activity of SuperSpeed USB, USB 2.0 a USB 1.1 devices.
Compliant with the final official xHCI specification revision 1.0 by USB-IF.
Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
Fully supports Hot Plug connecting and disconnecting of USB devices while running.
Powering the controller and connected USB peripherals via PCI-Express bus.
VIA Labs VL805 chipset is used.
Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above.
Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10, Server 2012 / 2016 and later versions, no external drivers are required, they are already part of the operating system.
Four independent SuperSpeed USB ports in the form of two internal 19-pin USB 3.0 connectors. It is possible to connect an internal SuperSpeed USB reader and the front USB ports of a PC case simultaneously.
The USB controller is equipped with a renowned VIA Labs company chipset with proven seamless compatibility and UASP support.
Low profile bracket is included in the package for mounting the adapter into low profile cases.
Input:
PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
Number of lines: 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
A bandwidth of 1-Lane PCI-Express 2.0 bus is 5 Gb/s.
Output:
2x 19-pin internal USB 3.2 Gen 1 connector with two ports to connect, for example, the internal SuperSpeed USB reader or front USB ports of the PC case.
SuperSpeed USB - USB 3.2 Gen 1 interface (before USB 3.1 Gen 1 / USB 3.0).
Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 and USB 1.1.
Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s (super / high / full / low speed).
When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2.500 Mb/s.
Other features:
Full Plug and Play support.
Support concurrent activity of SuperSpeed USB, USB 2.0 a USB 1.1 devices.
Compliant with the final official xHCI specification revision 1.0 by USB-IF.
Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
Fully supports Hot Plug connecting and disconnecting of USB devices while running.
Powering the controller and connected USB peripherals via PCI-Express bus.
VIA Labs VL805 chipset is used.
Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above.
Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10, Server 2012 / 2016 and later versions, no external drivers are required, they are already part of the operating system.
