Карта расширения i-Tec

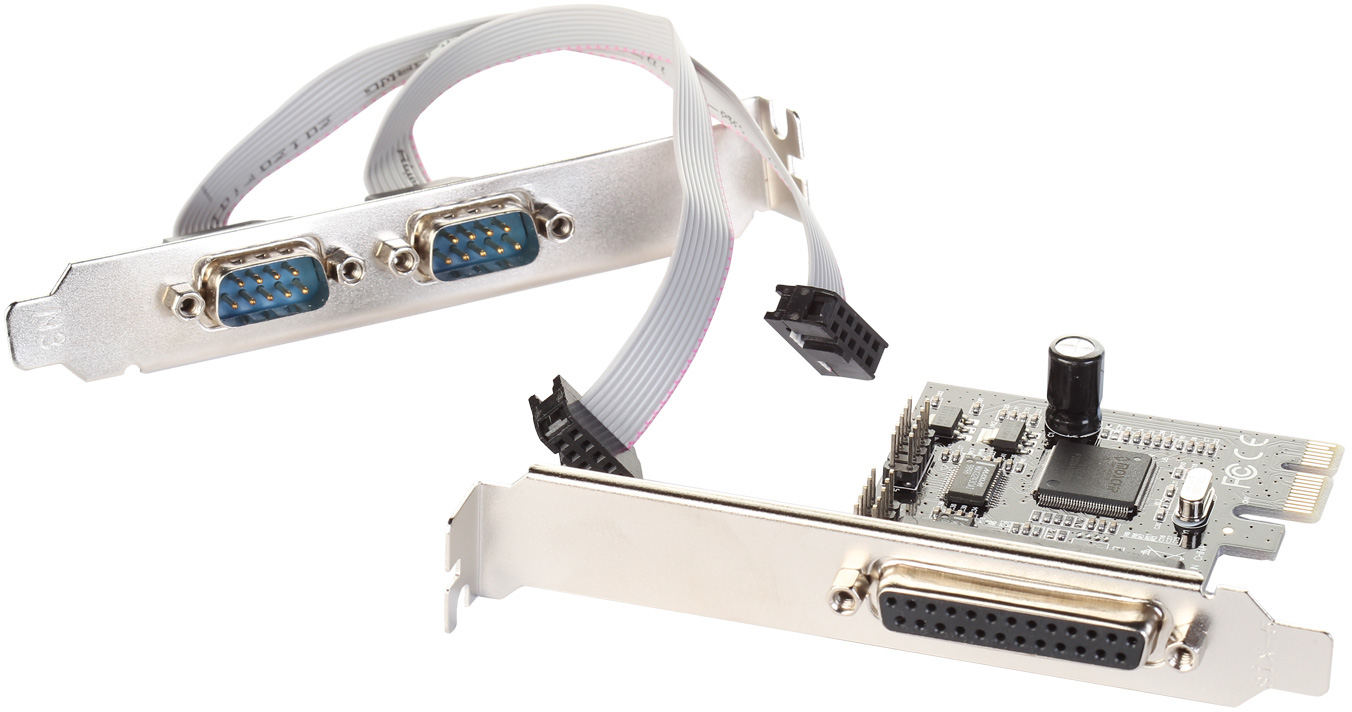

PCI Express card extend your computer with 2x COM port and 1xL PT-paralel port. This card offers RS232 output for asynchronous connection of I/O devices e.g. external modem, GSM modem, printer with serial port, barcode reader etc. and also standard parallel (LPT) port for connection e.g. printers. The card is delivered with three pieces of "low profile" plugs for possible installation in low computer cases.

• PCI express specification 1.0a
• 2x Serial RS232 type DB9 (Male) and 1x parallel type DB25 (Female)
• "Low profile" plugs
• Support all UART types by 450 to 550 (fully programmable)
• Support Standard Parallel Port (SPP), Enhanced Parallel (EPP) & Enhanced Capability Port (ECP)
• Data trasnfer rate up to 15 Mbps
• Data rate on Serial port up 230400 bps and on Parallel port up 1.5 Mbps
• FIFO receiver/transmitter works with data size up 256 byte
• Plug & Play and Hot-Swap
• Chipset Moschip MCS9901
• OS Windows XP/2003, Vista 32/64bit, 7 / 8 / 8.1 / 10 32/64bit, Linux, DOS, Mac OS
• Product size 120 x 71 x 19 mm
• Product weight 46 g
• Package size 195 x 170 x 52 mm
• Package weight 185 g

System requirements
Hardware requirements
Pentium compatible PC with an available PCIe slot

Operating system
Windows 2000, Windows XP/2003, Windows Vista 32/64bit, Windows 7 / 8 / 8.1 / 10 32/64bit, Linux, DOS, Mac OS

Package content

• 1x PCIe to 2S1P adapter
• 3x "Low profile" plugs
• 1x Cable DB25 parallel
• CD with drivers
• User´s Guide
