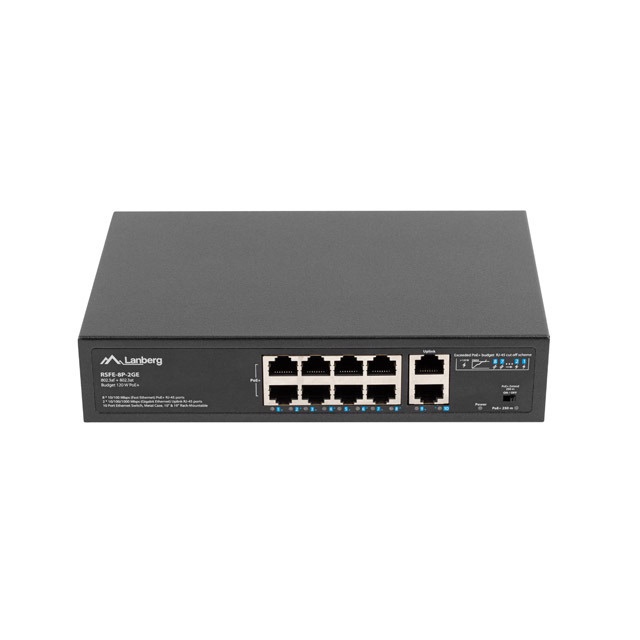

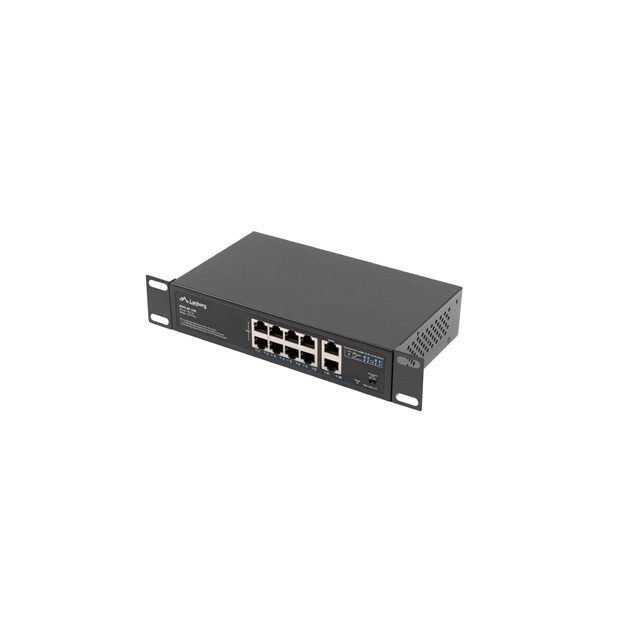

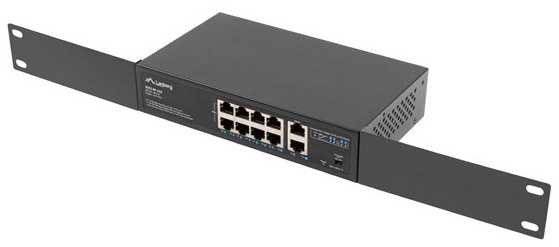

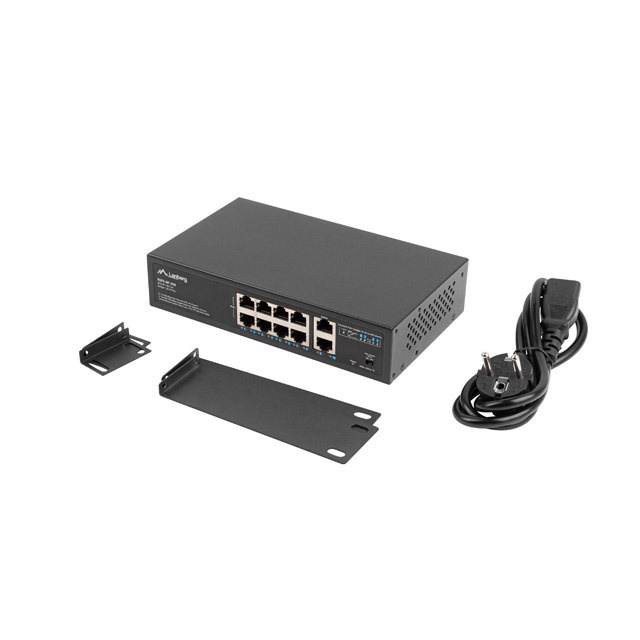

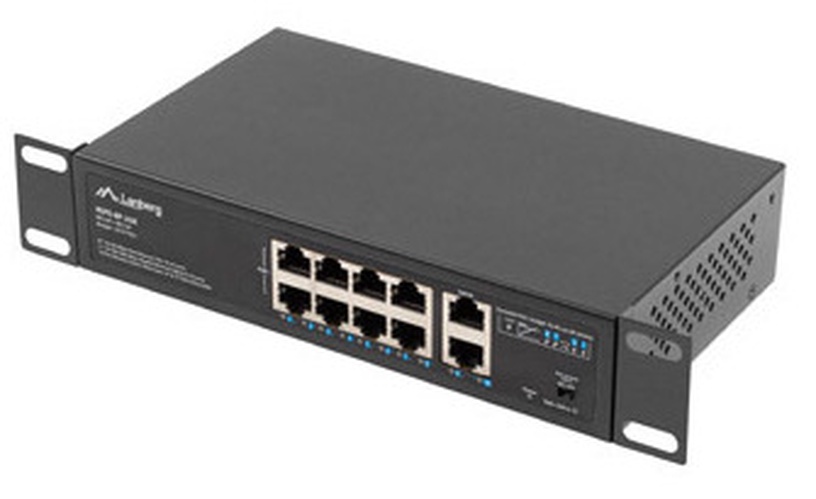

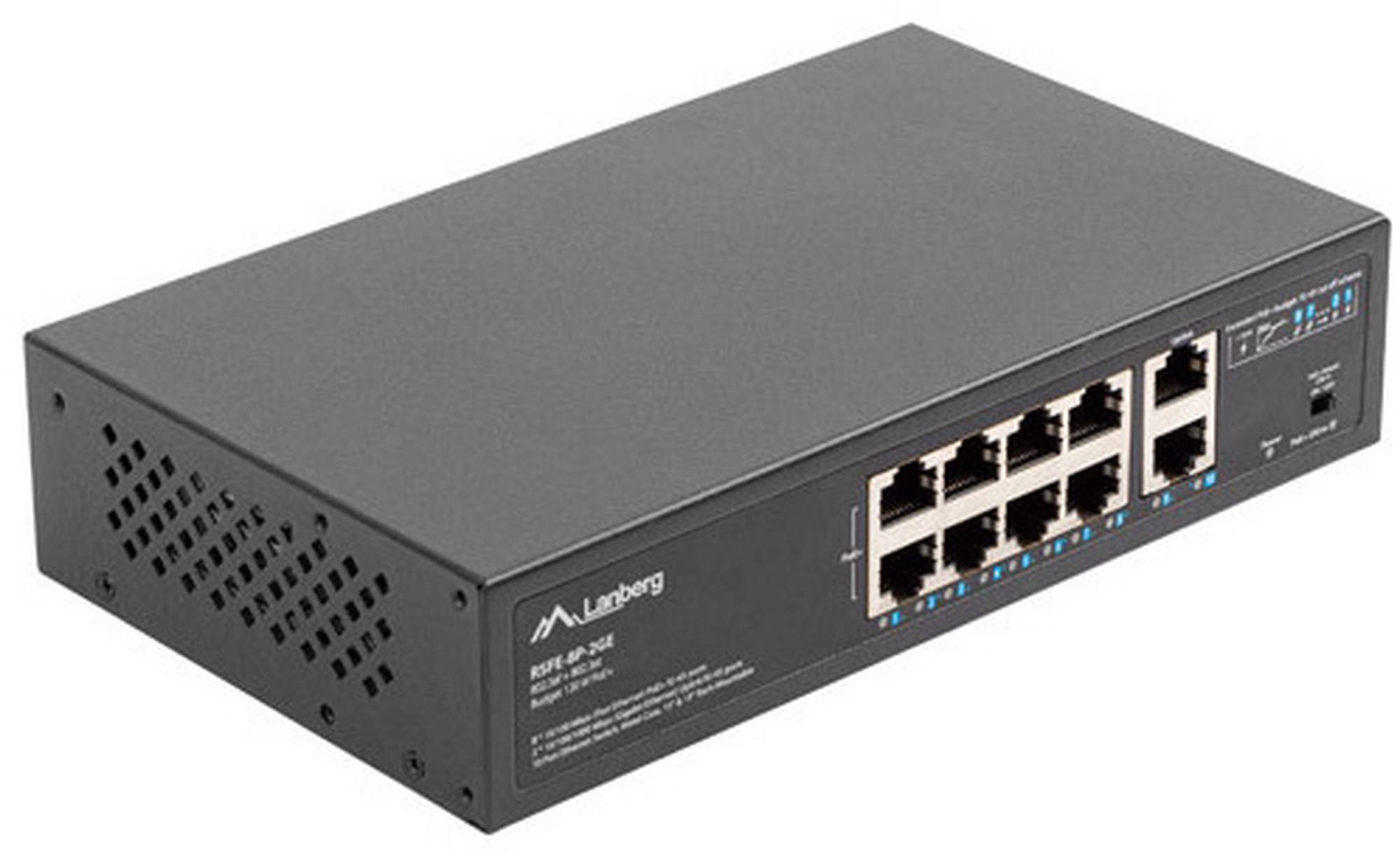

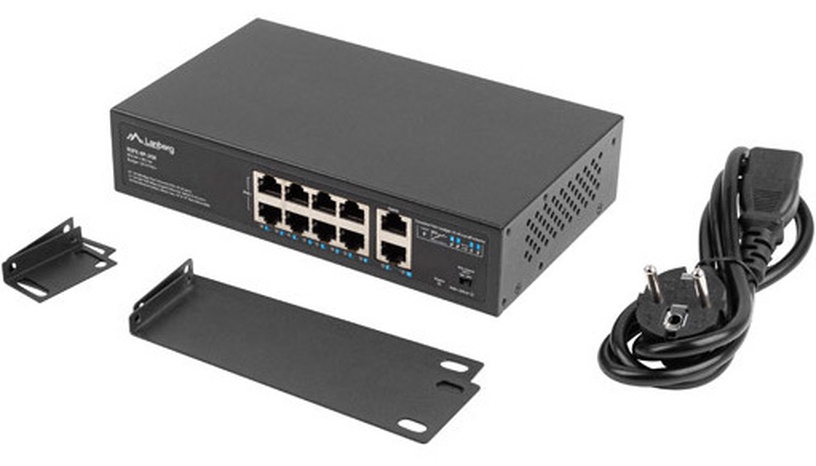

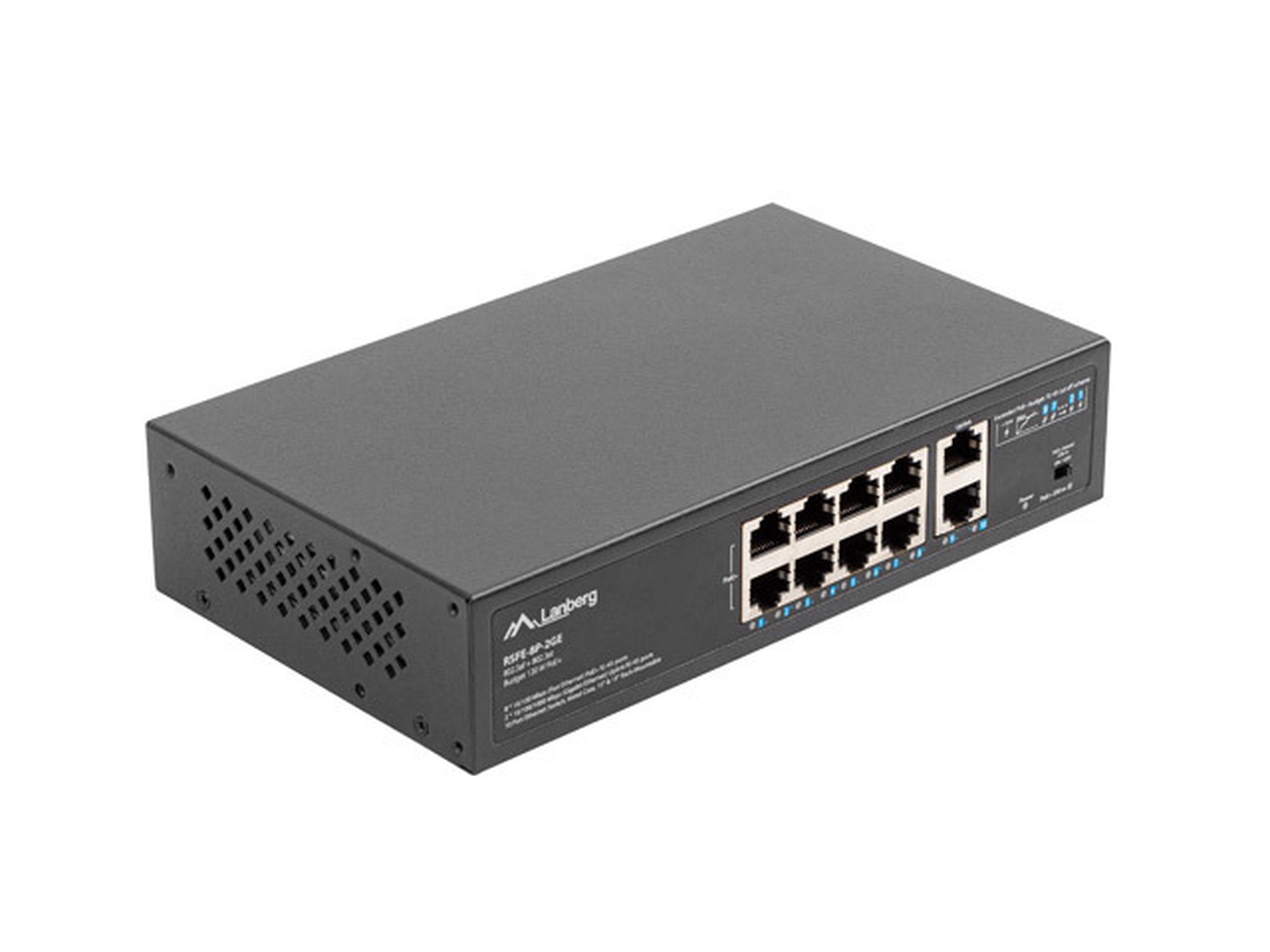

Коммутатор (Switch) Lanberg 8X 100MB POE+/2X 1GB

The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through the structural cabling. RSFE-8P-2GE-120 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system.

Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard – 802.3af and at. This means that the switch can supply the devices with a total of up to 120 W. All of this is combined with data transmission at the same time.

As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.

EXTEND MODE UP TO 250 METERS

By default, the standard switches ensure that the devices can operate at distances of up to 100 m on a single Ethernet cable. However, sometimes, it turns out that a unique solution beyond the standard is required when developing cabling and network structure due to the extensive core network and complex environment. In the case of surveillance systems, this is quite a common problem, resulting from the too-long distance between the distribution device and the end-device.

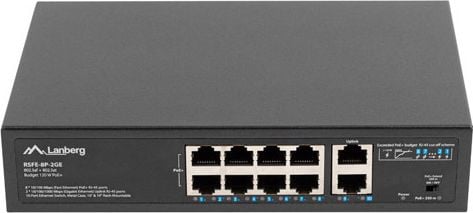

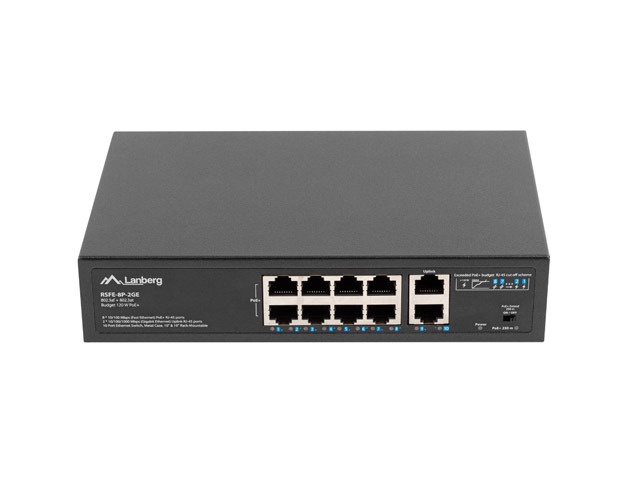

Lanberg switches have a feature that enables data transmission (max. 10 Mbps) and PoE+ power supply up to 250 m on a single cable section. Just toggle the switch position to „PoE+ Extend 250 m” on the housing to ensure the long-distance operation for ports 1 ~ 8.

The solution has been introduced for surveillance, IP, and access control systems, especially if the power equipment is located outside without the possibility of installing additional network distribution points.

4 kV ESD PROTECTION

The switch itself, as well as the devices connected to it, are repeatedly exposed to various dangers, including electrostatic discharges that can flow through both the power and network cables.

With the safety of both the devices and their users in mind, Lanberg has equipped the switch with an integrated discharge protection system that guarantees 4 kV protection for all ports, effectively reducing their damage due to a surge in voltage.

Under standard conditions, the network operation will continue without interruptions, just like the switch. At the same time, the user gains the safety of the device and infrastructure.
