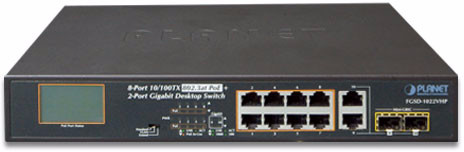

Коммутатор (Switch) Planet FGSD-1022VHP

Physical Port
8-port 10/100BASE-TX Fast Ethernet RJ45 copper
2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP shared combo interfaces

Power over Ethernet
Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
Up to 8 ports of IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30.8 watts for each PoE port
Each port supports 53V DC power to PoE Powered Device
120-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m with standard mode

Switching
Hardware based 10/100Mbps or 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 4K absolute MAC addresses
IEEE 802.1Q VLAN transparency
Hardware DIP switch for “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Automatic address learning and address aging

Hardware
12-inch desktop size, 1U height, rack mountable
LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
LCD monitor for system status and PoE usage status display
1 silent fan to provide stable and efficient power performance
Supports Contact Discharge of ±4KV DC and Air Discharge of ±6KV DC for Ethernet ESD protection
Supports ±4KV Surge Immunity
