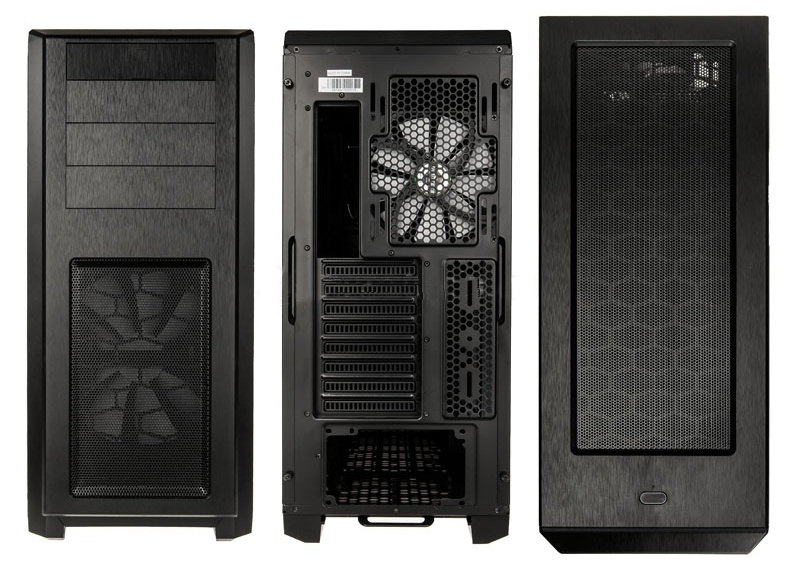

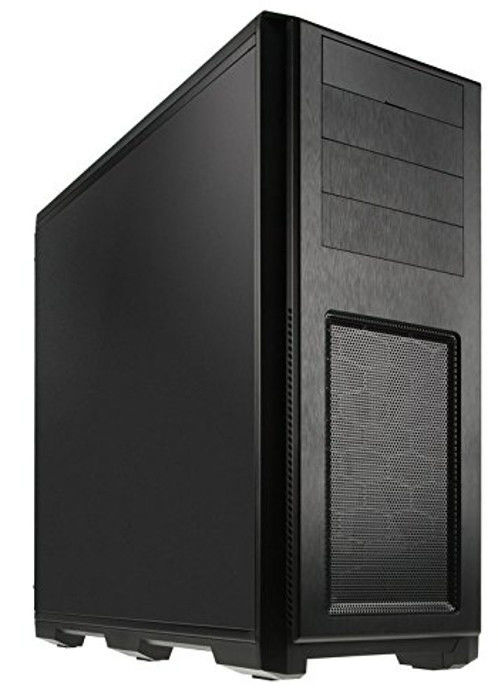

PREMIUM sound insulation pre-installed! From the King Mod service modified Phanteks Enthoo Pro in black
Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. This modified version of the PHANTEKS Enthoo Pro in black combines both approaches and provides the housing with pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats additional insulation included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In the delivery state of the black PHANTEKS Enthoo ProFive insulation mats are already glued or clamped. The mats on the bottom, the back part of the lid and the middle part of the back are clamped. Each one insulating mat is glued to the left or right side panel.
In addition, four mats are loosely in the housing, which are self-assembled as needed. The enclosed insulating mats are available for the upper and lower areas of the front, the front part of the lid and the upper back.
These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below information.
All additional insulation mats are labeled, which in conjunction with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the PHANTEKS Enthoo Pro and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.
Notes: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.
Technical details:
PREMIUM sound insulation pre-installed! From the King Mod service modified Phanteks Enthoo Pro in black
Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. This modified version of the PHANTEKS Enthoo Pro in black combines both approaches and provides the housing with pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats additional insulation included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In the delivery state of the black PHANTEKS Enthoo ProFive insulation mats are already glued or clamped. The mats on the bottom, the back part of the lid and the middle part of the back are clamped. Each one insulating mat is glued to the left or right side panel.
In addition, four mats are loosely in the housing, which are self-assembled as needed. The enclosed insulating mats are available for the upper and lower areas of the front, the front part of the lid and the upper back.
These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below information.
All additional insulation mats are labeled, which in conjunction with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the PHANTEKS Enthoo Pro and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.
Notes: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.
Technical details:
- PHANTEKS Enthoo Pro Midi Tower
- Dimensions: 235 x 535 x 550 mm (W x H x D)
- Material: steel (body), plastic with brushed aluminum look (front, cover)
- Color: Black
- Form factor: E-ATX, ATX, Micro-ATX, Mini-ITX, SSI EEB
Total possible fans: 1x 200 / 2x 140/120 mm (front)
1x 140/120 mm (rear)
2x 120 mm (HDD cage)
1x 200 / 3x 140/120 mm (cover)
1x 140 / 2x 120 mm (floor )- Pre-installed:
1x 200 mm (front)
1x 140 mm (back) - Radiator mountings (partial waiver of HDD and / or fan slots):
1x max. 240 mm (front)
1x max. 120/140 mm (rear side)
1x max. 360/420 mm (lid, up to 65 mm height)
1x max. 240/140 mm (floor) - Filter: front, lid, bottom, power supply (removable)
- Drive bays:
3x 5.25 inches (external; tool-free)
6x 3.5 / 2.5 inches (internal; 2 HDD cages, 3.5 inches without tools)
1x 2.5 inches (internal; SSD bracket behind the motherboard Tray with "Drop-n-Lock") - Power supply: 1x standard ATX (optional)
- Expansion Slots: 8
- I / O-Panel:
2x USB 3.0 (internal connection)
2x USB 2.0
1x per Audio In / Out - Maximum graphics card length: 347 mm (without any waiver)
- Maximum graphics card length: 472 mm (without HDD cages)
- Maximum CPU cooler height: 193 mm
- Insulation (pre-installed):
Left side panel
Right side panel - Insulation (clamped):
bottom
cover rear center
back (next to PCI slots) - Insulation (included):
front top
front bottom
cover front
back top (fan slot)
