Описание товара на английском языке:
Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.

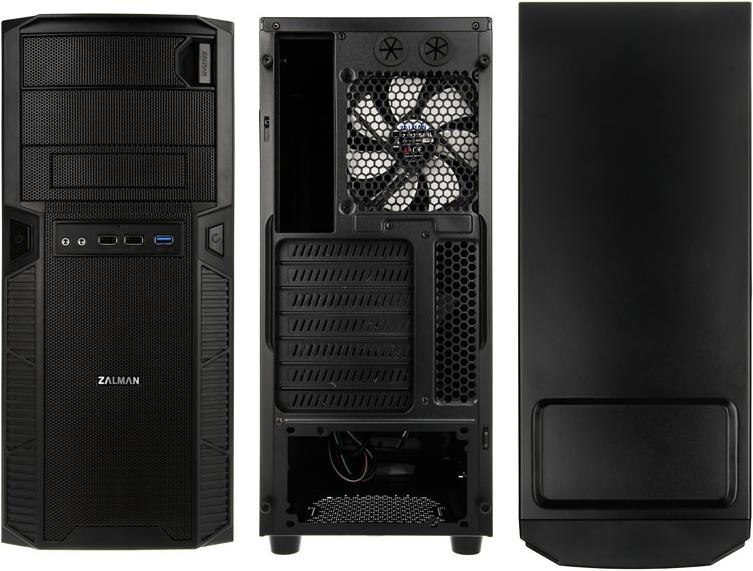

In addition, an insulation can provide even lower external noise. With this modified version of the Zalman Z1 in black, both approaches are connected and the housing is equipped with a pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In the delivery condition of the Zalman Z1, seven insulating mats are already glued or clamped. In addition, three mats are loosely in the housing, which are self-assembled as needed.
These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below information.
All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Zalman Z1 and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.
Notes: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.
Technical details:
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. With this modified version of the Zalman Z1 in black, both approaches are connected and the housing is equipped with a pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In the delivery condition of the Zalman Z1, seven insulating mats are already glued or clamped. In addition, three mats are loosely in the housing, which are self-assembled as needed.
These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below information.
All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Zalman Z1 and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.
Notes: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.
Technical details:
- Dimensions: 199 x 432 x 457 mm (W x H x D)
- Material: steel (body), plastic (front, cover)
- Weight: about 6 kg
- Color: Black
- Form factor: ATX, Micro-ATX
- Fan:
1x 120 mm (front, pre-installed)
1x 120 mm (back, pre-installed) - Filter: power supply
- Drive bays:
2x 5.25 inches (external, tool-free)
1x 3.5 inches (external)
4x 3.5 inches (internal, HDD cage, tool-less)
1x 2.5 inches (internal, tool-less) - Power supply: 1x standard ATX (optional)
- Expansion Slots: 7
- I / O-Panel:
1x USB 3.0
2x USB 2.0
1x per Audio In / Out - Maximum graphics card length: 360 mm
- Insulation (pre-installed):
Left side panel
Right side panel
Floor front
Floor center
Front
lid Rear lid Rear
center - Insulation (enclosed):
front top
front bottom
back top top (fan slot)
