Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. With this modified version of the Zalman R1 Midi Tower both approaches are connected and the design tower is equipped with a pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats, additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In delivery condition of the Zalman R1are insulating mats already installed in the left and right side panel. Two insulating mats are mounted on the floor, in the front and middle part of the floor. Another insulation mat is pre-installed at mid-height on the back.
In addition, three mats are loosely in the housing, which are self-assembled as needed. The insulating mats can be attached to the front, the lid and the upper part of the back. These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved.
All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Zalman R1 and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate. In addition, the built-in fans should be throttled with the built-in control.
Notes : Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.
Technical details:
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. With this modified version of the Zalman R1 Midi Tower both approaches are connected and the design tower is equipped with a pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats, additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In delivery condition of the Zalman R1are insulating mats already installed in the left and right side panel. Two insulating mats are mounted on the floor, in the front and middle part of the floor. Another insulation mat is pre-installed at mid-height on the back.
In addition, three mats are loosely in the housing, which are self-assembled as needed. The insulating mats can be attached to the front, the lid and the upper part of the back. These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved.
All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Zalman R1 and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate. In addition, the built-in fans should be throttled with the built-in control.
Notes : Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.
Technical details:

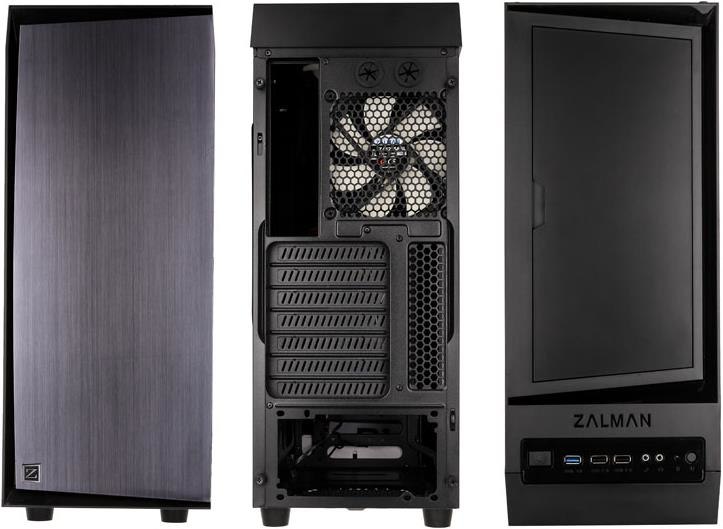

- Zalman R1 Midi Tower
- Dimensions: 192 x 465 x 450 mm (W x H x D)
- Material: steel (body), plastic (front, cover)
- Weight: approx. 4.8 kg
- Color: Black
- Form factor: ATX, Micro-ATX, Mini-ITX
- Total possible fan:
2x 120 mm (front)
2x 120 mm (rear)
1x 120 mm (cover) - Pre-installed:
1x 120 mm (front, blue LED)
1x 120 mm (back)
1x 120 mm (cover) - Radiator mountings (partial waiver of fan slots):
1x max. 240 mm (cover) - Filter: front, bottom, power supply (removable)
- Drive bays:
2x 5.25 inches (external, tool-free)
1x 3.5 inches (external, tool-less)
4x 3.5 inches (internal, tool-less)
1x 2.5 inches (internal) - Power supply: 1x standard ATX (optional)
- Expansion Slots: 7
- I / O panel:
1x USB 3.0 (internal connection)
2x USB 2.0 (internal connection)
1x each audio in / out - Fan control: 2 channels
- Maximum graphics card length: 360 mm
- Maximum network part length: 200 mm
- Maximum CPU cooler height: 160 mm
- Insulation (pre-installed):
Left side panel
Right side panel
Floor front
Floor center
Rear center - Insulation (included):
Front
Back Top
Cover
