LevelOne RJ45 To SFP Gigabit Media Converter GVT-2010
GVT-2010 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 100 km via fiber optical cable.
1. Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3x flow control, IEEE 802.3at POE+, IEEE 802.3af POE
2.Media conversion between 10/100/1000Base-T and 1000Base-SX/LX
3.10/100/1000M media converter with SFP slot or SC fiber transeiver
4.Supporting auto-sensing full-duplex and half-duplex operation
5.Supporting auto-sensation of MDI/MDI-X, facilitating system commissioning and installation
6.Support jumbo frame up to 9K
7.Store-and-Forward mechanism
8.Supporting LFP function
9.Support being powered by PoE via UTP cable and AC/DC adaptor
Standards & Protocols:
IEEE802.3 10Base-T Ethernet,
IEEE802.3u 100Base-TX Fast Ethernet,
IEEE802.3ab 1000Base-T ,
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,
IEEE 802.3x flow control,
IEEE 802.3at POE+,
IEEE 802.3af POE
Port: 1X SFP Slot or 1X SC fiber port, 1 X RJ45 port(POE PD)
Indicator:
PWR (power supply),
FX LINK (optical link action)
TP 1000 (TP cable rate1000M),
TP 100 (TP cable rate 100M)
TP LINK/ACT (TP cable packet forwarding action),
FDX (TP full duplex operation)
Wavelength (nm): depend on fiber transeiver
Transmission Method: Store and forward
Power Input:
External: AC90~264V/DC100~380V input, 5V/2A output,
Power over Ethernet (IEEE802.3af) 48 VDC
Operating Temperature (°C):
-10~60 with operating
-40~85 with storage
Operating Humidity (Non-condensing): 5%~90%
Mount: Desk,Wall,Chassis mounted
LevelOne RJ45 To SFP Gigabit Media Converter GVT-2010
GVT-2010 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 100 km via fiber optical cable.

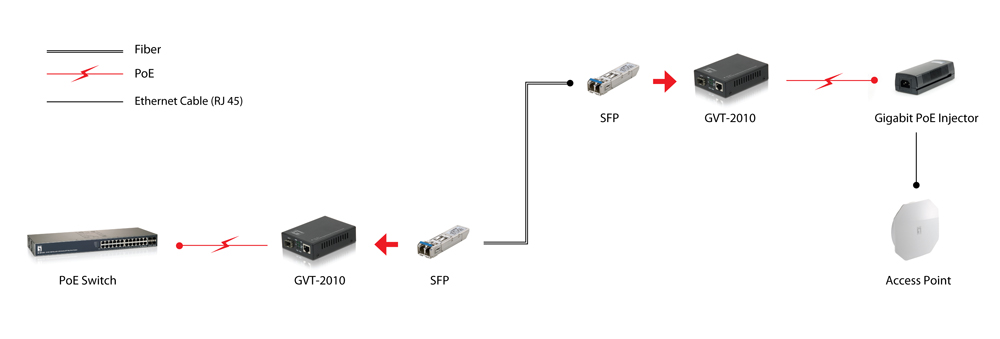

GVT-2010 supports 802.3at/af POE-PD function. It can draw the power via UTP cable connect to a POE-PSE switch or mid-span injector. This function makes the GVT-2010 ideal for remote areas of a network without power outlests.
General:1. Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3x flow control, IEEE 802.3at POE+, IEEE 802.3af POE
2.Media conversion between 10/100/1000Base-T and 1000Base-SX/LX
3.10/100/1000M media converter with SFP slot or SC fiber transeiver
4.Supporting auto-sensing full-duplex and half-duplex operation
5.Supporting auto-sensation of MDI/MDI-X, facilitating system commissioning and installation
6.Support jumbo frame up to 9K
7.Store-and-Forward mechanism
8.Supporting LFP function
9.Support being powered by PoE via UTP cable and AC/DC adaptor
Standards & Protocols:
IEEE802.3 10Base-T Ethernet,
IEEE802.3u 100Base-TX Fast Ethernet,
IEEE802.3ab 1000Base-T ,
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,
IEEE 802.3x flow control,
IEEE 802.3at POE+,
IEEE 802.3af POE
Port: 1X SFP Slot or 1X SC fiber port, 1 X RJ45 port(POE PD)
Indicator:
PWR (power supply),
FX LINK (optical link action)
TP 1000 (TP cable rate1000M),
TP 100 (TP cable rate 100M)
TP LINK/ACT (TP cable packet forwarding action),
FDX (TP full duplex operation)
Wavelength (nm): depend on fiber transeiver
Transmission Method: Store and forward
Power Input:
External: AC90~264V/DC100~380V input, 5V/2A output,
Power over Ethernet (IEEE802.3af) 48 VDC
Operating Temperature (°C):
-10~60 with operating
-40~85 with storage
Operating Humidity (Non-condensing): 5%~90%
Mount: Desk,Wall,Chassis mounted
