Описание товара на английском языке:

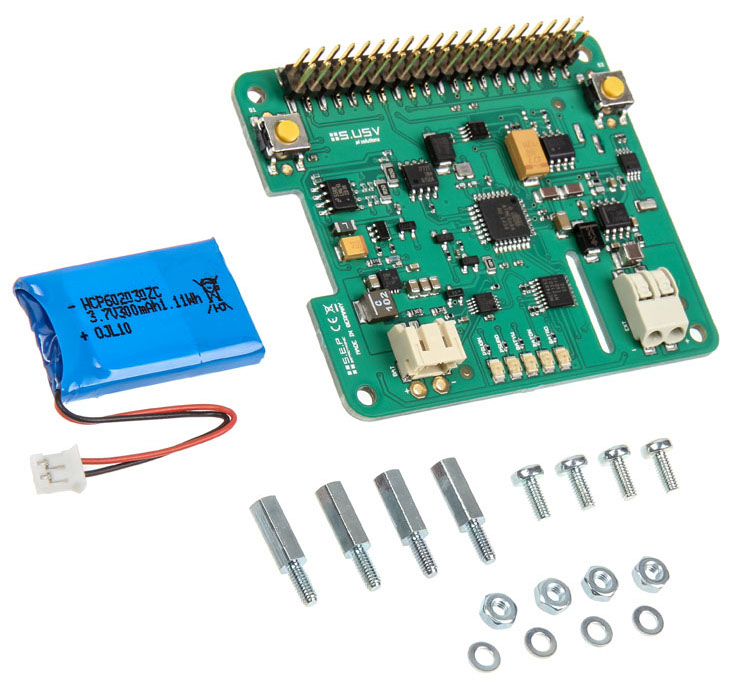

Behind the name S.USV hides a German brand, which specializes in accessories for the Raspberry Pi and other popular microcomputers. The main focus is placed on an uninterruptible power supply of the Pi. With the variants "Pi Basic" and "Pi Advanced" S.USV could quickly make a name among enthusiasts and fans of the Raspberry Pi.
The "Pi Basic" version offered here is an extended power supply add-on module with integrated and adjustable charging function for the Raspberry Pi, with the main focus on the uninterruptible power supply of the single-board computer. For example, a significantly faster battery charging time can be achieved by setting the charging current to 1A (instead of the standard 300 mA).
As a fully functional plug & play solution, power is supplied to the S.USV Pi Basic directly via the 40 pin GPIO connector of the Raspberry Pi, thus using a common voltage source. As a result, no further wiring or power supplies are necessary. To safely shut down the Raspberry Pi in the event of a malfunction and prevent data loss, the module is equipped with a long-lasting LiPo battery that covers the required voltage range via a boost switching power converter.
If, for example, the power supply of the mini-computer falls below an adjustable voltage threshold, the S.USV Pi Basic switches automatically to battery operation and keeps the functionality of the Raspberry Pi constant over a period of time that can be set by the user, thus bypassing or driving the power failure Safely shutdown one-board computer in the event of a long-term power failure.
The uninterruptible power supply of the Raspberry Pi is guaranteed by a fully integrated monitoring system with a wide range of operating options. All possible operating states of the Raspberry Pi are monitored internally, so that the module is always able to react accordingly to misconduct.
The "Pi Advanced" version also offers a mains input for the extended voltage range of 7-24 volts. All operating states or switching operations can be checked and controlled via a software including smartphone app or tablet.
Technical details:
Behind the name S.USV hides a German brand, which specializes in accessories for the Raspberry Pi and other popular microcomputers. The main focus is placed on an uninterruptible power supply of the Pi. With the variants "Pi Basic" and "Pi Advanced" S.USV could quickly make a name among enthusiasts and fans of the Raspberry Pi.
The "Pi Basic" version offered here is an extended power supply add-on module with integrated and adjustable charging function for the Raspberry Pi, with the main focus on the uninterruptible power supply of the single-board computer. For example, a significantly faster battery charging time can be achieved by setting the charging current to 1A (instead of the standard 300 mA).
As a fully functional plug & play solution, power is supplied to the S.USV Pi Basic directly via the 40 pin GPIO connector of the Raspberry Pi, thus using a common voltage source. As a result, no further wiring or power supplies are necessary. To safely shut down the Raspberry Pi in the event of a malfunction and prevent data loss, the module is equipped with a long-lasting LiPo battery that covers the required voltage range via a boost switching power converter.
If, for example, the power supply of the mini-computer falls below an adjustable voltage threshold, the S.USV Pi Basic switches automatically to battery operation and keeps the functionality of the Raspberry Pi constant over a period of time that can be set by the user, thus bypassing or driving the power failure Safely shutdown one-board computer in the event of a long-term power failure.
The uninterruptible power supply of the Raspberry Pi is guaranteed by a fully integrated monitoring system with a wide range of operating options. All possible operating states of the Raspberry Pi are monitored internally, so that the module is always able to react accordingly to misconduct.
The "Pi Advanced" version also offers a mains input for the extended voltage range of 7-24 volts. All operating states or switching operations can be checked and controlled via a software including smartphone app or tablet.
Technical details:
- Dimensions: 65 x 56.5 mm (W x D)
- Uninterruptible power supply: 5 Volt / 2,500 mA
- Extended voltage range: 7-24 volts / 2,500 mA
- Interface: GPIO 40-pin
- Compatibility: Pi 3 and Pi 2 Model B, Pi 1 A +, Pi 1 B +
- Special Features:
Extended Voltage
Range ID EEPROM
Monitoring System
Mobile Application
Durable LiPo Battery
Battery Management
Battery Monitoring
Real Time Clock
Raspberry Pi Supply Switch
