Переходник EK Water Blocks

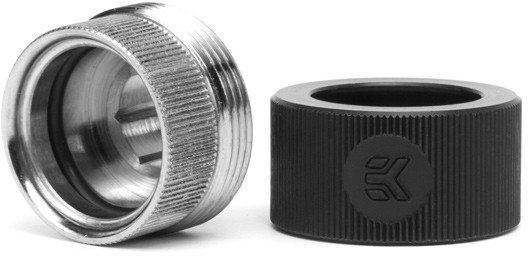

EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.

The barb is made of nickel-plated CNC machined brass while the ring is made of black-chromed CNC machined brass and feature quality O-rings.

These fittings are fully compatible with EK-CSQ series (45°/90°) angled adapters.

Best practice is to install these fittings using Allen Key 9mm (not included, available for separate purchase).

Technical data:
- thread: G1/4" BSP; 4.5mm male thread lenght
- supported tube: 16mm (OD)
- outer diameter of a fitting: 23.8mm
- installed height: 13mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

ROHS Compliant!
