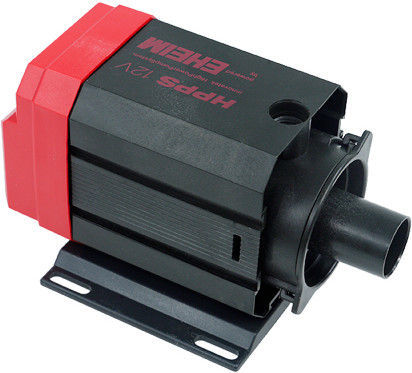

The innovatek HPPS i High Power 12V pump (innovatek / Eheim) is the industry variant of the proven HPPS Plus pump.
The HPPS i is intended for industrial applications and has a much higher headroom of 3.10m, but is also louder than the HPPS plus, which is optimized for applications in the PC.
The HPPS i, like the HPPS plus, can not be compared to other, conventional 12V pumps because the electronics of the HPPS i are significantly further developed and have numerous additional features.
Features:
- Extreme Power - Very high pump performance with sufficient pressure even in very large circuits
- Automatic and individual adaptation of the working point to your cooling system
- Delivery height 3.10 m
- All-ceramic bearing (special axis and rotor bearing with recessed bearing tube)
- Extremely low power consumption (6W type)
- Low starting current (<1A)
- Quickstart function
- Smooth running with soft start of the pump
- Oscillation detection with automatic restart
- 12V operating voltage
- Specially developed motor with extremely high efficiency
- absolutely endurance-ready (MTBF = 17 years!)
- Start-up also at> 60 switch-on cycles / h
- Extremely reliable and safe to use
- RoHS, UL Approved
Overview:
The newly developed HPPS i has a significantly increased delivery height of 3.1 m compared to the proven HPPS plus pump, which has meanwhile been used many thousands of times. However, due to the considerably increased performance, the HPPS i is not silent (for comparison: the HPPS Plus works almost inaudibly).
The HPPS i differs in the drive, the electronics and also in the impeller from the "normal" HPPS plus.
However, the storage is also in the HPPS i in full ceramic. That Both axle and bearing tube are made of ceramic material which ensures an extreme life.
Details:
The HPPS i pump can be connected directly to 12V, e.g. Power supply of a PC can be connected and there is NO 230V ~ connection necessary! Elaborate laying of the power cable is eliminated and the pump is also automatically switched on and off with the PC. Also, NO external module or wiring is required to operate the pump.
In order not to impair the excellent properties of this pump, a very complex microprocessor electronics is used, which monitors and controls the pump.
Features:
- The HPPS i pump is monitored and controlled by a microprocessor.
- This microprocessor monitors e.g. also the load and operating state of the pump and regulates the pump accordingly.
- The pump has a very smooth running
- Special bearing with ceramic axis and ceramic bearing of the rotor.
- Compact and easy to use: No external modules are required because the complete electronics are already integrated in the pump.
- extremely reliable - The pump has a soft start to protect the axle bearings
- Start-up safe even with> 60 switch-on cycles / h - The HPPS i can be started very often without any problems within a short time
- Furthermore, the pump has an oscillation detection with automatic restart of the pump in the event of a fault
- The HPPS i pump has a specially developed motor with extremely high efficiency and low power consumption. This means that your PC power supply is hardly burdened by the HPPS Plus.
- The HPPS Plus requires only a small start-up current and starts reliably with each power supply!
- NO 230V ~ connection is necessary anymore.
- The power supply of 12V DC is directly via the standard 4-pin HDD / CD drive power connector from the power supply of the PC directly to the pump itself.
- No complicated cabling necessary
Explanation of how the HPPS Plus works:
The special feature of the HPPS i pump is the extremely quiet operation and the high reliability (and the 12V connection) in the special control by the built-in microprocessor and thus the "intelligence" of the pump.
Unlike normal pumps, the HPPS i always adjusts to the prevailing environmental conditions (ie the existing water cooling system) and thereby achieves optimum performance.
Functionality:
A normal pump always runs at the same speed (frequency) and the same power. This means that the more components are in the cooling circuit, the further the flow goes down, as the resistance in the system increases. So power is lost and also the pump does not work optimally.
However, the HPPS i can react flexibly and adapt to the respective conditions. So the HPPS i will always try to achieve the optimal operating point and the optimum delivery rate in every water cooling system. This is individually determined and set by very complex measurements when starting the pump. Depending on the system, the pump works stronger or weaker -> It adapts individually!
Technical specifications:
- HPPS i centrifugal pump
- Delivery height 3.10 m
- Power consumption 6W typ.
- electronic start-up protection
- Soft start and oscillation detection with automatic restart
- Quickstart function
- exchangeable suction and pressure connections
- absolutely endurance-proof
- Full ceramic bearing of the rotor (wear almost zero)
- Ceramic axle stored in special rubber bearings
- extremely low-wear and smooth running
- Weight: ~ 500g
- Size (with suction port, WITHOUT screw connection, WITHOUT foot): ~ 130 x 55 x 65 mm
