| Application |

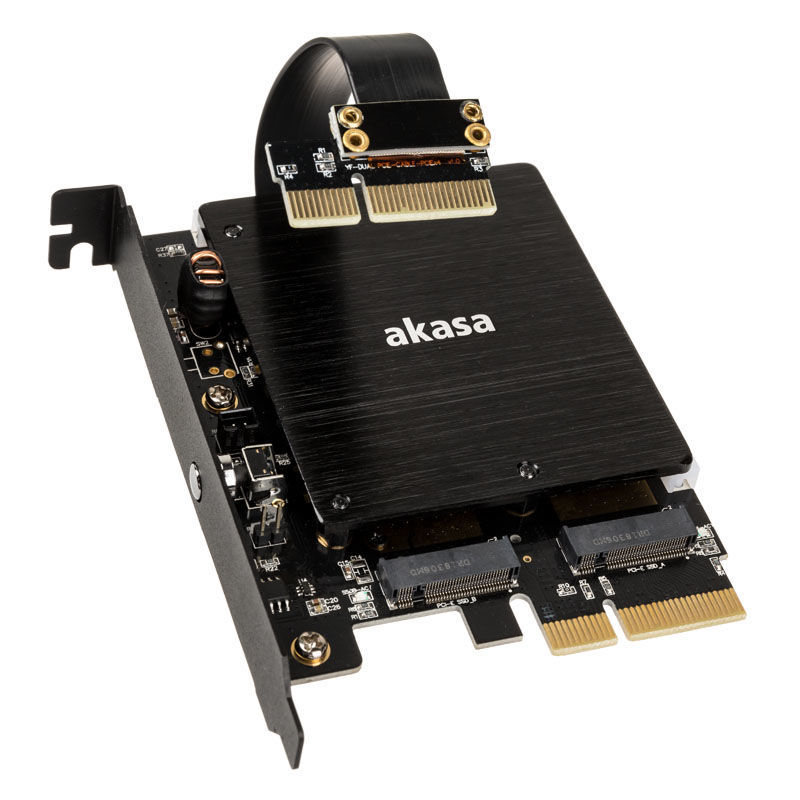

Converts two M.2 PCIe SSD to work in a main board PCIe x4 bus slot, reduces SSD heat, adds digital addressable RGB colour |
| Designed for |
M.2 PCIe/NVMe (M key) SSD 2230, 2242, 2260, 2280 size M.2 SSD 5V addressable RGB LED pin headers |
| Material |
Metal bracket, printed circuit board, exposed copper, aluminium heatsink, LEDs with diffuser |
| Voltage rating for LED |
5V DC |
| Current rating for LED |
0.48A |
| Connector |
3-pin addressable RGB connector 4-pin addressable RGB connector |
| Required host connection |
Two PCIe Gen3 x4, x8 or x16 slots |
| Certification |
Gigabyte RGB Fusion, MSI Mystic Light, ASUS AURA, ASRock Polychrome, Razer Chroma RGB |
| Operating Temperature |
0°- 55° C |
| Operating system compatibility |
OS independent; no additional drivers or software required |
| Contents |
M.2 SSD to PCIe adapter card, silicon thermal pads (x2), 2.54mm 3-pin to RGB 4-pin male cable, 2-pin to RGB 4-pin female cable, mounting screws x 4, screwdriver, user manual |
| Product code |
AK-PCCM2P-04 |
