Tootekirjeldus inglise keeles:
The Taiwanese component manufacturer Aerocool traditionally targets customers with a taste for something fancier styles who want to get everything, but do not want to put too much money into their hands.

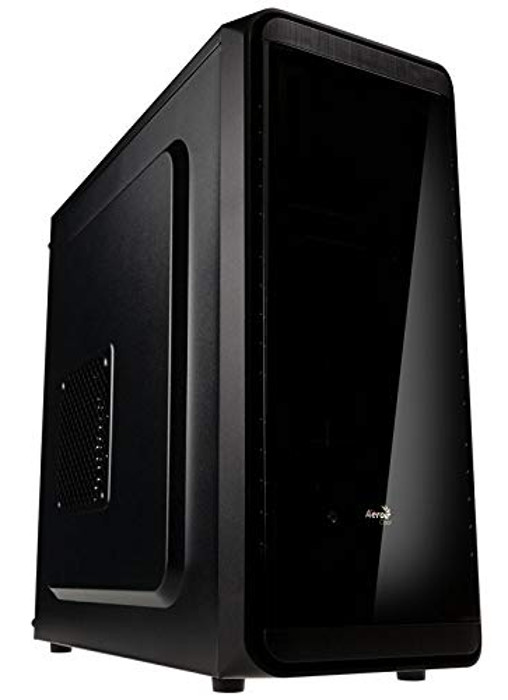

With the Aerocool SI-5200 Midi-Tower , however, the case specialist appeals above all to interested parties with high standards and a preference for a subtle yet stylish appearance. The simply and elegantly designed tower accordingly offers a front made of acrylic glass and a sophisticated design with a two-chamber design.
The features of the Aerocool SI-5200 Midi-Tower at a glance:
The Aerocool SI-5200 in detail With the black Aerocool SI-5200 , the manufacturer relies on a simple, yet effective design, which is characterized above all by the front of acrylic glass . This is ideal for installing optional LED fans. In addition to the power and reset buttons, the top side also features a state-of-the-art I / O panel that is easily accessible through practical placement, each with an audio in / out, status LEDs, a USB 3.0 and two USB 2.0 -Ports accommodated.
The completely black interior is divided into two chambersto decouple particularly hot from the less heat-producing components. The large main chamber on the left side thus houses graphics cards and the processor, whereas in the right chamber, the components are housed, which need not be particularly cooled. In addition, the Aerocool SI-5200 impresses with a bottom- mounted shaft that houses the drive cage and power supply. In addition, another optional 120 mm fan can be accommodated here in order to effectively supply installed drives with fresh air or to remove warm air. This design contributes to the sleek and minimalist design and brings benefits in both thermal and cable management.
Adequate ventilation of all hardware components in the Aerocool SI-5200 is ensured by up to six 120 mm fans . The front of the case can hold either up to three 120 mm fans or a 240 mm radiator to suck in fresh air, which must not exceed the height of 27 millimeters. To keep the graphics cards cool, another space for a 120mm fan is provided in the side panel of the case. A rear-mounted and pre-installed 120 mm fan is responsible for removing the warm air from the case. The ATX power supply on the ground is completely decoupled from the rest of the air circuitmounted and is thus spared. The removable dust filter in the bottom of the housing also contributes to this.
The Aerocool SI-5200 also impresses with the other equipment options and offers a drive cage for up to two 3.5-inch or three 2.5-inch data carriers, If you do not use a front-mounted radiator, this increases the maximum length of the installed graphics or expansion cards in this range from standard 342 to 370 millimeters. The CPU cooler can be up to 164 millimeters high and, thanks to a large recess in the motherboard tray behind the CPU socket area, can also be easily mounted on any ATX, Micro ATX or Mini ITX board. Multiple openings between the two chambers facilitate and facilitate tidy cable management inside the enclosure.
Technical details:
The Taiwanese component manufacturer Aerocool traditionally targets customers with a taste for something fancier styles who want to get everything, but do not want to put too much money into their hands.
With the Aerocool SI-5200 Midi-Tower , however, the case specialist appeals above all to interested parties with high standards and a preference for a subtle yet stylish appearance. The simply and elegantly designed tower accordingly offers a front made of acrylic glass and a sophisticated design with a two-chamber design.
The features of the Aerocool SI-5200 Midi-Tower at a glance:
- Elegant and stylish design
- Acrylic glass front allows view of up to three 120mm fans
- Two-chamber design
- Thoughtful design with a variety of configuration options
- Graphics cards up to 372 millimeters long
- 240 mm radiator support in the front
The Aerocool SI-5200 in detail With the black Aerocool SI-5200 , the manufacturer relies on a simple, yet effective design, which is characterized above all by the front of acrylic glass . This is ideal for installing optional LED fans. In addition to the power and reset buttons, the top side also features a state-of-the-art I / O panel that is easily accessible through practical placement, each with an audio in / out, status LEDs, a USB 3.0 and two USB 2.0 -Ports accommodated.
The completely black interior is divided into two chambersto decouple particularly hot from the less heat-producing components. The large main chamber on the left side thus houses graphics cards and the processor, whereas in the right chamber, the components are housed, which need not be particularly cooled. In addition, the Aerocool SI-5200 impresses with a bottom- mounted shaft that houses the drive cage and power supply. In addition, another optional 120 mm fan can be accommodated here in order to effectively supply installed drives with fresh air or to remove warm air. This design contributes to the sleek and minimalist design and brings benefits in both thermal and cable management.
Adequate ventilation of all hardware components in the Aerocool SI-5200 is ensured by up to six 120 mm fans . The front of the case can hold either up to three 120 mm fans or a 240 mm radiator to suck in fresh air, which must not exceed the height of 27 millimeters. To keep the graphics cards cool, another space for a 120mm fan is provided in the side panel of the case. A rear-mounted and pre-installed 120 mm fan is responsible for removing the warm air from the case. The ATX power supply on the ground is completely decoupled from the rest of the air circuitmounted and is thus spared. The removable dust filter in the bottom of the housing also contributes to this.
The Aerocool SI-5200 also impresses with the other equipment options and offers a drive cage for up to two 3.5-inch or three 2.5-inch data carriers, If you do not use a front-mounted radiator, this increases the maximum length of the installed graphics or expansion cards in this range from standard 342 to 370 millimeters. The CPU cooler can be up to 164 millimeters high and, thanks to a large recess in the motherboard tray behind the CPU socket area, can also be easily mounted on any ATX, Micro ATX or Mini ITX board. Multiple openings between the two chambers facilitate and facilitate tidy cable management inside the enclosure.
Technical details:
- Dimensions: 198 x 430 x 414 mm (W x H x D)
- Material: steel (0.5 mm), plastic, acrylic glass
- Weight: 3.8 kg
- Color: Black
- Form factor: ATX, Micro-ATX, Mini-ITX
- Total possible fan:
1x 120 mm (side panel)
3x 120 mm (front panel)
1x 120 mm (rear panel)
- Pre-installed:
1x 120 mm (back) - Radiator mountings (dispensing with fan slots):
1x max. 240 mm (max 27 mm high) (front) - Filter: power supply (detachable)
- Drive bays:
2x 3.5 / 2.5 inches (internal)
1x 2.5 inches (internal) - Power supply: 1x standard ATX (optional)
- Expansion Slots: 7
- I / O-Panel:
1x USB 3.0
2x USB 2.0
1x per Audio In / Out - Maximum graphics card length: 372 mm
- Maximum CPU cooler height: 164 mm
