Toote kirjeldus inglise keeles:
| Model | |
|---|---|

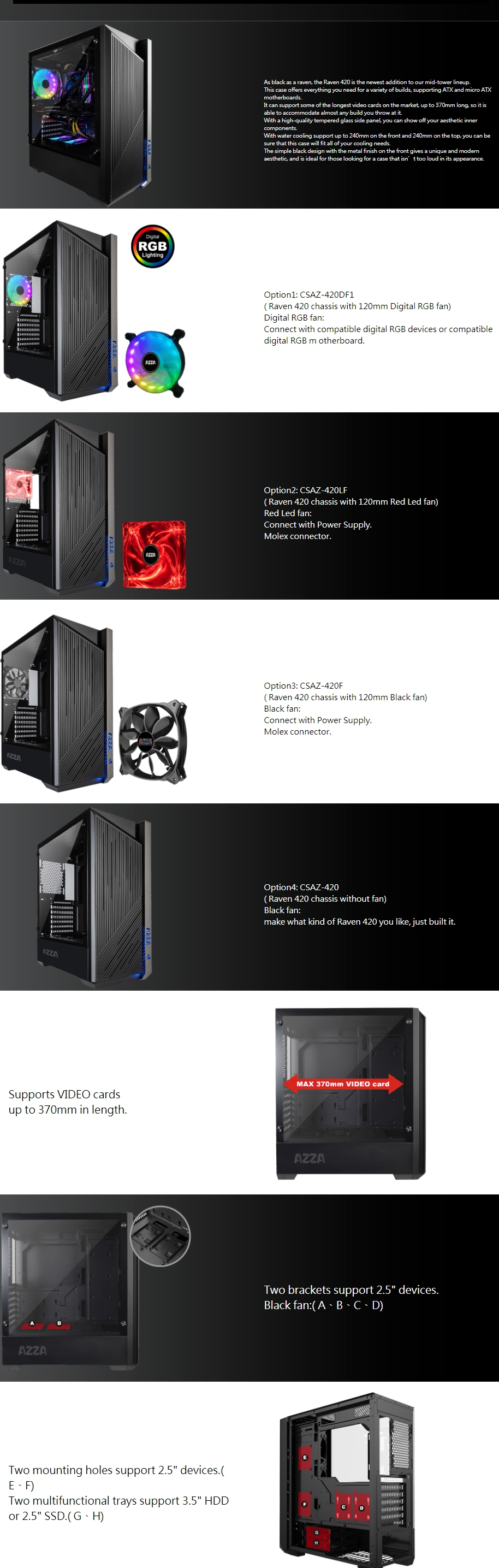

| Model Name | RAVEN 420 |
| Model Number | CSAZ-420DF1 /CSAZ-420LF/ CSAZ-420F / CSAZ-420 |
| Specifications | |
| Type | ATX Mid Tower |
| Color | Black (exterior)/Black (interior) |
| Side Panel Window | Left Side panel: Tempered Glass with rubber mounts |
| Max CPU Cooler Height | Up to 155mm |
| Max video Card Length | Up to 370mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | ATX、Micro ATX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 6 |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |
| Top Ports | Power button, reset button, HD Audio, USB 3.0 x 2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 480x205x425mm/ 18.9x8.1x16.7 inches |
| Weight | 6kg /13.2lbs |
| Features | |
| Tempered Glass Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects(CSAZ-DF1 only) | Addressable RGB light fan in the rear. All Addressable RGB light devices sync with the motherboard, allowing the motherboard software to directly control the lighting. |
| Available Fan Ports | 3x120mm or 2x140mm Fan ports in the front |
| 2x120mm or 2x140mm Fan ports on the top | |
| 1x120mm Fan port in the rear | |
| The available fan included | CSAZ-420DF1:Digital RGB fan |
| CSAZ-420LF:LED Fan | |
| CSAZ-420F:Front - 1 x Black fan ; Rear - 1 x Black fan | |
| CSAZ-420 :Case only | |
| Water Cooling | Supports radiators up to 240mm in the Front |
| Supports radiators up to 240mm on the Top | |
| Dust filters | Removable (magnetic) dustproof net on the top, iron net on bottom of chassis. |
| Power Supply Support | Bottom mounted ATX Power Supply |
