Tootekirjeldus inglise keeles:
Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. This modified version of the Shinobi Core Midi-Tower case from BitFenix combines both approaches and equips the elegant SofTouch Midi Tower with pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats, additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In the delivered condition of the BitFenix Shinobi, insulating mats are already installed on both side panels as well as in the front and middle floor area. In addition, four more mats are included - one for the front, one for the lid and two for the back. All additional insulation mats are labeled, which in conjunction with an enclosed installation manual ensures trouble-free installation.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.
In order to meet the requirements of an ultra-silent system, we recommend an additional speed reduction, which can be achieved, for example, with cable adapters or fan control.

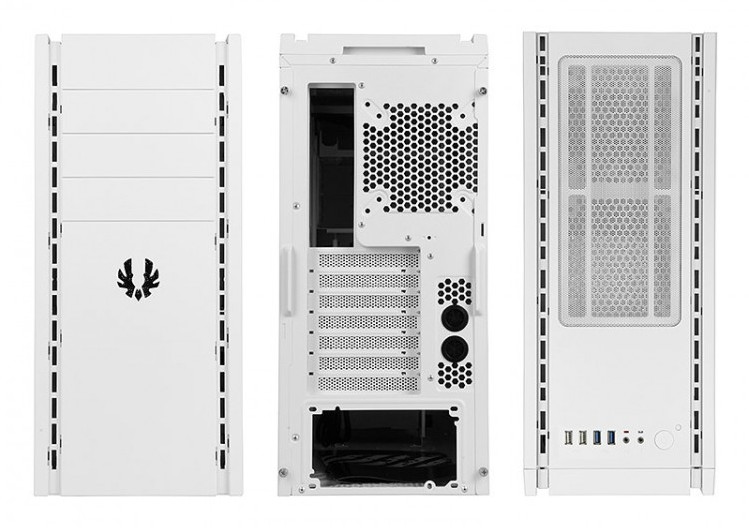

Note: Figure 6 shows the expansion options and the possible results in comparison. The illustrated accessories (mesh stripes and logos) are not included, but must be purchased separately. Technical details:
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. This modified version of the Shinobi Core Midi-Tower case from BitFenix combines both approaches and equips the elegant SofTouch Midi Tower with pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats, additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In the delivered condition of the BitFenix Shinobi, insulating mats are already installed on both side panels as well as in the front and middle floor area. In addition, four more mats are included - one for the front, one for the lid and two for the back. All additional insulation mats are labeled, which in conjunction with an enclosed installation manual ensures trouble-free installation.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.
In order to meet the requirements of an ultra-silent system, we recommend an additional speed reduction, which can be achieved, for example, with cable adapters or fan control.
Note: Figure 6 shows the expansion options and the possible results in comparison. The illustrated accessories (mesh stripes and logos) are not included, but must be purchased separately. Technical details:
- Dimensions: 205 x 460 x 490 mm (W x H x D)
- Material: steel
- Color: Matte white
- Weight: 8.5 kg
- Form factor: ATX, Micro-ATX, Mini-ITX
- Fan:
1x 120/92 mm (rear side, optional)
2x 120 mm (front, optional)
2x 140/120 mm (cover, optional)
1x 120 mm (bottom, optional)
Filter: front and bottom - Drives:
3x 5.25 inches (external)
1x 3.5 inches (external, 5.25 inch slot)
8x 3.5 inches (internal)
1x 2.5 inches (internal, 5.25 inch slot) - Expansion Slots: 7
- I / O-Panel:
2x USB 3.0 (internal connection)
2x USB 2.0
1x per Audio In / Out - Maximum graphics card length: 320 mm
- Maximum CPU cooler height: 160 mm
- Features:
Style: unmistakable design, elegant SofTouch surface
Power: max. 6x 120mm fan installable
Usability: internal cable management, 4x USB ports - Insulation (pre-installed):
Left side panel
Right side
panel Front panel
Middle panel - Insulation (included):
Front
cover
Upper back (fan slot)
Middle back (next to PCI slots)
