Tootekirjeldus inglise keeles:
Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.

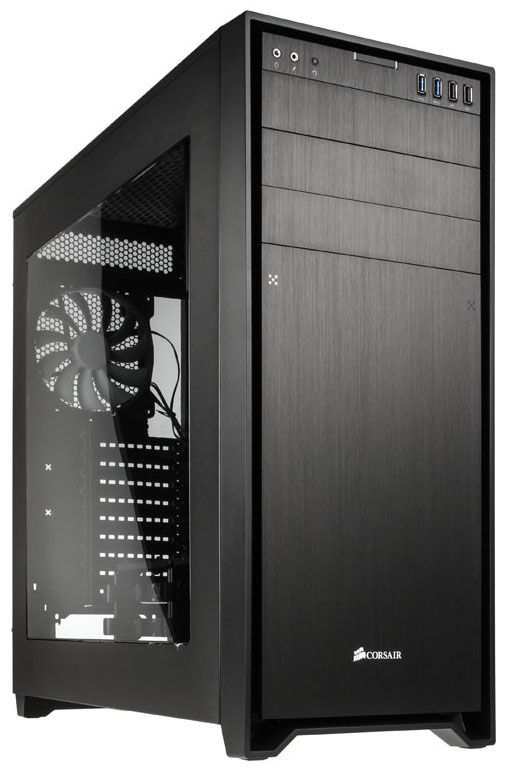

In addition, an insulation can provide even lower external noise. With this modified version of the Corsair Obsidian 750D in black with window, both approaches are connected and the housing is equipped with a pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
The Corsair Obsidian 750D with Window has five insulation mats already glued or clamped. In addition, four mats are loosely in the housing, which are self-assembled as needed.
These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below information.
All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Corsair Obsidian 750D and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.
Further information on the material specifications of the insulation material is available on theDatasheet available .
Notes: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.
Technical details:
Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. With this modified version of the Corsair Obsidian 750D in black with window, both approaches are connected and the housing is equipped with a pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
The Corsair Obsidian 750D with Window has five insulation mats already glued or clamped. In addition, four mats are loosely in the housing, which are self-assembled as needed.
These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below information.
All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Corsair Obsidian 750D and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.
Further information on the material specifications of the insulation material is available on theDatasheet available .
Notes: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.
Technical details:
- Dimensions: 235 x 560 x 546 mm (W x H x D)
- Material: steel (body, side panels), plastic (front frame), brushed aluminum (front panel)
- Weight: approx. 9.7 kg
- Color: Black
- Form factor: XL-ATX, E-ATX, ATX, Micro-ATX
Total possible fan: 2x 140/120 mm (front side)
1x 140/120 mm (rear side)
2x 140 / 3x 120 mm (cover)
2x 120 mm (bottom, without HDD cage at the corresponding slot) - Pre-installed:
2x 140 mm (front)
1x 140 mm (rear) - Radiator mountings:
1x max. 240 mm (front)
1x max. 140/120 mm (rear side)
1x max. 240 mm (cover) - Filter: front, power supply (all tools can be removed)
- Drive bays:
3x 5.25 inches (external, tool-free)
6x 3.5 / 2.5 inches (internal, 3.5 inches without tools)
4x 2.5 inches (internal, tool-less) - Power supply: 1x standard ATX (optional)
- Expansion Slots: 9
- I / O-Panel:
2x USB 3.0 (internal connection)
2x USB 2.0
1x per Audio In / Out - Maximum graphics card length: 450 mm (without HDD cage at this height)
- Maximum CPU cooler height: 170 mm
- Insulation (pre-installed):
right side panel
backside bottom - Insulation (clamped):
front top
cover
back top - Insulation (enclosed):
Front Bottom
Bottom
Rear Center (Fan Slot)
Rear Center (Next to PCI Slots)
