Toote kirjeldus inglise keeles:
Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. With this modified version of the Lian Li PC-J60WX Midi-Towers both approaches are connected and the housing is equipped with a pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats, additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In the delivery state of this Lian Li PC-J60WX Midi-Tower, the housing has already been equipped with insulating mats in all obligatory places in order to reduce the noise of the components. These include the two side panels and the middle back. The mats for the lid and the front were also pre-positioned. There are also two more mats, one for the bottom and one for the top back loosely in the case. These are also tailored to fit and can be installed as needed. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below.
All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Lian Li PC-J60WX and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate. In addition, the built-in fans should be throttled with the built-in control.
Note: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray can only be limited in comparison to the uninsulated version.
Technical details:
The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.
In addition, an insulation can provide even lower external noise. With this modified version of the Lian Li PC-J60WX Midi-Towers both approaches are connected and the housing is equipped with a pre-installed insulation.
The special feature of this compilation is that in addition to the pre-installed insulation mats, additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.
In the delivery state of this Lian Li PC-J60WX Midi-Tower, the housing has already been equipped with insulating mats in all obligatory places in order to reduce the noise of the components. These include the two side panels and the middle back. The mats for the lid and the front were also pre-positioned. There are also two more mats, one for the bottom and one for the top back loosely in the case. These are also tailored to fit and can be installed as needed. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below.
All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Lian Li PC-J60WX and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.
Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate. In addition, the built-in fans should be throttled with the built-in control.
Note: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray can only be limited in comparison to the uninsulated version.
Technical details:

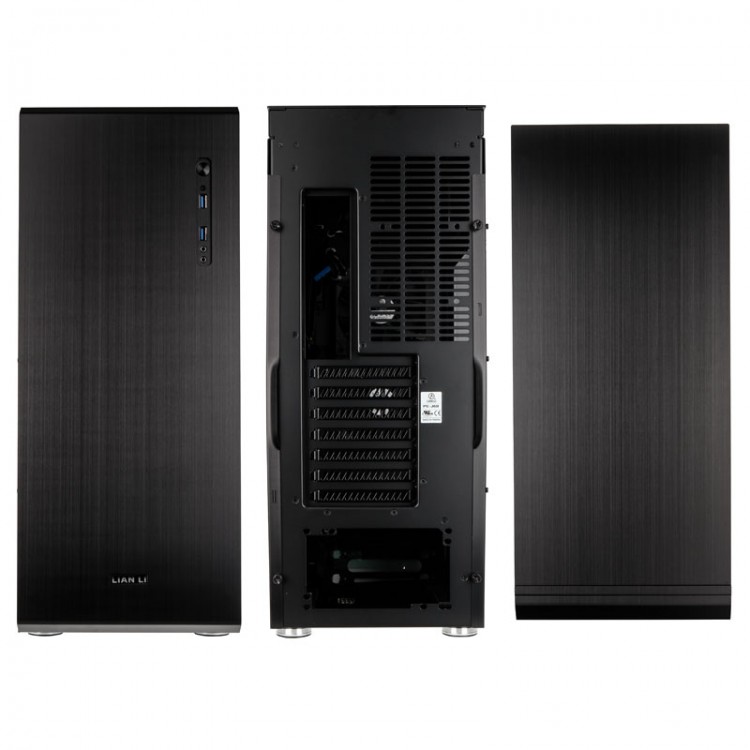

- Lian Li PC-J60WX Midi-Tower, black Window - insulated
- Dimensions: 210 x 507 x 489 mm (W x H x D)
- Material: aluminum (body), brushed aluminum (front, cover)
- Weight: approx. 6.5 kg
- Color: Black
- Form factor: ATX, Micro-ATX
- Total possible fan:
2x 120 mm (front)
1x 120 mm (in the power supply
cover) 3x 120 mm (cover) - Pre-installed:
2x 120 mm (front)
1x 120 mm (in the power supply cover ) - Radiator mountings:
1x max. 240 mm (front)
1x max. 360 mm (lid, up to 60 mm deep) - Filter: front, bottom (power supply), cover (all filters are removable)
- Drive bays:
4x 3.5 inches / 2x 2.5 inches in 2 drive cages (internal, tool-less)
1x 3.5 inches (internal, both sides of the motherboard tray)
- Power supply: 1x standard ATX (optional)
- Expansion Slots: 7
- I / O panel:
2x USB 3.0 (internal connection)
1x each HD Audio In / Out - Maximum graphics card length: 410 mm
- Maximum CPU cooler height: 160 mm
- Maximum network part length: 210 mm
- Insulation (pre-installed):
1x Right side panel
1x Left side panel
1x Rear panel (center)
1x Cover (pre-positioned)
1x Front panel (pre-positioned) - Insulation (enclosed):
1x floor
1x back (top)
