Toote informatsioon
Toote kirjeldus inglise keeles:

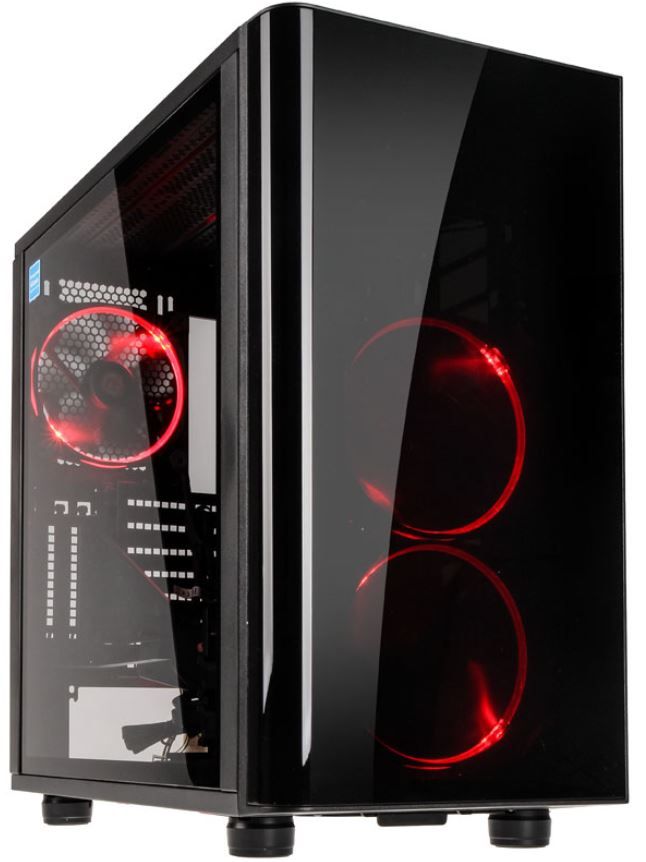

Model View 31 TG RGB
P/N CA-1H8-00M1WN-01
Case Type Mid Tower
Dimension (H x W x D) 497 x 250 x 511 mm
(19.5 x 9.8 x 20.1 inch)
Net Weight 10.7 kg / 23.6 lb
Side Panel 4mm Tempered Glass x 2 (Left & Right)
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
140 x 140 x 25 mm Riing RGB fan (1400rpm, 28dBA) x 2
Rear (exhaust) :
140 x 140 x 25 mm Riing RGB fan (1400rpm, 28dBA)
Drive Bays -Accessible
-Hidden :
3 x 3.5’’ or 2.5’’ (HDD Cage)
Expansion Slots 8 + 2
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
Fan Support Front:
3 x 120mm , 2 x 140mm , 1 x 200mm
Top:
3 x 120mm , 3 x 140mm , 2 x 200mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
2 x 120mm , 2 x 140mm
Radiator Support Front:
1 x 360mm , 1 x 280mm
Top:
1 x 360mm , 1 x 280mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
1 x 120mm , 1 x 140mm
Clearance CPU cooler height limitation:
180mm
VGA length limitation:
278mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation:
180mm (With One Bottom Fan)
220mm (Without Bottom Fan)
