Toote informatsioon
Üldnäitajad
Toote tüüp
Kaubamärk
Mudel

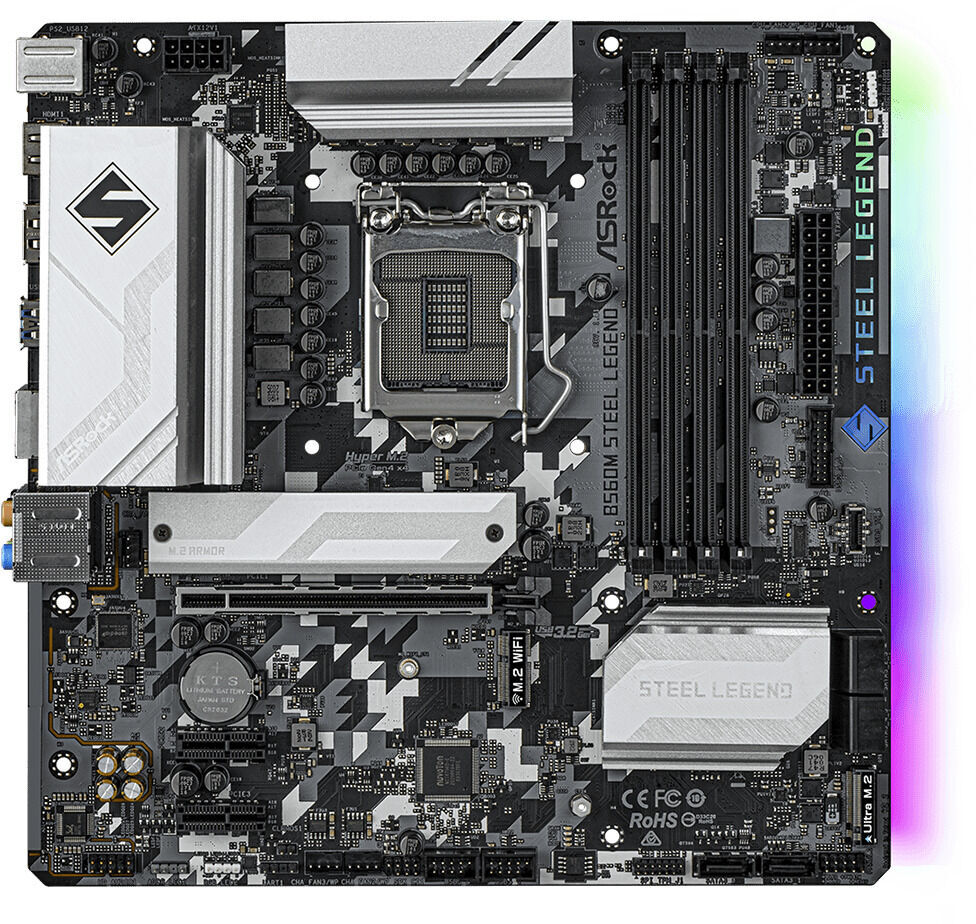

B560M Steel Legend
Kiibistik (chipset)
Emaplaadi mõõtmed
Pikkus
244 mm
Laius
244 mm
Plaadi suurus
Protsessor
Protsessori tüüp
Protsessori pesa tüüp
Operatiivmälu
Operatiivmälu pesade kogus
4
Operatiivmälu tüüp
Maksimaalne operatiivmälu maht (RAM)
Operatiivmälu taktikaline sagedus
Audio, video ja võrgukaart
Helikaardi mudel
Realtek ALC897
Võrgukaart
Realtek Dragon RTL8125BG
nVidia SLI
Ei
nVidia SLI
Ei
Kõvaketa ja optilise seadme ühendus
SATA 3 pesad
6
Laienduspesad
PCI Express 1X konnektorid
2
PCI Express 16X konnektorid
1
PCI ühendused
0
Tagapaneeli ühendused
USB 2.0 liideste arv
2
USB 3.x liideste arv
4
HDMI-pistikupesade arv
1
DisplayPort konnektorid
1
PS/2 ühendus
1
Lisaks
Pretensiooni esitamise õigus eraklientidele
24 kuud
Täiendav info
ASRock USB 3.2 Gen2. - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s). ASRock Super Alloy. - XXL Aluminum Alloy Heatsink. - Premium 60A Power Choke. - 50A Dr.MOS. - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors). - Matte Black PCB. - High Density Glass Fabric PCB. 2.5G LAN. ASRock Steel Slot. ASRock Full Coverage M.2 Heatsink. ASRock Hyper M.2 (PCIe Gen4x4). ASRock POST Status Checker (PSC). ASRock Full Spike Protection (for all USB, Audio, LAN Ports). ASRock Live Update & APP Shop
Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid
Toote värv võib erineda fotol näidatust.
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.Style In DetailsFeaturing sturdy components as well as more elaborately styled piecesDr. MOSDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.Premium 60A Power ChokeCompared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.6 Layer PCBThe 6 Layer PCB comes with 3 sets of copper inner layers, providing stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!PCIe 4.0 High Speed M.2 SolutionThis motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.Dragon 2.5 Gb/s LANThe intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.RULE YOUR OWN LIGHTING WAY - POLYCHROME RGBASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.M.2 (KEY E) For WiFiBesides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.*Wi-Fi module is not included.Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.Post Status CheckerAn easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.XXL Aluminum Alloy HeatsinkExtra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.Premium 60A Power ChokeCompared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.Nichicon 12K Black CapsSupreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.Dr. MOSDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.Water Pump HeaderThis is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.Full Spike ProtectionSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.Live Update & APP ShopASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
