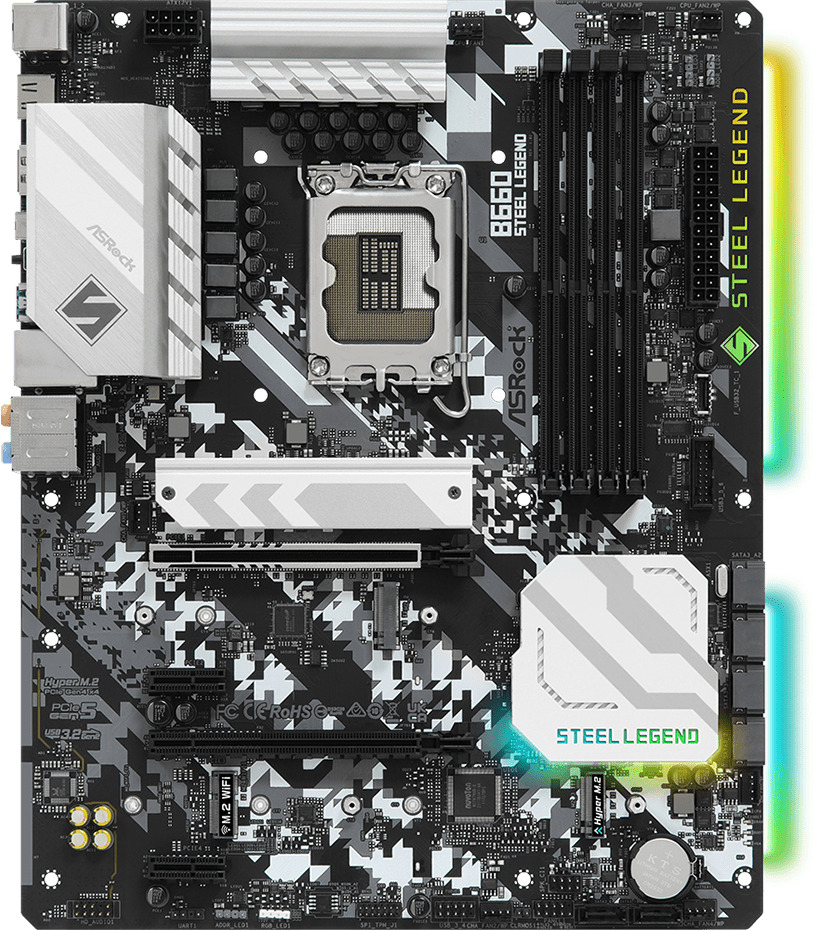

Name: Emaplaat ASRock B660 Steel Legend
Brand: ASRock
Price: 196.5 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

ASRock

Mudel

B660 Steel Legend

Kiibistik (chipset)

Intel® B660

Emaplaadi mõõtmed

Pikkus

305 mm

Laius

244 mm

Plaadi suurus

ATX

Protsessor

Protsessori tüüp

Intel

Protsessori pesa tüüp

LGA 1700

Protsessori pesade arv

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

128 GB

Operatiivmälu taktikaline sagedus

5333+ МHz (O.C.)

Audio, video ja võrgukaart

Videokaardi mudel

Intel Xe

Helikaardi mudel

Realtek ALC897

Võrgukaart

Dragon RTL8125BG 2.5 Gigabit

nVidia SLI

Kõvaketa ja optilise seadme ühendus

SATA 3 pesad

M.2 konnektorite kogus

Laienduspesad

PCI Express 1X konnektorid

PCI Express 16X konnektorid

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

Ethernet LAN (RJ-45) pistikupesa

Jah

D-Sub konnektorid

DVI konnektorid

HDMI-pistikupesade arv

DisplayPort konnektorid

PS/2 ühendus

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Base Frequency Boost (BFB) Technology
BFB Technology allow the use of increasing TDP to enjoy the base frequency boost with the hidden power of processors with users' non K series CPUs and ASRock’s selected 600 series motherboards

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
