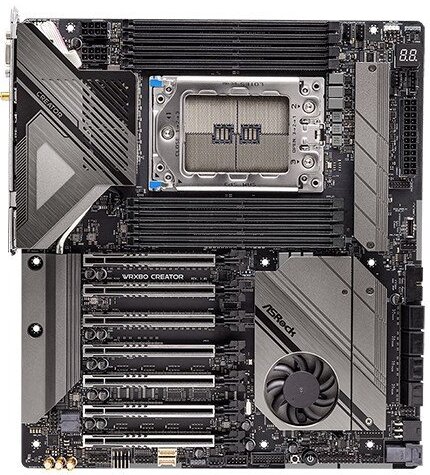

Name: Emaplaat ASRock WRX80 Creator
Brand: ASRock
Price: 1289 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

ASRock

Mudel

WRX80 Creator

Kiibistik (chipset)

AMD® WRX80

Emaplaadi mõõtmed

Pikkus

305 mm

Laius

272 mm

Plaadi suurus

E-ATX

Protsessor

Protsessori tüüp

AMD

Protsessori pesa tüüp

sWRX8

Protsessori pesade arv

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

2048 GB

Operatiivmälu taktikaline sagedus

2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 МHz

Audio, video ja võrgukaart

Videokaardi mudel

Aspeed AST2500

Helikaardi mudel

Realtek ALC4050H+ALC1220

Võrgukaart

100/1000/2500/5000/10000

nVidia SLI

Jah

nVidia SLI

Kõvaketa ja optilise seadme ühendus

SATA 3 pesad

M.2 konnektorite kogus

Laienduspesad

PCI Express 16X konnektorid

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

Ethernet LAN (RJ-45) pistikupesa

Jah

D-Sub konnektorid

DVI konnektorid

HDMI-pistikupesade arv

DisplayPort konnektorid

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Optimized VRM Design
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Optimized VRM Design
It is equipped with a composite VRM heatsink combining dual fans, aluminum fin array and heat pipe for maximum heat dissipation.

PCIe Gen4 with Surface Mount Technology
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 4.0 standard.

5 x PCIe Gen4 x16
With AMD Ryzen™ Threadripper™ PRO processors, ASRock WRX80 Creator supports 5 full speed PCIe gen4 x16 slots, deliver all the performance of PCIe 4.0 to your GPU and add-on cards. Fullfill all the professional design, deep learning, simulation and rendering applications.

Thunderbolt Technology
Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Please refer to Intel “” page for more detail.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the accessories to create their own unique lighting effects
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Dual 10GbE LAN
equipped with the latest 10GbE controller. The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. It offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.

Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
*The availability of Wi-Fi 6E (6GHz) may vary between different countries.
Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.

A 6GHz compatible router is required for 6E functionality.
Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Aspeed AST2500 BMC Controller
AST2500 provides customer the best performance server management solution. In additional to the advanced BMC(Baseboard Management Controller) features, the on chip PCIe 2D VGA provides server systems with local display capability without adding extra cost for VGA add-on card. The embedded ARM11 and DDR4 1600Mbps meet the increasing performance requirements of the server system.
