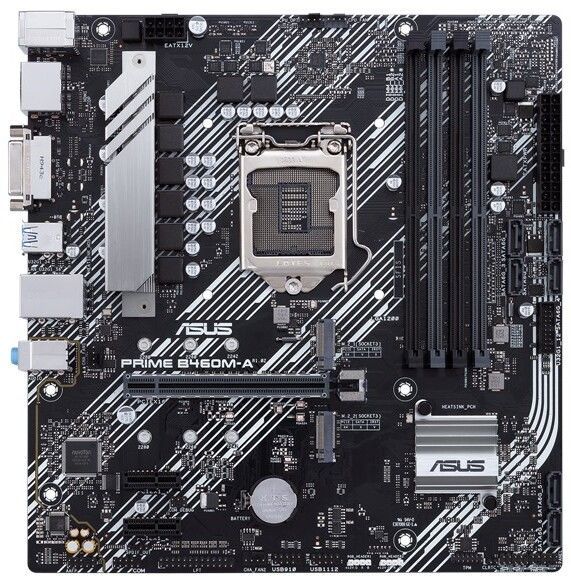

Name: Emaplaat Asus PRIME B460M-A
Brand: Asus
Price: 119 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

Asus

Mudel

PRIME B460M-A

Kiibistik (chipset)

Intel® B460

Emaplaadi mõõtmed

Pikkus

234 mm

Laius

244 mm

Plaadi suurus

Micro-ATX

Protsessor

Protsessori tüüp

Intel

Protsessori pesa tüüp

LGA 1200

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

128 GB

Operatiivmälu taktikaline sagedus

2800 MHz (O.C.)

Audio, video ja võrgukaart

Helikaardi mudel

Realtek ALC887

Võrgukaart

Realtek RTL8111H

nVidia SLI

Kõvaketa ja optilise seadme ühendus

SATA 3 pesad

Laienduspesad

PCI Express 1X konnektorid

PCI Express 16X konnektorid

PCI ühendused

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

D-Sub konnektorid

DVI konnektorid

HDMI-pistikupesade arv

DisplayPort konnektorid

PS/2 ühendus

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Täiendav info

ASUS 5X PROTECTION III. - ASUS DIGI+ VRM. - ASUS LANGuard. - ASUS Overvoltage Protection. - ASUS Safeslot. - ASUS Stainless-Steel Back I/O. ASUS Q-Design. - ASUS Q-DIMM. ASUS Sync. - Standard RGB header(s)

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Tootekirjeldus inglise keeles:

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B460 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling Controls

PRIME 400 Series motherboards offer comprehensive control over system fans, via the included Fan Expert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Back to Tune It Your Way

Cool to the Core

Prime B460 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Prime B460 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources
Smart Protection
4-Pin PWM/DC Fan

Each header can be set to monitor and react to several thermal sensors, and via Fan Xpert 2+ you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.

Build on a Solid Foundation

Prime B460 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A B460 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

ASUS OptiMem

Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Top layer – ground ring to prevent lateral interference

ASUS OptiMem benefits:

Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin

Motherboards with OptiMem technology were tested with Synopsys HSPICE simulation software

Back to Build on a Solid Foundation

Little Things Make a Big Difference

Prime B460 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
