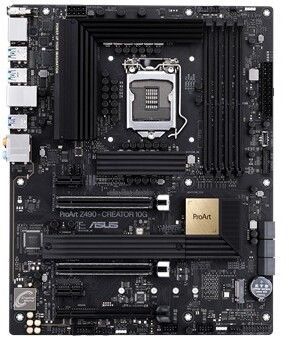

Name: Emaplaat Asus ProArt Z490-CREATOR
Brand: Asus
Price: 319.02 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

Asus

Mudel

ProArt Z490-CREATOR

Kiibistik (chipset)

Intel® Z490

Emaplaadi mõõtmed

Pikkus

234 mm

Laius

305 mm

Plaadi suurus

ATX

Protsessor

Protsessori tüüp

Intel

Protsessori pesa tüüp

LGA 1200

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

128 GB

Operatiivmälu taktikaline sagedus

4600+ MHz (O.C.)

Audio, video ja võrgukaart

Helikaardi mudel

Realtek ALC S1220A

Võrgukaart

Intel I225-V

nVidia SLI

Jah

nVidia SLI

Kõvaketa ja optilise seadme ühendus

SATA 3 pesad

Laienduspesad

PCI Express 1X konnektorid

PCI Express 4X konnektorid

PCI Express 16X konnektorid

PCI ühendused

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

Ethernet LAN (RJ-45) pistikupesa

D-Sub konnektorid

DVI konnektorid

HDMI-pistikupesade arv

DisplayPort konnektorid

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Täiendav info

ASUS 5X PROTECTION III. - ASUS DIGI+ VRM (- Digital power design with Dr. MOS). - ASUS Enhanced DRAM Overcurrent Protection. - ASUS ESD Guards. - ASUS LANGuard. - ASUS Overvoltage Protection. - ASUS SafeSlot Core+. - ASUS Stainless-Steel Back I/O. ASUS Q-Design. - ASUS Q-DIMM. - ASUS Q-LED. - ASUS Q-Shield. - ASUS Q-Slot. ASUS Thermal Solution. - Aluminum heatsink design. ASUS EZ DIY. - Procool. - SafeSlot. AURA Sync. - Standard RGB headers. - Addressable Gen 2 RGB header(s). - Addressable Gen 2 RGB header

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Tootekirjeldus inglise keeles:

Onboard 2.5G Intel® Ethernet and optional 10G Ethernet card are both provided to boost cloud- and internet-based communication for accelerated workflow. A comprehensive set of high-performance I/O ports — including two Thunderbolt™ 3 Type-C ports — enable quick data transfer speeds and extensive storage options with flexible, hassle-free connectivity.

Dual Thunderbolt™ 3 Type-C Ports
Two Thunderbolt 3 Type-C ports deliver up to 40 Gbps of aggregate interface bandwidth for quickly completing tasks that involve data transfer.
HYPER 10G LAN Card
Designed to meet the high standards of content creators and power users, HYPER 10G LAN card is up to 10 times faster than standard Gigabit Ethernet.
Onboard 2.5G Intel® Ethernet
Featuring Intel® I225-V Ethernet, you can take advantage of the 2.5 Gigabit bandwidth to smoothly stream high-resolution videos and enjoy faster file transfers.
Dual M.2 slots
One M.2 slot supports SATA and PCIe® 3.0 x4 modes, and the other supports PCIe 3.0 x4 for NVMe, offering up to 32 Gbps data-transfer speeds and flexible M.2 interfaces.

INTELLIGENT OPTIMIZATION ASUS ProArt Z490-CREATOR 10G offers simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling, in addition to CreationFirst software, which prioritizes and optimizes your network traffic for faster, lag-free online work.

AI Overclocking
Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.
AI Cooling
AI Cooling automatically manages and controls motherboard connected fans, ensuring the most efficient settings depending on the current system load and temperature.
Network Optimization
CreationFirst is ASUS-exclusive network-optimization software that helps you streamline your workflow.
ProArt Creator Hub
ProArt Creator Hub is a centralized software that allows you to monitor and control any connected ProArt series products

POWERFUL PERFORMANCE
FOR UNSTOPPABLE CREATIVITY Creativity demands performance. An ASUS ProArt Z490-CREATOR 10G delivers excellent performance — no matter the task – to empower you to be productive and bring your ideas to life.

Robust Power Design
Digital power control and an array of DrMOS power stages ensure that ASUS ProArt Z490-CREATOR 10G has the strength to handle powerful Intel CPUs.
Multi-GPU Support
ASUS ProArt Z490-CREATOR 10G features three PCIe® 3.0 x16 slots for high-powered graphics cards such as NVIDIA® Quadro®, enabling enhanced performance in professional design, modeling and simulation and rendering applications.
Memory Go Faster
ASUS OptiMem II memory trace layout improves memory stability and compatibility, allows lower memory latencies at equivalent voltages and increases memory frequency margin.

TRUSTED STABILITY FOR RELIABILITY ASUS ProArt Z490-CREATOR 10G was engineered and rigorously tested to ensure that it empowers creativity by offering superior quality, stability and compatibility.

24/7 Reliability
Optimized for around-the-clock operations, ASUS ProArt Z490-CREATOR 10G is tested under temperatures of up to 45° C and humidity of up to 80% in order to ensure it can thrive in different environments.
Solid Compatibility Validation
ASUS ProArt Z490-CREATOR 10G has been extensively tested and validated under various environments and applications for compatibility and reliability.
Protect your Graphics Card
SafeSlot is a PCIe® slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.

FOR WORK AND PLAY ASUS ProArt Z490-CREATOR 10G motherboard enables productivity while also providing flawless audio for entertainment and the freedom to enjoy Aura Sync RGB lighting.

Crystal Sound 3
High-quality components and layered design deliver flawless, immersive audio for entertainment.
Addressable RGB Header
The addressable Gen 2 RGB header, which can detect the number of LEDs on second-generation addressable RGB devices, allows software to automatically tailor lighting effects to specific devices. The header also offers backward-compatibility with existing Aura RGB gear.
