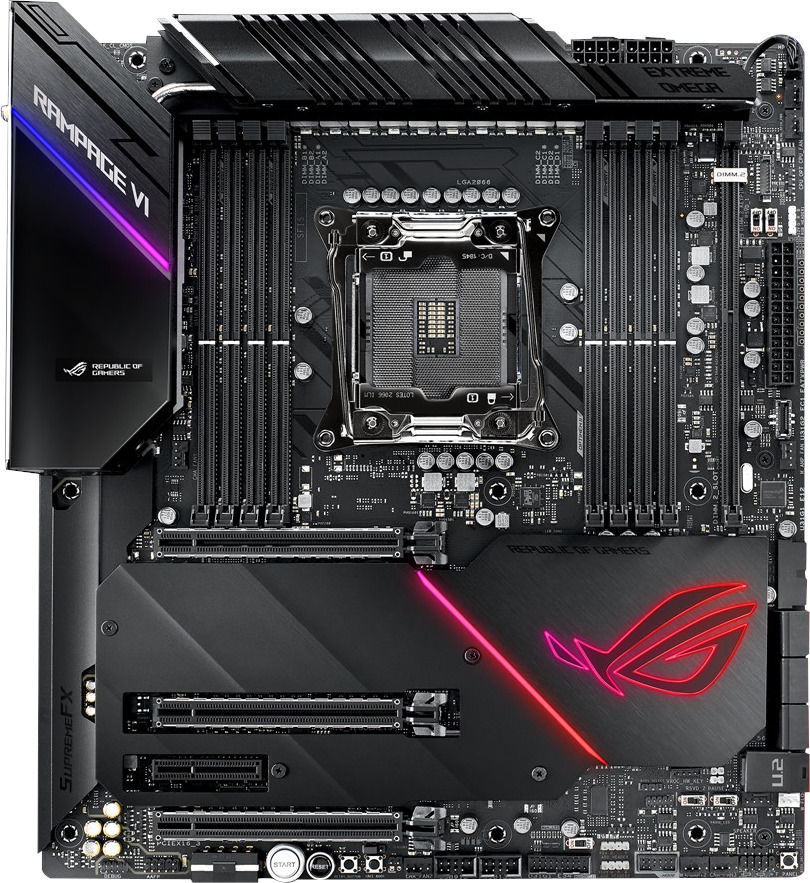

Emaplaat Asus ROG Rampage VI Extreme OMEGA

Kaubamärk

Asus

Mudel

ROG Rampage VI Extreme OMEGA

Kiibistik (chipset)

Intel® X299

Laius

305 mm

Plaadi suurus

ATX

Protsessori pesa tüüp

LGA 2066

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

128 GB

Operatiivmälu taktikaline sagedus

2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.)

Võrgukaart

Intel® I219V

nVidia SLI

Jah

nVidia SLI

Jah

PCI Express 16X konnektorid

3

PCI ühendused

0

Täiendav info

2 x USB 3.1 Gen 2 Type-A porti. 1 x USB Type-C port. 10 x USB 3.1 Gen 1 porti. Clear CMOS button. Extreme Engine Digi+ : - MicroFine Alloy Chokes. - 10K Black Metallic Capacitors. - IR3553 PowIRStage® MOSFETs. ROG Extreme OC kit : - ReTry button. - Safe Boot button. - Start button. - Reset button. - Slow Mode. - LN2 Mode. - MemOK! II Button. ProbeIt. ROG Exclusive Software. - Mem Tweakit. - RAMCache III. - RAMDisk. - CPU-Z. - GameFirst V. - Sonic Studio III + Sonic Studio Link. - Sonic Radar III. - Overwolf. ROG DIMM.2 module with heatsink. ROG Aluminum heatsink cover. OC Design - ASUS PRO Clock II Technology. ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App. LiveDash OLED. AURA : - Aura Lighting Control. - Aura RGB Strip Headers. - Aura Lighting Effects Synchronization with compatible ASUS ROG devices. - Aura Addressable Strip Header(s). ASUS Exclusive Features : - USB BIOS Flashback. - MemOK! II. - AI Suite 3. - Ai Charger. - Armoury Crate. - Pre-mounted I/O Shield. - ASUS NODE: hardware control interface. - OptiMem II. - Pre- mounted I/O shield. - ASUS C.P.R.(CPU Parameter Recall). - BUPDATER. - BIOS Flashback Button. - Clear CMOS Button. ASUS EZ DIY : - ASUS CrashFree BIOS. - ASUS EZ Flash. ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED). - ASUS Q-Slot. - ASUS Q-DIMM. - ASUS Q-Connector
