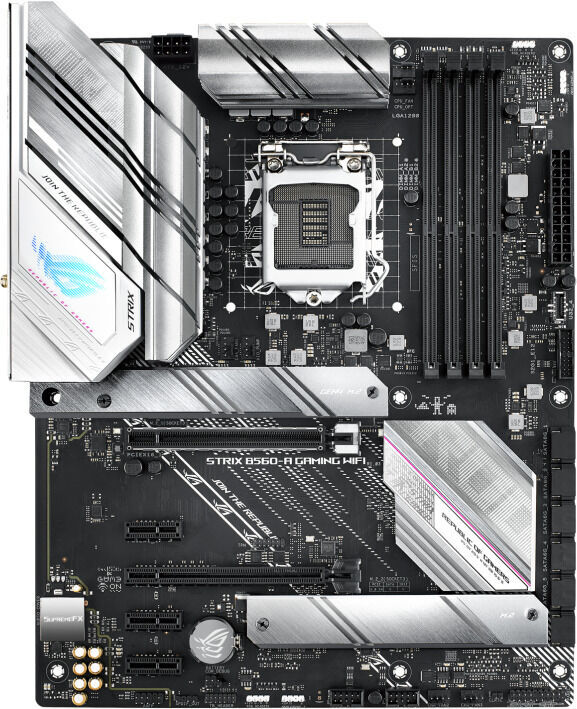

Name: Emaplaat Asus ROG STRIX B560-A GAMING WIFI
Brand: Asus
Price: 232.9 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

Asus

Mudel

ROG STRIX B560-A GAMING WIFI

Kiibistik (chipset)

Intel® B560

Emaplaadi mõõtmed

Pikkus

244 mm

Laius

305 mm

Plaadi suurus

ATX

Protsessor

Protsessori tüüp

Intel

Protsessori pesa tüüp

LGA 1200

Operatiivmälu

Operatiivmälu tüüp

DDR4

Operatiivmälu taktikaline sagedus

2800 MHz (O.C.)

Audio, video ja võrgukaart

Helikaardi mudel

SupremeFX

Võrgukaart

Realtek 2.5GbE

nVidia SLI

Kõvaketa ja optilise seadme ühendus

SATA 3 pesad

Laienduspesad

PCI Express 1X konnektorid

PCI Express 16X konnektorid

PCI ühendused

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

HDMI-pistikupesade arv

DisplayPort konnektorid

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Täiendav info

Extreme Engine Digi+. - 5K Black Metallic Capacitors. ASUS Q-Design. - M.2 Q-Latch. - Q-DIMM. - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]). - Q-Slot. ASUS Thermal Solution. - M.2 heatsink. ASUS EZ DIY. - BIOS FlashBack™ button. - BIOS FlashBack™ LED. - ProCool. - Pre-mounted I/O shield. - SafeSlot. AURA Sync. - AURA RGB header(s). - Addressable Gen 2 RGB header(s)

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

ROG Strix B560-A Gaming WiFi delivers everything you need to create a well balanced gaming PC utilizing 11th Generation Intel® Core™ processors. It’s ready for the latest graphics cards, storage, and networking standards, and further boosted by AI enhancements more commonly found on higher end counterparts. That performance is matched by a striking silver-white aesthetic with complementary RGB lighting to give you a build that stands out in every way.POTENTIAL, REALIZEDRobust power delivery and comprehensive cooling features ensure exceptional performance, while AI-powered enhancements optimize network settings and improve in-game communication — all to help you maximize the full potential of your rig.TEAMED POWER STAGES8+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.ALLOY CHOKES AND CAPACITORSSuperior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.PROCOOL POWER CONNECTORThe ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.DIGI+ POWER CONTROLThe built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.SIX-LAYER PCBThe PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.ADVANCED GAMING IMMERSIONThe latest connectivity features and audio enhancements propel ROG Strix B560-A gaming performance to the next level.OPTIMEM IIROG Strix B560-A Gaming WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.PCIE 4.0-READYROG Strix B560-A Gaming WiFi features two onboard M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors.PLAY YOUR OWN STYLEPair ROG Strix B560-A Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.UNDENIABLY ROG STRIXA striking silver white finish and contrasting Aura-RGB-illuminated glitch-effect logo give ROG Strix B560-A Gaming WiFi a bold aesthetic that immediately catches the eye. Parallel strakes and dotted text on the aluminum I/O shroud, M.2 and PCH heatsinks echo the ROG Strix fundamentals of speed, diversity and attitude to tie the whole theme together.ROG GIVES YOU MOREROG-exclusive firmware and software utilities deliver intuitive tuning options that help get the most from your gaming build. To further aid system setup and performance tuning, the highly acclaimed AIDA64 utility has also been added to the mix.UEFI BIOSThe renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
