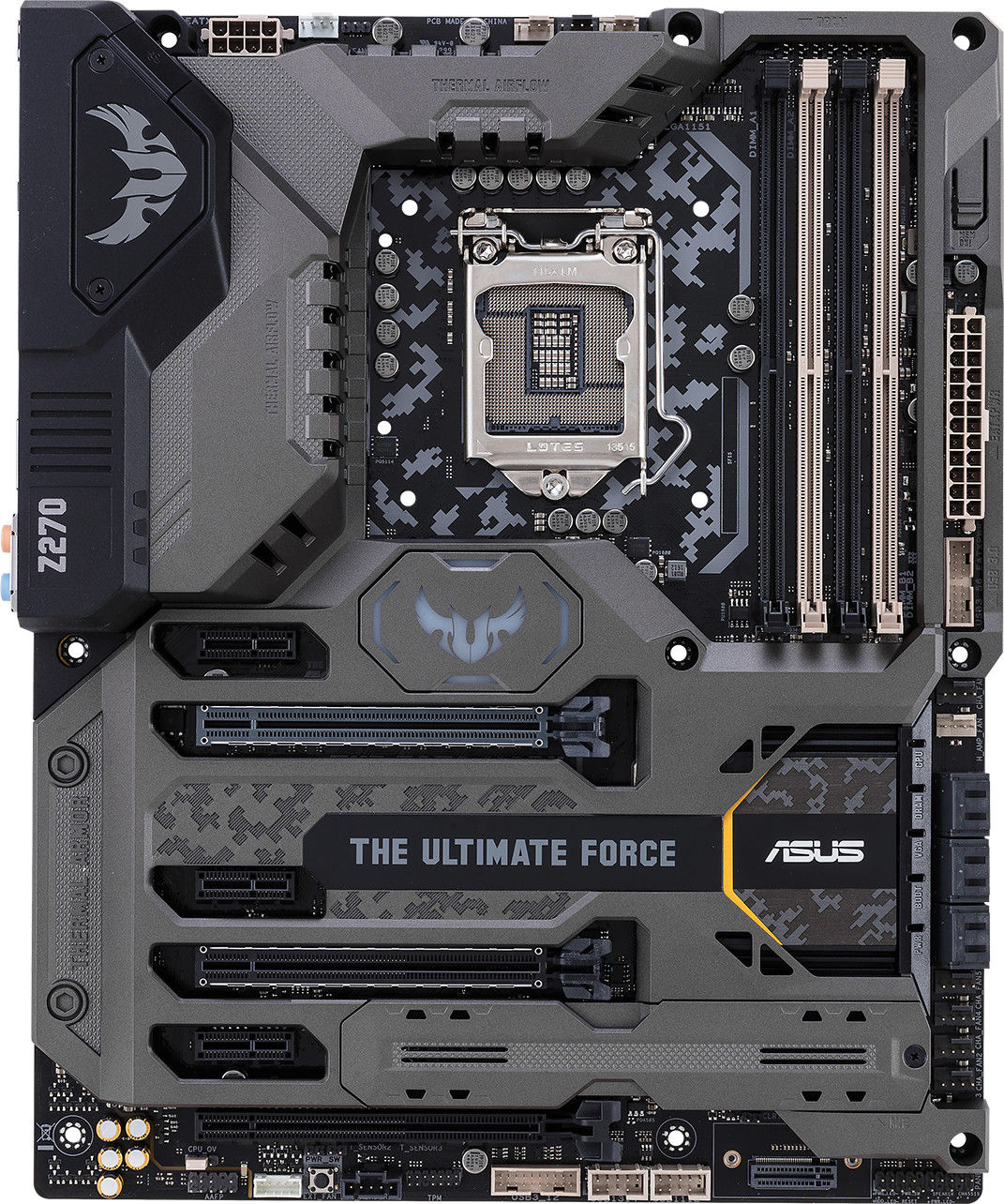

Emaplaat Asus TUF Z270 MARK 1

Kaubamärk

Asus

Mudel

TUF Z270 MARK 1

Kiibistik (chipset)

Intel® Z270 Express

Laius

244 mm

Plaadi suurus

ATX

Protsessori pesa tüüp

LGA 1151

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

64 GB

Operatiivmälu taktikaline sagedus

2133 MHz, 2400 MHz (O.C.), 2666 MHz (O.C.), 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.)

Helikaardi mudel

Realtek ALC S1220A

Võrgukaart

Intel® I219V

nVidia SLI

Jah

nVidia SLI

Jah

PCI Express 4X konnektorid

1

PCI Express 16X konnektorid

2

PCI ühendused

0

USB 3.x liideste arv

2

D-Sub konnektorid

0

DVI konnektorid

0

HDMI-pistikupesade arv

1

DisplayPort konnektorid

1

PS/2 ühendus

0

Täiendav info

1 x USB 3.1 Type-A port. 1 x USB 3.1 Type-C port. OC Design - ASUS PRO Clock Technology. - Full BCLK range for extreme overclocking performance. ASUS TPU : - Auto Tuning. ASUS EPU : - EPU. TUF Features: TUF ENGINE! Power Design : - 8 +4 Digital Phase Power Design. - TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard). - ASUS DIGI+ Power Control Utility. Ultimate COOL! Thermal Solution : - TUF Thermal Armor. - Thermal Radar 2+. - TUF ICe. Safe & Stable! Guardian Angel : "We Got Your Back!" Shape Force. - Dust Defenders. - TUF Fortifier. - TUF ESD Guards 2. - TUF LANGuard. AURA : - Aura Lighting Control. - Aura Lighting Effects Synchronization with compatible ASUS ROG devices. ASUS Особенности: - USB BIOS Flashback. - MemOK! - AI Suite 3. - Ai Charger. - Onboard Button : Power. - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface. - Turbo LAN. - PC Cleaner. File Transfer. - Cloud GO! - File Transfer. ASUS EZ DIY : - Precision Tweaker 2. - ASUS O.C. Tuner. - ASUS O.C. Profile. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 3. - ASUS USB BIOS Flashback. - ASUS UEFI BIOS EZ Mode. - Multi-language BIOS. CPU Installation Tool. - Three-step simplicity and safety. ASUS Q-Design : - ASUS Q-Shield. - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED). - ASUS Q-Slot. - ASUS Q-DIMM. - ASUS Q-Connector. Special Memory O.C. Design. Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall). Turbo APP. M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds).
