Name: Emaplaat Gigabyte WRX80-SU8-IPMI
Brand: Gigabyte
Price: 994.86 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

Gigabyte

Mudel

WRX80-SU8-IPMI

Kiibistik (chipset)

AMD® WRX80

Emaplaadi mõõtmed

Pikkus

305 mm

Laius

267 mm

Plaadi suurus

ATX

Protsessor

Protsessori tüüp

AMD

Protsessori pesa tüüp

sWRX8

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

1024 GB

Audio, video ja võrgukaart

Helikaardi mudel

Realtek® ALC1220-VB

Võrgukaart

Dual Intel® X550 10GbE LAN

nVidia SLI

Kõvaketa ja optilise seadme ühendus

SATA 3 pesad

M.2 konnektorite kogus

Laienduspesad

PCI Express 4X konnektorid

PCI Express 16X konnektorid

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

Ethernet LAN (RJ-45) pistikupesa

Jah

D-Sub konnektorid

DVI konnektorid

HDMI-pistikupesade arv

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

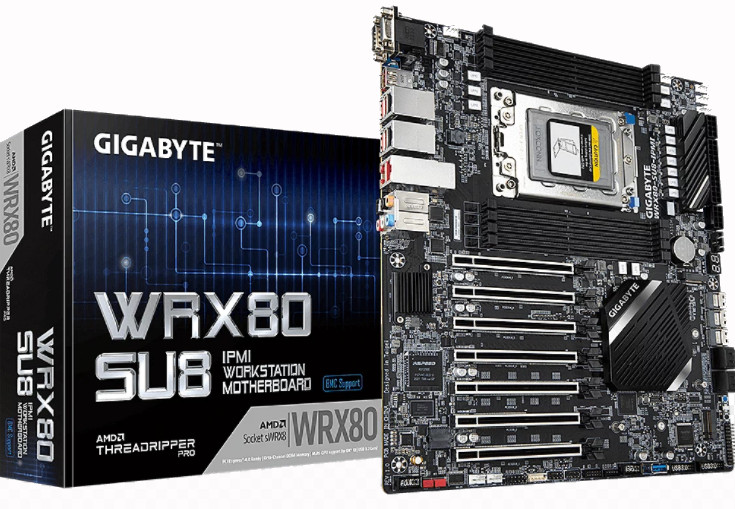

WRX80-SU8-IPMI, AMD WRX80 Mainboard - Socket sWRX8

The Gigabyte WRX80-SU8-IPMI is one of the motherboards for AMD's Ryzen Threadripper Pro CPUs and offers a plethora of features for the desktop workstation platform. The combination of the sWRX8 socket and the WRX80 chipset is required for the "prosumer" processors of the Threadripper Pro series in order to support their numerous business and professional functions.

The Gigabyte WRX80-SU8-IPMI at a glance:
7x PCIe 4.0 x16 for high-end graphics cards
2x M.2 and 3x slimSAS for high-speed data storage
Internal: 1x USB 3.1 Type C, 1x USB 3.0 socket, 2x USB 3.0 and 2x USB 2.0
External: 1x USB 3.1 Type C and 5x USB 3.1 Type A
2x Dual LAN with 2x 10 Gigabit (Intel X550-AT2) and 2x Gigabit LAN
The Gigabyte WRX80-SU8-IPMI in detail:
Other important features of the Gigabyte WRX80-SU8-IPMI motherboard include the two LAN ports with 10 Gbit/s (Intel X550-AT2). When it comes to audio, the manufacturer relies on the Realtek ALC1220-VB audio codec . This provides a total of five 3.5 millimeter jack sockets and an optical S/PDIF output on the I/O panel.

The mainboard has seven USB 3.1 ports (USB 3.2 Gen 2). These come as an internal Key-A header and in the form of a USB Type-C socket and achieve a maximum data transfer rate of 10 Gbit/s. The five other USB 3.1 ports are located on the I/O panel.
Expansion slots and connections for drives
The E-ATX mainboard provides seven PCIe x16 slots in the 4.0 standard for plug-in and expansion cards . Four SATA 6G connections (incl. RAID support) and two M.2 slots , which are each connected directly to the CPU with four PCI Express 4.0 lanes, are provided for connecting data carriers such as SSDs and hard drives . In addition to SATA, the M.2 ports also support the advanced NVM Express protocol, which has been specially optimized for highly parallelized data carrier access on modern PCIe SSDs.
