Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

MSI

Mudel

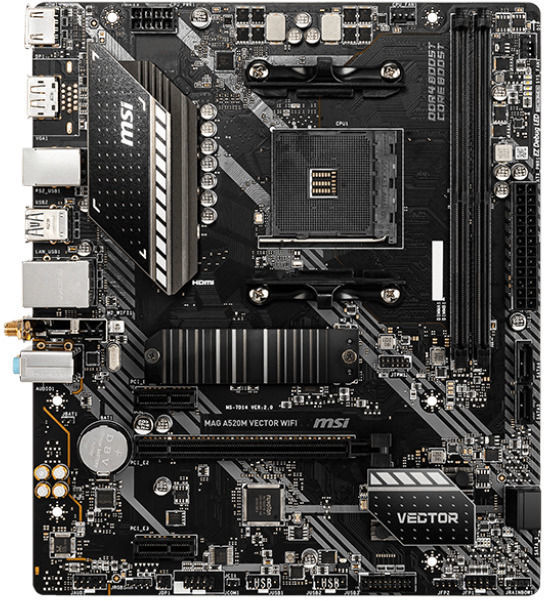

MAG A520M VECTOR WIFI

Kiibistik (chipset)

AMD® A520

Emaplaadi mõõtmed

Pikkus

210 mm

Laius

244 mm

Plaadi suurus

Micro-ATX

Protsessor

Protsessori tüüp

AMD

Protsessori pesa tüüp

AM4

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

64 GB

Operatiivmälu taktikaline sagedus

2800 MHz (O.C.), 3000 MHz, 3066 МHz, 3200 МHz

Audio, video ja võrgukaart

Helikaardi mudel

Realtek ALC892

Võrgukaart

Realtek RTL8111H

nVidia SLI

Kõvaketa ja optilise seadme ühendus

SATA 3 pesad

Laienduspesad

PCI Express 1X konnektorid

PCI Express 16X konnektorid

PCI ühendused

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

HDMI-pistikupesade arv

DisplayPort konnektorid

PS/2 ühendus

Lisaks

Täiendav info

M.2 Shield Frozr. Core Boost Technology. DDR4 Boost. Turbo M.2

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Conquer the BattlefieldThe MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.PREMIUM HARDWARE DESIGNWith years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCEWith more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.ENHANCED PERFORMANCEHigh performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.OVERVIEWFAST AND FUTURE-READY STORAGEMSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.CONNECTIVITYMSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.LAN MANAGERNEXT-GEN INTEL® WI-FI AC & BLUETOOTHThis next-generation Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.
