Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

MSI

Mudel

Mag B760M Mortar WIFI

Kiibistik (chipset)

Intel® B760M

Emaplaadi mõõtmed

Pikkus

244 mm

Laius

244 mm

Plaadi suurus

Micro-ATX

Protsessor

Protsessori tüüp

Intel

Protsessori pesa tüüp

LGA 1700

Protsessori pesade arv

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR5

Maksimaalne operatiivmälu maht (RAM)

192 GB

Operatiivmälu taktikaline sagedus

4800 MHz, 5000 MHz, 5200 МHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000+ MHz (O.C.)

Audio, video ja võrgukaart

Helikaardi mudel

Realtek ALC897

Võrgukaart

Realtek® 2.5Gbps LAN. 802.11 a/ b/ g/ n/ ac/ ax

nVidia SLI

Laienduspesad

PCI Express 1X konnektorid

PCI Express 4X konnektorid

PCI Express 16X konnektorid

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

Ethernet LAN (RJ-45) pistikupesa

Jah

D-Sub konnektorid

DVI konnektorid

HDMI-pistikupesade arv

DisplayPort konnektorid

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper
MOS and helps dissipate the heat.
7W/mK Thermal Pad &
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

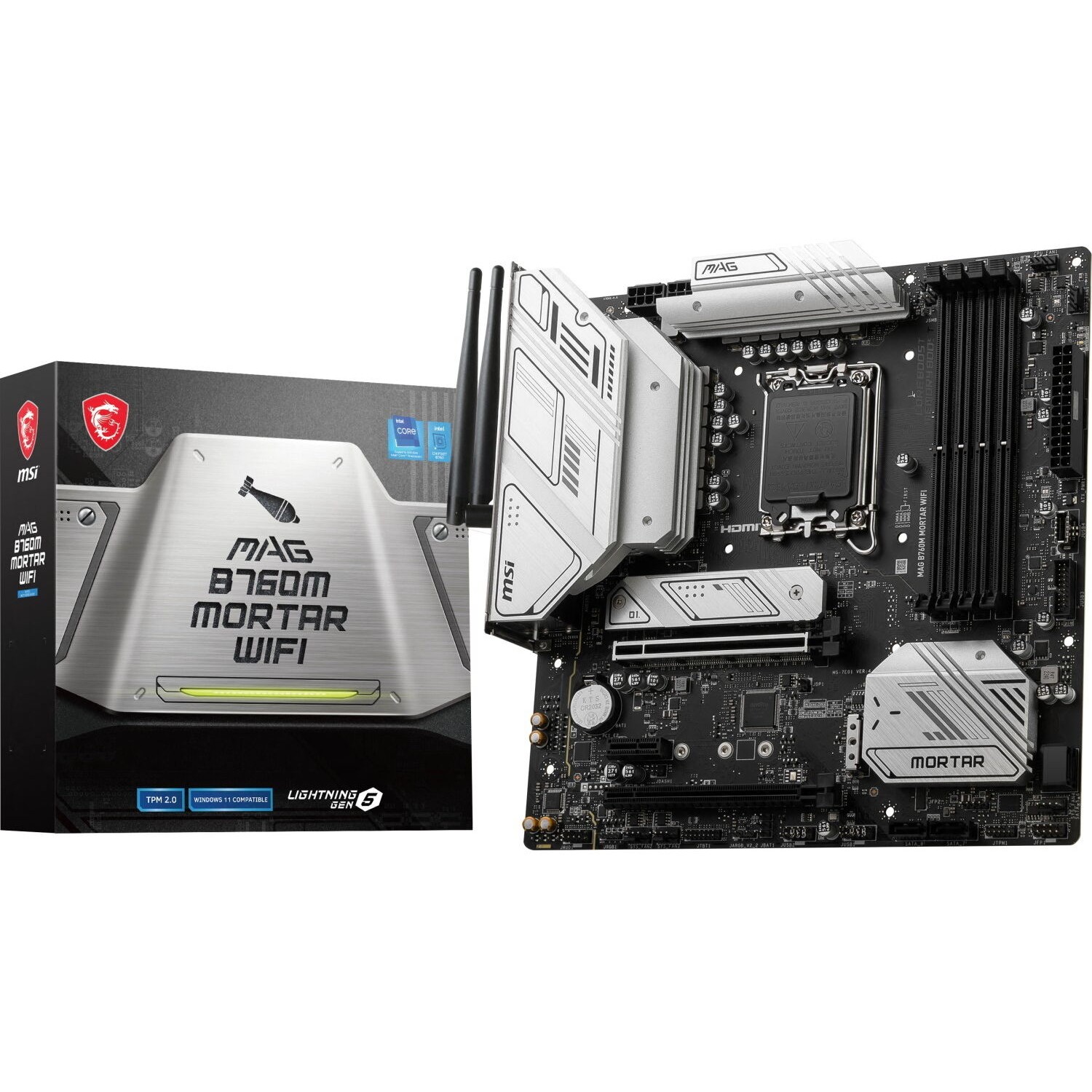

MAG B760M MORTAR WIFI
Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 7000+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Audio Boost: Reward your ears with studio grade sound
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
