Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

MSI

Mudel

MEG X570S ACE MAX

Kiibistik (chipset)

AMD® X570

Emaplaadi mõõtmed

Pikkus

305 mm

Laius

244 mm

Plaadi suurus

ATX

Protsessor

Protsessori tüüp

AMD

Protsessori pesa tüüp

AM4

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR4

Maksimaalne operatiivmälu maht (RAM)

128 GB

Operatiivmälu taktikaline sagedus

3200 МHz

Audio, video ja võrgukaart

Helikaardi mudel

Realtek ALC4082

Võrgukaart

LAN network

nVidia SLI

Kõvaketa ja optilise seadme ühendus

SATA 3 pesad

M.2 konnektorite kogus

Laienduspesad

PCI Express 1X konnektorid

PCI Express 16X konnektorid

PCI ühendused

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

Ethernet LAN (RJ-45) pistikupesa

D-Sub konnektorid

DVI konnektorid

HDMI-pistikupesade arv

DisplayPort konnektorid

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

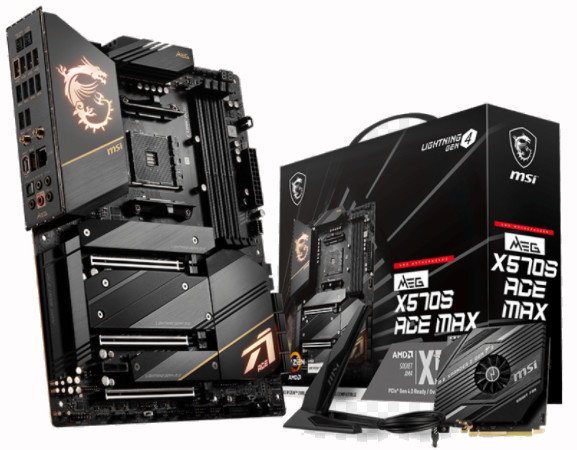

MSI MEG X570S ACE MAX

MEG X570S ACE Max, AMD X570 Mainboard - Socket AM4
The MSI MEG X570S ACE Max is equipped with AMD's X570S high-end chipset, which dispenses with a chipset fan and supports the full feature set of the Ryzen 3000 and 5000 processors (code names: Matisse and Vermeer), everything first of all the PCI Express standard in version 4.0 (PCIe 4.0). With its ATX form factor, the MSI MEG X570S ACE Max fills the mainboard trays in midi towers and larger and offers numerous expansion options in addition to WLAN 6E and 2.5 Gbit LAN.
The features of the MSI MEG X570S ACE Max motherboard at a glance:
3x PCIe 4.0 x16 slots for high-end graphics cards
DDR4 memory up to 3,200 MHz, using RAM-OC up to 5,500 MHz
4x M.2 slots, 2x with PCIe 4.0 x4 and 2x with PCIe 4.0 x4 / SATA connection
USB am I/O-Panel: 4x USB 2.0 / 4x USB 3.0 Typ A / 3x USB 3.1 Typ A und 1x USB 3.2 Typ C
Internal USB ports: 4x USB 2.0 / 4x USB 3.0 / 1x USB 3.1 Type C
A total of 6x 4-pin PWM headers for fans and pumps
Das MSI MEG X570S ACE Max im Detail
The MSI MEG X570S ACE Max is a well-equipped gaming board that, depending on the CPU used, allows the RAM to be overclocked with up to 5,500 MHz. It supports AMD Ryzen processors from the 2000 series with and without an integrated graphics unit. Thanks to a power supply optimized for maximum performance with 6 + 2 real and 12 + 2 virtual phases and the excellent cooling performance, the heavy-duty MSI MEG X570S ACE Max is ideal for overclocking. OC features such as BIOS flashback, BIOS switch or clear CMOS buttons are also part of Bo (a) rd.

This X570S motherboard also offers features such as WLAN 6E including Bluetooth 5.2 (Intel AX210), a 2.5 Gbit LAN port (Realtek 8125B), on-board sound (Realtek ALC4082 audio codec including ESS ES9018 DAC) and numerous internal headers for fans and pumps, including two thermal sensors and a flow sensor. In addition, the mainboard shines with stylish passive coolers including an illuminated MSI logo for the chipset and M.2 slots.
