Toote informatsioon
Üldnäitajad
Toote tüüp
Kaubamärk
Mudel
Meg Z690 Godlike
Kiibistik (chipset)
Emaplaadi mõõtmed
Pikkus
305 mm
Laius
310 mm
Plaadi suurus
Protsessor
Protsessori tüüp
Protsessori pesa tüüp
Protsessori pesade arv
1
Operatiivmälu
Operatiivmälu pesade kogus
4
Operatiivmälu tüüp
Maksimaalne operatiivmälu maht (RAM)
Operatiivmälu taktikaline sagedus
Audio, video ja võrgukaart
Helikaardi mudel
Realtek® ALC4082
Võrgukaart
2.5Gbps: 802.11 a/ b/ g/ n/ ac/ ax
nVidia SLI
Jah
nVidia SLI
Jah
Laienduspesad
PCI Express 4X konnektorid
4
PCI Express 16X konnektorid
2
Tagapaneeli ühendused
USB 2.0 liideste arv
2
USB 3.x liideste arv
6
Ethernet LAN (RJ-45) pistikupesa
Jah
D-Sub konnektorid
0
DVI konnektorid
0
HDMI-pistikupesade arv
0
DisplayPort konnektorid
0
PS/2 ühendus
0
Lisaks
Pretensiooni esitamise õigus eraklientidele
24 kuud
Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid
Toote värv võib erineda fotol näidatust.

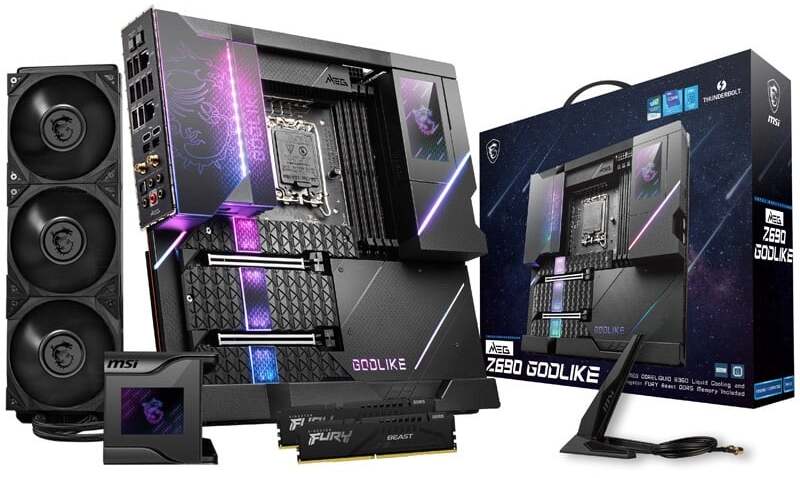

Whether it’s record-breaking overclocking, ultra-customization of ARGB lighting with touch control LCD dashboard, or simply the desire to build the most powerful system imaginable, the MEG Z690 GODLIKE stands unrivaled at the pinnacle of all the Z690 motherboard capabilities.
THE ONE UNIVERSE DESIGN
It is covered in dark, deep, and full aluminum heatsink fashioned with a triangular grid pattern. The illuminating dragon nebula with tempered glass reveals the power with a column of faith and meteor RGB effect. The MEG Z690 GODLIKE symbolizes the endless power of the one universe, ready for every challenge.
Industry's first built-in LCD display on the motherboard.
3.5 inch IPS LCD Panel
Touch Control
Full Color Display
Speaker Function
Magnetic Connection
Customizable with SW
The touch panel allows multi-application control in one finger.
Not satisfied with the onboard operation? The detached mode brings a new way for your PC operation.
1. Detach the M-Vision Dashboard
2. Connect dashboard with dedicated USB port
3. Turn up the M_SW switch and receive an entire new form for your PC operation
LATEST CONNECTIVITY
Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.
Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture.
The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
EXTREME POWER AND THERMAL SOLUTION
The premium cooling solution ensures extreme performance with low temperatures.
Wavy fin design
Cross Heat-pipe
Aluminum Cover
Direct 20+2 Phases with 105A SPS power design are ready to push the latest processors to their limits!
MSI Lightning Gen 5 PCI-E represents the bandwidth of x16 interface to 128GB/s, which is double the speed of the previous generation.
Extreme storage solution with onboard 6x M.2 connectors.
The latest Lightning Gen 5 M.2 connector for the maximum storage performance.
Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
This patent-pending magnetic design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance.
MEG Z690 GODLIKE
Supports 12th/ 13th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
M-Vision Dashboard: Industry's first built-in touchable LCD on the motherboard, not only indicates the status of your gaming rig, but also allows system tuning with touch control.
Extreme Power Design: Direct 20+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
Premium Thermal Module: Wavy fin design, Cross Heat-pipe, 7W/mK thermal pads, and Double-Sided M.2 Shield Frozr ensure the extreme performance with low temperature.
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Sextuple M.2 Connectors: Onboard 6x M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G.
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Full Armor Design: The revolutionary magnetic cover and Chest Plate allow you showing off your PC buil
