Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

MSI

Mudel

MEG Z790 ACE MAX

Kiibistik (chipset)

Intel® Z790

Emaplaadi mõõtmed

Pikkus

305 mm

Laius

244 mm

Plaadi suurus

ATX

Protsessor

Protsessori tüüp

Intel

Protsessori pesa tüüp

LGA 1700

Protsessori pesade arv

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR5

Maksimaalne operatiivmälu maht (RAM)

192 GB

Audio, video ja võrgukaart

Helikaardi mudel

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA

Võrgukaart

2x Intel® 2.5Gbps LAN. 802.11 a/ b/ g/ n/ ac/ ax/ be

Laienduspesad

PCI Express 4X konnektorid

PCI Express 16X konnektorid

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

Ethernet LAN (RJ-45) pistikupesa

Jah

D-Sub konnektorid

DVI konnektorid

HDMI-pistikupesade arv

DisplayPort konnektorid

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

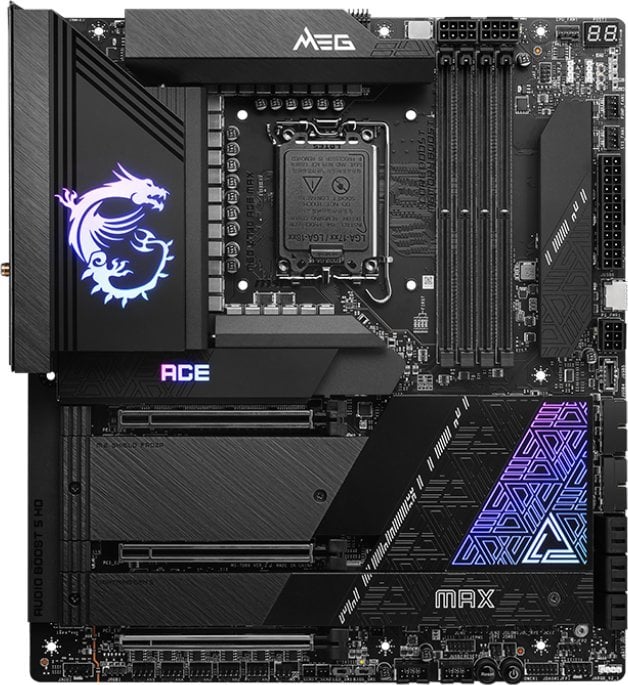

Unleash the power of gaming with MEG Z790 ACE MAX. Boasting premium aesthetics featuring a sleek black finish and silver embellishments, this E-ATX gaming motherboard takes Intel®'s 14th Gen and 13th Gen Core processors to new heights. With exceptional hardware support and durability, it thrives in extreme settings, pushing boundaries in processor overclocking, DDR5 memory, and graphics card (GPU) performance. Elevate your gaming experience with MEG Z790 ACE MAX.

The MEG series is revealed as a legend that represents the ultimate elegance in gaming.
With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.

TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.

Stacked Fin Array Design
Stacked fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.

Aluminum Cover
Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.

Direct Touch Cross Heat-pipe
The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.

Double-sided M.2 Shield Frozr
Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

Aluminum Backplate
The aluminum baseplate cool down the MOSFET temperature with dedicated thermal pads.

7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Enlarged PCH Heatsink
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Dual 2.5G LAN: Onboard dual 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience.
Maximum 5 x M.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery.
DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, EZ Antenna, Smart Button, Pre-installed I/O Shield, Steel Armor
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
