Toote informatsioon
Üldnäitajad
Toote tüüp
Kaubamärk
Mudel

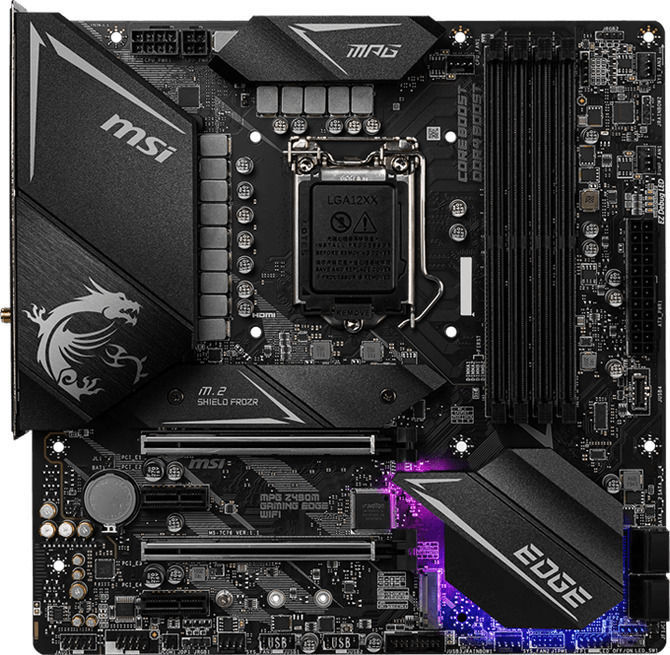

MPG Z490M GAMING EDGE
Kiibistik (chipset)
Emaplaadi mõõtmed
Pikkus
244 mm
Laius
244 mm
Plaadi suurus
Protsessor
Protsessori tüüp
Protsessori pesa tüüp
Operatiivmälu
Operatiivmälu pesade kogus
4
Operatiivmälu tüüp
Maksimaalne operatiivmälu maht (RAM)
Operatiivmälu taktikaline sagedus
Audio, video ja võrgukaart
Helikaardi mudel
Realtek® ALC1220
Võrgukaart
Realtek® RTL8125B
nVidia SLI
Jah
nVidia SLI
Jah
Kõvaketa ja optilise seadme ühendus
SATA 3 pesad
4
Laienduspesad
PCI Express 1X konnektorid
2
PCI Express 16X konnektorid
2
PCI ühendused
0
Tagapaneeli ühendused
USB 2.0 liideste arv
2
USB 3.x liideste arv
4
Ethernet LAN (RJ-45) pistikupesa
Jah
D-Sub konnektorid
0
DVI konnektorid
0
HDMI-pistikupesade arv
1
DisplayPort konnektorid
1
PS/2 ühendus
1
Lisaks
Pretensiooni esitamise õigus eraklientidele
24 kuud
Täiendav info
Intel Wi-Fi 6. PCIe Steel Armor. Core Boost Tehnoloģija. DDR4 Boost. Turbo M.2
Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid
Toote värv võib erineda fotol näidatust.

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

All-metal extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Control watercooling pump speeds for best flow and noise control.
7W/mK thermal pad provides better heat transfer to the heatsink

Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Featuring the TURBO USB 3.2 GEN2 10Gbps, with reversible Type-C connector.
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
Protecting VGA cards against bending and EMI for better performance, stability and strength.

All-metal extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Control watercooling pump speeds for best flow and noise control.
7W/mK thermal pad provides better heat transfer to the heatsink

Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Featuring the TURBO USB 3.2 GEN2 10Gbps, with reversible Type-C connector.
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
Protecting VGA cards against bending and EMI for better performance, stability and strength.

All-metal extended heatsink cover enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Control watercooling pump speeds for best flow and noise control.
7W/mK thermal pad provides better heat transfer to the heatsink
HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
PROTECTION
-
ALUMINUM COVER
-
M.2 SHIELD FROZR
-
FULLY FAN CONTROL
-
PUMP FAN READY
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
MEMORY
STORAGE
BIOS & SOFTWARE
-
DDR4 BOOST
-
DDR4 ENHANCEMENT
-
XMP
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
NETWORKING
AUDIO
USB
MYSTIC LIGHT
-
2.5G LAN
-
WI-FI 6
-
LAN MANAGER
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
