Toote informatsioon

Üldnäitajad

Toote tüüp

Emaplaadid

Kaubamärk

MSI

Mudel

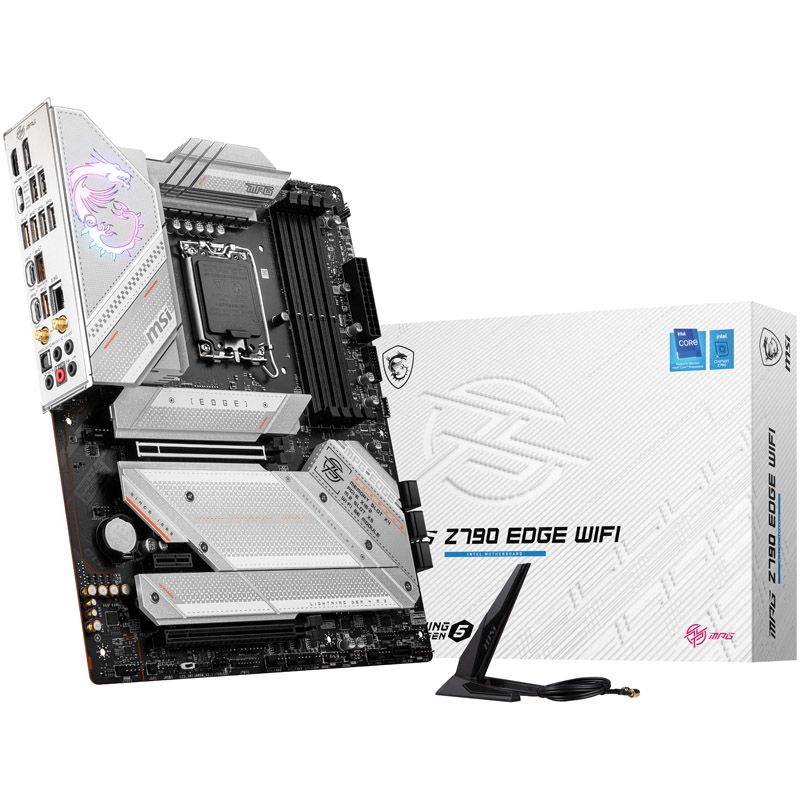

MPG Z790 EDGE WIFI

Kiibistik (chipset)

Intel® Z790

Emaplaadi mõõtmed

Pikkus

305 mm

Laius

244 mm

Plaadi suurus

ATX

Protsessor

Protsessori tüüp

Intel

Protsessori pesa tüüp

LGA 1700

Protsessori pesade arv

Protsessori klass

Intel® Core™ i7

Operatiivmälu

Operatiivmälu pesade kogus

Operatiivmälu tüüp

DDR5

Maksimaalne operatiivmälu maht (RAM)

128 GB

Operatiivmälu taktikaline sagedus

4800 MHz, 5000 MHz, 5200 MHz (O.C.), 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)

Audio, video ja võrgukaart

Helikaardi mudel

Realtek® ALC4080

Võrgukaart

Intel® 2.5Gbps

nVidia SLI

Laienduspesad

PCI Express 4X konnektorid

PCI Express 16X konnektorid

Tagapaneeli ühendused

USB 2.0 liideste arv

USB 3.x liideste arv

Ethernet LAN (RJ-45) pistikupesa

Jah

HDMI-pistikupesade arv

DisplayPort konnektorid

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

Direct Touch Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

Enhanced M.2 Thermal
Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSDs safe while preventing throttling.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Enlarged PCH Heatsink
The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

16 PHASES MIRRORED POWER ARANGEMENT
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z790 EDGE WIFI is ready for the challenge of high-end processors.

The patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.

LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790 CARBON WIFI is ready to deliver the world class memory performance.The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
