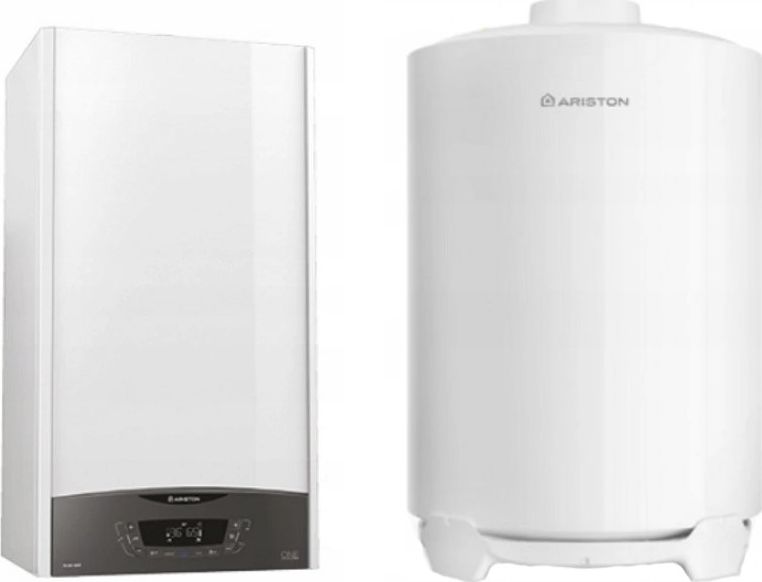

Gaasiboiler Ariston Package One With 24 NET, 22 kW

ONE MEDIUM 24 NET PACKAGE

Single-function condensing boiler package with water heater, weather regulator and remote control via smartphone app.

PACKAGE COMPOSITION:

• CLAS ONE SYSTEM (3301031)
• BCH120 hopper (3060753)
• Cube S Net - room thermostat with Wi-Fi modem (3319126)

SINGLE-FUNCTION CONDENSING BOILER WITH THE AUTO-CLAS ONE SYSTEM FUNCTION

• New XtraTech ™ stainless steel heat exchanger
• New XtraTech ™ stainless steel heat exchanger
• Flow sections in the exchanger increased by + 142% compared to the previous version
• LCD display
• A + energy class when combined with a thermoregulation device
• 1: 7 power modulation
• BusBridgeNet® communication protocol
• AUTO function, Comfort function
• Optimized internal muffler
• Installation also in the area above the bathtub

TECHNICAL DATA:

POWER AND EFFICIENCY

• Rated heat consumption max / min (kW) 22.0 / 3.7
• Usable power max / min (80 ° C-60 ° C) Pn (kW) 21.4 / 3.4
• Usable power max / min (50 ° C-30 ° C) Pn (kW) 23.6 / 3.9
• Useful power in DHW mode max / min (kW) 24.9 / 3.5
• Efficiency at nominal heat consumption (60/80 ° C) (%) 97.5 / 87.7
• Efficiency at nominal heat consumption (30/50 ° C) (%) 107.3 / 96.7
• Efficiency for 30% power and 30 ° C (%) 109.8 / 98.9
• Burner loss during operation (%) 2.0

EMISSION

• Available fan pressure (Pa) 100
• NOx class (class) 5
• Flue gas temperature (GZ50) (° C) 61
• Maximum exhaust gas flow (GZ50) (kg / h) 42.1

CIRCULATION CO

• Maximum pressure in the heating circuit (bar) 3
• Capacity of the expansion vessel (l) 8
• CH temperature min / max (for high temperature range) (° C) 35/82
• CH temperature min / max (for low temperature range) (° C) 20/45

ELECTRICAL PARAMETERS

• Electric power supply (V / Hz) 230/50
• Total electric power consumed (W) 104
• Minimum ambient temperature (° C)> 0
• Electrical protection level (IP) X5D
• Weight (kg) 29.7
• A energy class

HOPPER BCH 120

TECHNICAL DATA:

• Capacity l: 120
• Exchange area m2: 0.7
• Coil power T = 35 ° C kW 25
• Water heating time T = 35 ° C min 21
• Daily energy losses at 65 ° C (kWh / 24h) 1.4
• Continuous water flow at 30 ° C l / h 717
• Net weight kg 52
• Energy class C
