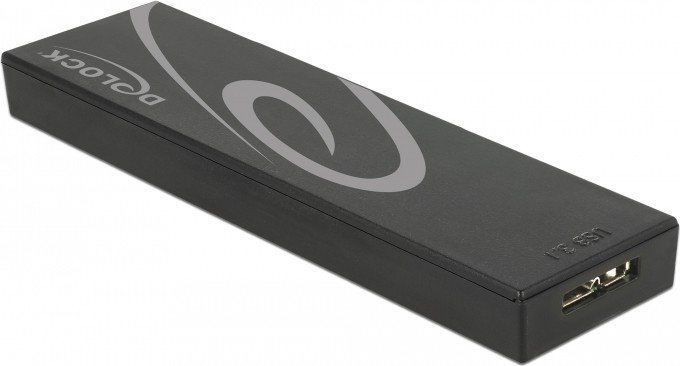

This enclosure by Delock enables the installation of an M.2 SSD in 2280, 2260 and 2242 format, it can be connected via USB to the PC or laptop.
Specification
• Connectors:
external: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type Micro-B female
internal: 1 x 67 pin M.2 key B slot
• Chipset: Asmedia ASM1351
• Supports M.2 modules in format 2280, 2260 and 2242 with key B
or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• LED indicator for power and access
• Maximum power for modules: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Hot Plug, Plug & Play
• Dimensions (LxWxH): ca. 102 x 28 x 10 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.4.x
• PC or laptop with a free USB Type-A port
Package content
• External enclosure M.2
• Mounting material
• Cable USB 3.1 Type-A to Type Micro-B, length ca. 15 cm
• User manual
Package
• Retail Box
