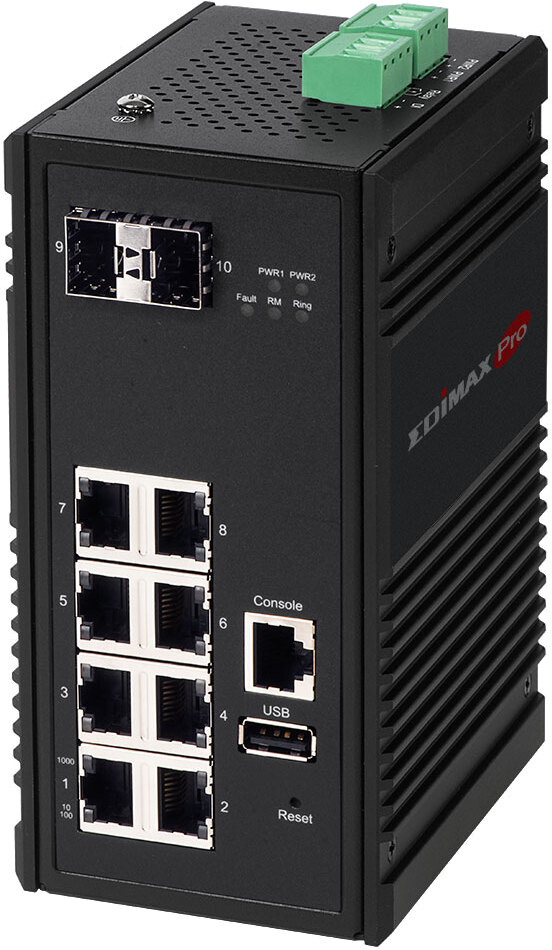

Name: Jagaja (Switch) Edimax IGS-5208
Brand: Edimax
Price: 689 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Jagajad (Switch)

Kaubamärk

Edimax

Mudel

IGS-5208

Hargmiku tüüp

Managed

Sügavus

72 mm

Laius

145 mm

Kõrgus

113 mm

Kaal

850 g

Värv

Must v.

Korpuse materjal

Metall

Võrgustandardid

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Võrgu (LAN) liideste kiirus

10/100/1000 Mbps

Base T liideste arv

Töötemperatuur

-40 - 75 °C

Tööniiskus

10 - 95 %

Hoiustamistemperatuur

-40 - 80 °C

Hoiustamise niisku

10 - 90 %

Liidesed

RJ-45, SFP

Pretensiooni esitamise õigus eraklientidele

24 kuud

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Certified Ruggedized Design
Equipped with anti-dust IP30-rated aluminum alloy case, the switch is designed and certified to withstand a high degree of vibration, shock, free-fall protection and against ESD/EMI surge for harsh environments.*

High/Low Temp. Resistance
The industrial switch operates with a wide temperature range from -40°C to 75°C (-40°F to 167°F) for industrial and outdoor network deployment with capability of withstanding the extreme hot and freezing environments.

Reliable Dual Redundancy
Supports network redundancy with RSTP, MSTP, ERPS, LACP and power redundancy with two power inputs to ease the unexpected risk and ensure stable and reliable network service quality.

*The switch also has industrial-grade certification of EMC (Electromagnetic Compatibility) 61000-6-2, 61000-6-4 and EMS (Electromagnetic Sensitivity) IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field).

Noteworthy Benefits for Your Network
Edimax Pro industrial switch series is designed for easy, flexible deployment and management with ever better cost efficiency by reducing downtime, extending system lifecycle and lowering maintenance costs with more features as below but not last.

USB Console Port
Designed with the USB console port for convenient system backup, restoration and upgrade to enhance maintenance efficiency and reduce system downtime.

Long Range Fiber Link
Featuring with dual-speed fiber SFP slots, connects to uplink to backbone core switch and monitoring data center in long distance from 550M to 30KM.*

Smart & Secure Mgmt.
The industrial switch features smart and simple network monitoring tools that allow for improved network efficiency and security.

*The maximum fiber optic cable distance is subject to the SFP transceiver specification.

For Harsh Environments in IIoT and Smart City
Ideal solution for industrial networks such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy and outdoor applications of railways, roads, tunnels, smart cities, city surveillance and traffic monitoring.
