Juhe Cablemod

Sleeved cables are not just for modding experts, at least not anymore. In the past, only absolute enthusiasts tackled the elaborate and rather risky sheathing of the thin and thick wires in the PC - and sometimes elevated the craft to the art. Thanks to CableMod, every PC user with the right PSU can be an artist today! Because the complete sets, which are offered by CableMod for special power supply series with removable cables, are extremely high quality!

Each individual strand of a wire harness is surrounded by its own sleeve, which looks fantastic and ensures maximum flexibility of the entire cable. Stubborn cables that simply do not want to go where they should go? Old news! CableMod's sleeving material is called "ModFlex", a specially designed fabric that meets the highest demands of seasoned wearers, as it is softer and more flexible than nylon wraps, yet uniquely tight woven and therefore 100% opaque.

The processing of CableMods sleeved cables is impeccable, which is visually pleasing as well as haptic immediately noticeable when you take the cables for the first time in the hand. Also an absolute plus in comparison to some competitors: CableMod completely dispenses with heat shrink tubing at the junctions between wires and plugs. Instead, the colored ModFlex sheaths directly go right into the black connectors, so that no stale heatshrinks disturb the perfect visual impression.

A big advantage over jacketed extension cords in CableMod kits is that they directly replace the standard connection cables included with the compatible modular power supplies. So to get a uniform and very high-quality cable look, not only the original cable must be installed hidden in the housing, which are always at least at the interface to the power supply to see a little.

The Cable Kit offered here is a set of 16 cables whose individual wires are sleeved with ModFlex fabric. The set is compatible with Corsair AXi, HXi, HX, TX-M, CX-M, CS-M, and RM power supplies, and the cable harnesses fit into the dedicated sockets on the power supply unit. The exact number of cables and connections and their length can be found in the technical details.

Notes: Please note that the cable set offered here can only be used for the specified power supply models with modular cable management from Corsair!

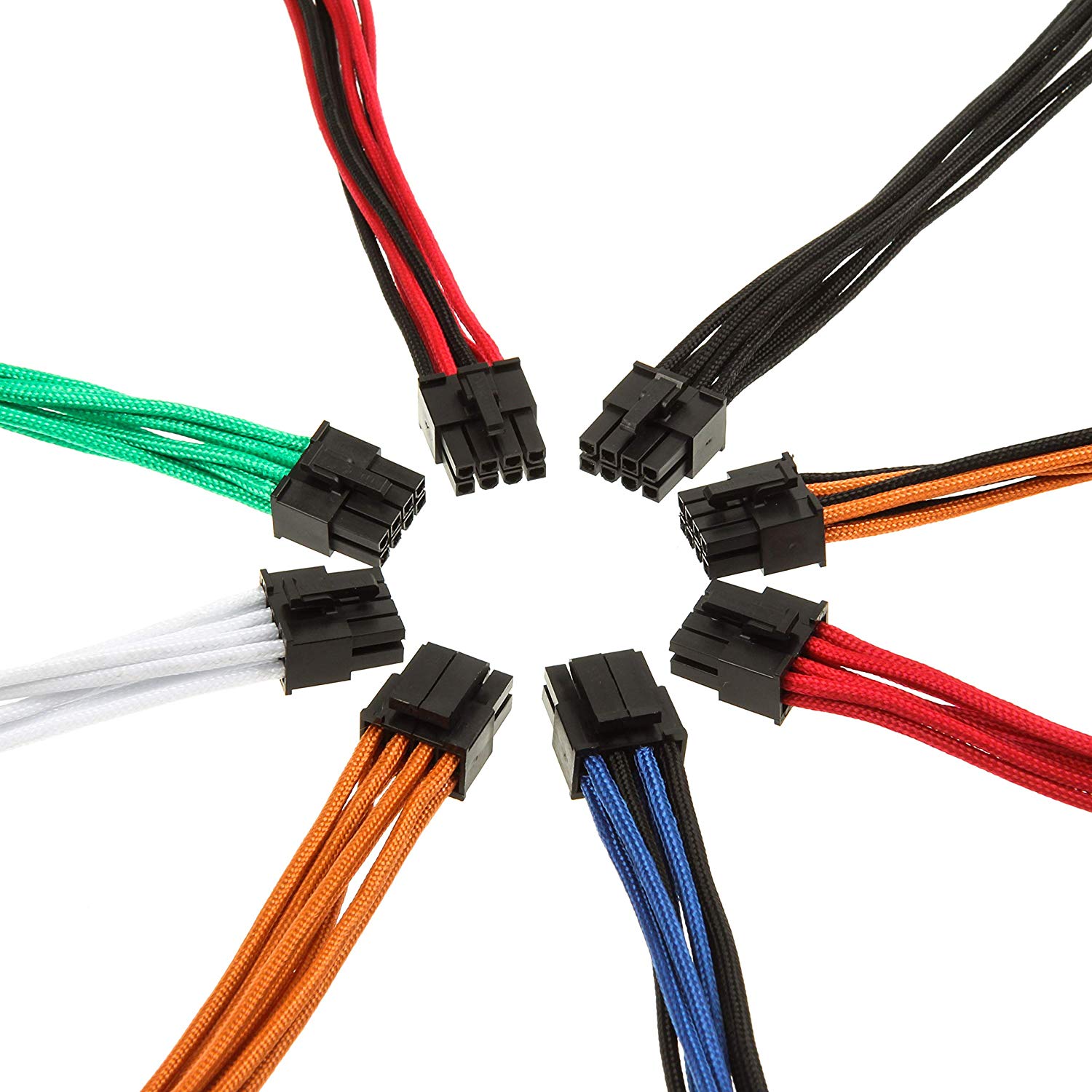

Figure 6 shows an example of some of the offered color variants, but here only the specified in the technical details cables are offered.

Technical details:

• Material Sleeves: Textile (ModFlex)
• Compatibility Power
  Supplies : Corsair AXi Series: AX760i, AX860i, AX1200i, AX1500i
  Corsair AX Series *: AX760, AX850
  Corsair HXi Series: HX450i, HX750i, HX850i, HX1000i
  Corsair HX Series: HX650, HX750, HX850, HX1050
  Corsair TX-M Series: TX550M, TX650M, TX750M, TX850M
  Corsair CX-M Series: CX430M, CX500M, CX600M, CX750M
  Corsair CS-M Series: CS550M, CS650M, CS750M, CS850M
  Corsair RM Series: RM450, RM550, RM650, RM750, RM850, RM1000
• Cable:
  1x 20 + 4-pin ATX12V / EPS12V (580 mm without plug)
  2x 4 + 4-pin ATX12V / EPS12V (680 mm without plug)
  4x 6 + 2-pin PCIe (580 mm without plug)
  2x Dual-6 + 2-pin PCIe (1st / 2nd connection: 580/670 mm without plug)
  1x Quad-SATA (1st / 2nd / 3rd / 4th connection: 530/630/740/840 mm without plug)
  1x Quad -SATA (
  1st / 2nd / 3rd / 4th connection: 380/480/590/700 mm without plug) 2x Dual SATA (1st / 2nd connection: 380/490 mm without plug)
  1x Triple-4 -Pol Molex (
  1st / 2nd / 3rd connection: 520/610/710 mm without plug) 2x Dual-4-Polole Molex (1st / 2nd connection: 370/470 mm without plug)
  1x adapter from 4- Pol Molex to Floppy (100 mm without plug, no sleeve, black single-plastic sheath)
• Note:
  * The Corsair AX Series AX760 and AX860 Power Supply Models are limitedly compatible with this cable set and require a 24-pin ATX cable sold separately. If necessary, please contact CableMod Support directly .
