Toote kirjeldus inglise keeles:

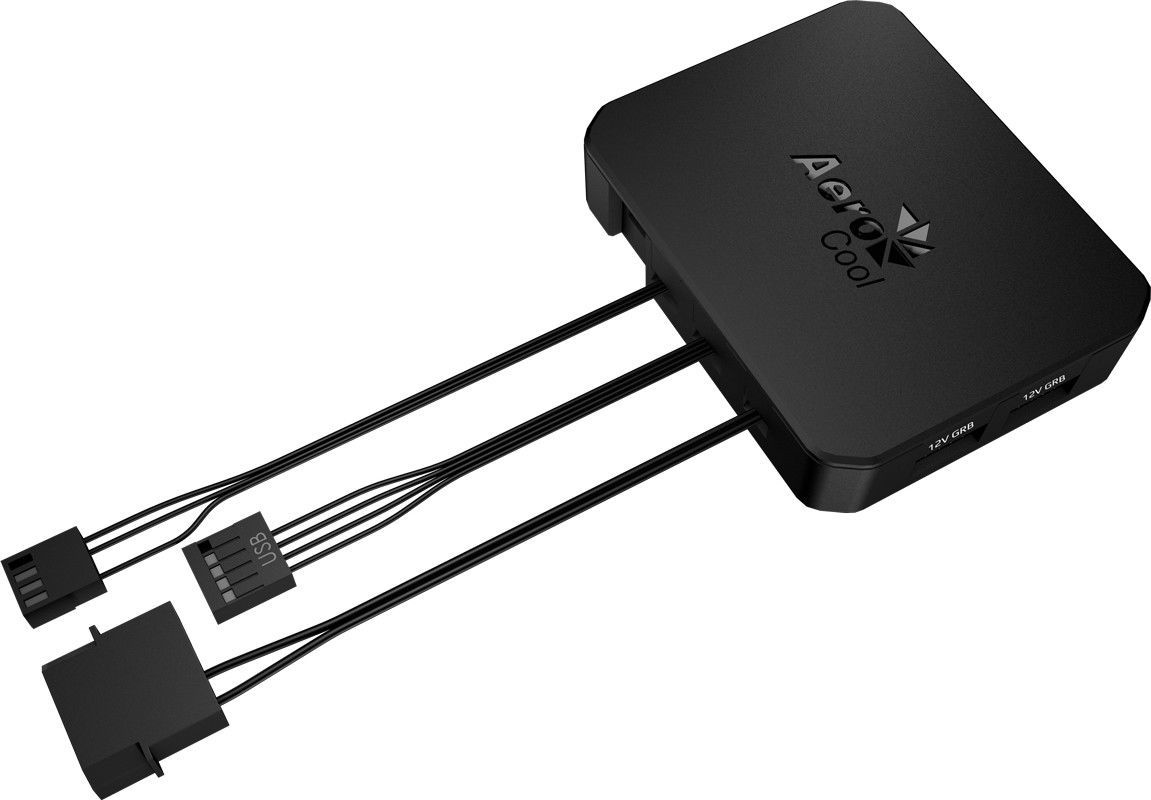

RGB hub for fans and LED strips, compact size, 5 ports with 18 watts each for RGB LED fans, 2 expandable ports with 24 watts each for RGB strips, connection for fan control of the mainboard
With the P7-H1, Aerocool has a unique modding product that can illuminate your PC even more spectacularly. Via the hub and with the help of the associated software, the lighting of RGB light strips or fans in the housing can be controlled. The P7-H1 fan hub allows the control of up to five 4-pin or 3-pin fans, whose lighting can be controlled via the appropriate software P7-S1. Each fan channel has an output power of up to 10 watts. In addition, the number of revolutions of the fans in the software can be read, although it can not be changed via the P7-H1.
In addition to the fan connectors, the P7-H1 also has two four-pin RGB LED strip connectors for a total output power of up to 24 watts per channel. Power is supplied via a 4-pin Molex power plug of the power supply, the control is again via a PWM fan connector on the motherboard, through which the motherboard then takes over the fan control, and a free USB 2.0 port through which the Software accesses the hub and passes the lighting settings to the connected fans or RGB LED strips.
Depending on the possible power supply and the available USB ports of the mainboard, up to eight P7 H1 hubs can be operated in parallel. In addition to all 16.8 million colors from the RGB spectrum, the lighting modes Static, Breathing and Pulsing as well as an adjustment of the brightness and the effect speed are available.
RGB hub for fans and LED strips, compact size, 5 ports with 18 watts each for RGB LED fans, 2 expandable ports with 24 watts each for RGB strips, connection for fan control of the mainboard
With the P7-H1, Aerocool has a unique modding product that can illuminate your PC even more spectacularly. Via the hub and with the help of the associated software, the lighting of RGB light strips or fans in the housing can be controlled. The P7-H1 fan hub allows the control of up to five 4-pin or 3-pin fans, whose lighting can be controlled via the appropriate software P7-S1. Each fan channel has an output power of up to 10 watts. In addition, the number of revolutions of the fans in the software can be read, although it can not be changed via the P7-H1.
In addition to the fan connectors, the P7-H1 also has two four-pin RGB LED strip connectors for a total output power of up to 24 watts per channel. Power is supplied via a 4-pin Molex power plug of the power supply, the control is again via a PWM fan connector on the motherboard, through which the motherboard then takes over the fan control, and a free USB 2.0 port through which the Software accesses the hub and passes the lighting settings to the connected fans or RGB LED strips.
Depending on the possible power supply and the available USB ports of the mainboard, up to eight P7 H1 hubs can be operated in parallel. In addition to all 16.8 million colors from the RGB spectrum, the lighting modes Static, Breathing and Pulsing as well as an adjustment of the brightness and the effect speed are available.
