Name: Korpuse detailid Inter-Tech IPC 4U-4129-N, must v.
Brand: Inter-Tech
Price: 179.63 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Korpuste detailid

Kaubamärk

Inter-Tech

Mudel

IPC 4U-4129-N

Materjal

Metall

Värv

Must v.

Pikkus

48.2 cm

Kõrgus

17.8 cm

Laius

68.8 cm

Kuulub komplekti

1 x IPC 4U-4129-N 4U seisva korpuse raam – must

Pretensiooni esitamise õigus eraklientidele

24 kuud

Täiendav info

4U serverikorpus firmalt Inter-Tech, 7x eelinstallitud ventilaatorid emaplaatidele kuni EATX / SSI EEB, lukustatav esikaas koos tolmufiltri sisestusega, USB 2.0 ja 3.0 pordid, Paigaldusvõimalus koondatud toiteallika jaoks

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

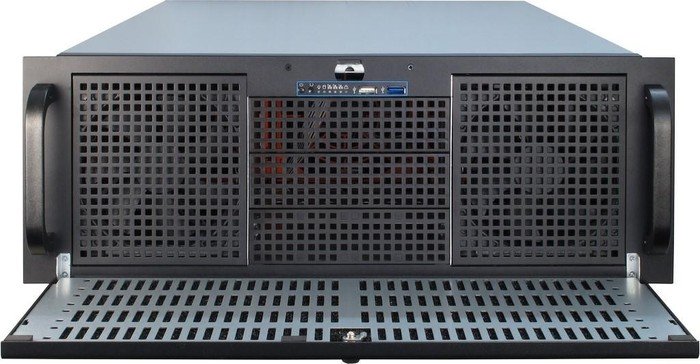

IPC 4U-4129-N, 4U rack server housing - black

Server rack in 4U format from Inter-Tech . The long installation depth of 650 mm also enables large mainboards (up to EATX / SSI EEB) to be accommodated. The robust steel construction offers space for up to four 2.5 "and eleven 3.5" data carriers. A total of seven fans are already pre-installed and the lockable front flap offers a removable dust filter.
The features of the Inter-Tech IPC 4U-4129-N server housing at a glance:
4U rack server case from Inter-Tech
For Mini ITX, mATX, ATX, EATX and SSI EEB boards
Pre-installed fans: 5x 120 mm and 2x 80 mm
Lockable front flap with dust filter insert
Removable and positionable drive cages
3x 5.25 inches (external) / 11x 3.5 inches (internal) / 4x 2.5 inches (internal)
Seven expansion slots
The features of the Inter-Tech IPC 4U-4129-N server housing in detail
The Inter-Tech IPC 4U-4129-N is a 4U server housing and can accommodate eleven internal 3.5-inch hard drives , three external 5.25-inch drives and four internal 2.5-inch drives. Thanks to the large installation depth of 650 mm, large motherboards up to the EATX / SSI EEB form factor can also be mounted. Seven slots are available for expansion cards. Inter-Tech has already installed seven fans to cool the hardware and data carriers .

In the front there are two drive cages , each with a 120 mm fan. Three more 120 mm fans are installed internally and two 80s fans sit in the back. The front offers an effective dust protectionremovable dust filter insert . Behind the lockable front flap , next to the drive cages, there are three external 5.25-inch drive bays, the status LEDs and one USB 2.0 and one USB 3.0 port.

If optionally available telescopic rails are used during installation, the 4U-4129-N housing can be pulled out of the rack using the two handles for simple maintenance work. CPU coolers must not exceed a height of 155 mm, graphics cards can be a maximum of 345 mm long . A standard ATX power supply or a redundant power supply can be installed to supply the hardware with power.
