Toote informatsioon
Tootekirjeldus inglise keeles:

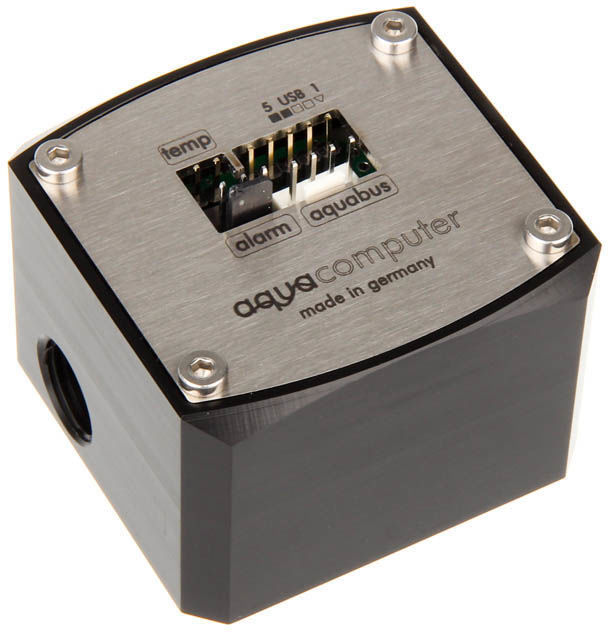

Aqua Computer flow sensors are easily integrated into your water cooling loop and allow continuous flow monitoring. Due to its low flow resistance, this sensor is a perfect match for high flow water cooling systems. Furthermore, being manufactured from high quality materials such as Delrin and stainless steel sets the sensor apart from most other rather optically unattractive flow sensors. Having two identical nozzles, the flow direction can be freely chosen and the G 1/4 threads can be used with virtuelly any tube dimensions. The base part also has four M3 threads to be easily attached to the PC case. The sensor is accurate up from approximately 40 l/h up to 1500 l/h (approximately 10 to 400 US liquid gallons per hour) and is therefore perfectly suited for most water cooling systems.
The USB variant of the high flow sensor features an integrated microcontroller with USB and aquabus interface, programmable alarm output and external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the flow sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Flow signal, ambient temperature and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors.
Compatibility list aquabus interface:
aquaero 6 XT (53146, 53206)
aquaero 6 PRO (53145)
aquaeor 6 LT (53234)
aquaero 5 XT (53125, 53089)
aquaero 5 PRO (53090)
aquaero 5 LT (53095)
Compatibility list external temperatue sensor input:
Temperature sensor inline G1/4 (art. 53066)
Temperature sensor inner/outer thread G1/4 (art. 53067)
Temperature sensor G1/4 (art. 53147)
Temperature sensor plug&cool (art. 53025)
Temperature sensor 70 cm (art. 53026)

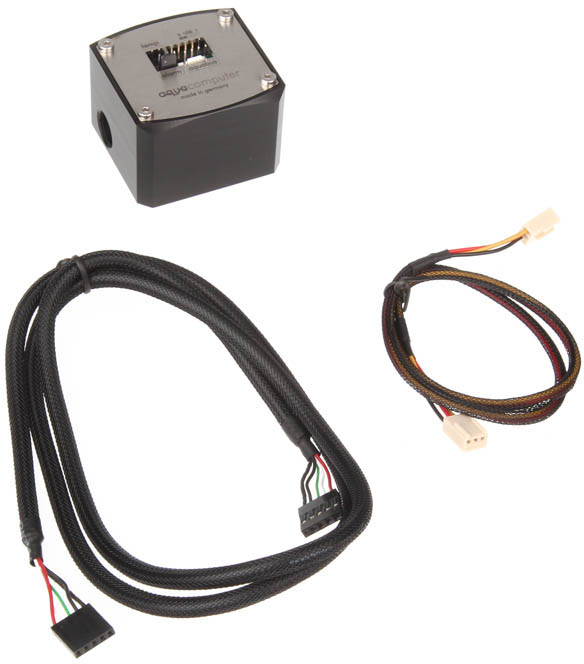

Scope of delivery:
One flow sensor
One internal USB cable
One aquabus/rpm signal cable (3 pins)
Technical details:
Dimensions without fittings and without cables: approx. 53 x 50 x 43 mm
Connection threads G 1/4, fittings not included!
Mounting threads: 4x M3, rectangularly arranged at intervals 35 x 44 mm
Aqua Computer flow sensors are easily integrated into your water cooling loop and allow continuous flow monitoring. Due to its low flow resistance, this sensor is a perfect match for high flow water cooling systems. Furthermore, being manufactured from high quality materials such as Delrin and stainless steel sets the sensor apart from most other rather optically unattractive flow sensors. Having two identical nozzles, the flow direction can be freely chosen and the G 1/4 threads can be used with virtuelly any tube dimensions. The base part also has four M3 threads to be easily attached to the PC case. The sensor is accurate up from approximately 40 l/h up to 1500 l/h (approximately 10 to 400 US liquid gallons per hour) and is therefore perfectly suited for most water cooling systems.
The USB variant of the high flow sensor features an integrated microcontroller with USB and aquabus interface, programmable alarm output and external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the flow sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Flow signal, ambient temperature and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors.
Compatibility list aquabus interface:
aquaero 6 XT (53146, 53206)
aquaero 6 PRO (53145)
aquaeor 6 LT (53234)
aquaero 5 XT (53125, 53089)
aquaero 5 PRO (53090)
aquaero 5 LT (53095)
Compatibility list external temperatue sensor input:
Temperature sensor inline G1/4 (art. 53066)
Temperature sensor inner/outer thread G1/4 (art. 53067)
Temperature sensor G1/4 (art. 53147)
Temperature sensor plug&cool (art. 53025)
Temperature sensor 70 cm (art. 53026)
Scope of delivery:
One flow sensor
One internal USB cable
One aquabus/rpm signal cable (3 pins)
Technical details:
Dimensions without fittings and without cables: approx. 53 x 50 x 43 mm
Connection threads G 1/4, fittings not included!
Mounting threads: 4x M3, rectangularly arranged at intervals 35 x 44 mm
