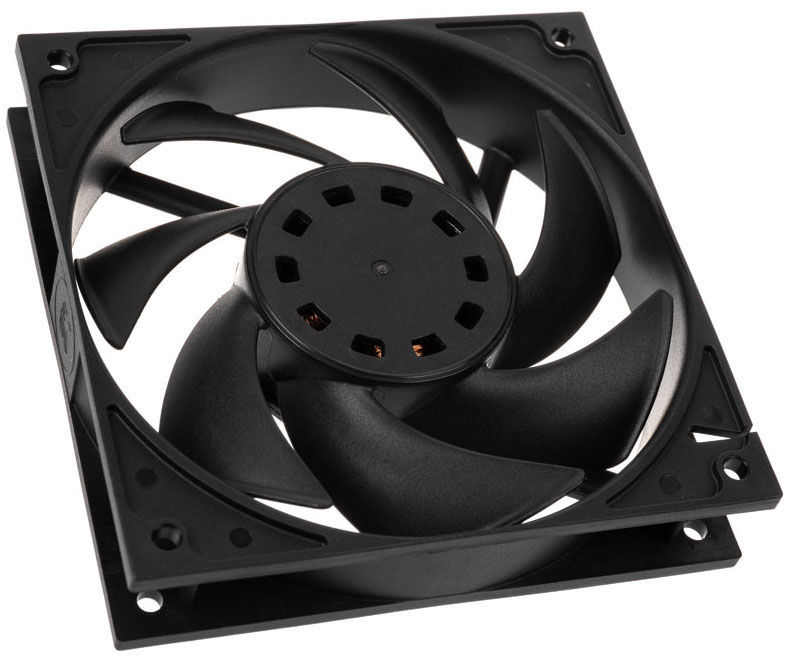

Name: Õhkjahuti korpusele EK Water Blocks EK-Furious Vardar EVO 120
Brand: EK Water Blocks
Price: 21.39 EUR
Availability: OutOfStock

Toote informatsioon

Üldnäitajad

Toote tüüp

Õhkjahutid

Kaubamärk

EK Water Blocks

Mudel

EK-Furious Vardar EVO 120

Ettenähtud

Korpusele

Värv

Must v.

Lisaks

Pretensiooni esitamise õigus eraklientidele

24 kuud

Täiendav info

Mõõtmed: 120 x 120 x 25 mm (laius x kõrgus x sügavus). Materjal: plastik. Värv: must (raam), must (ventilaator). Ühendus: 4-pin PWM. Kaabli pikkus: 300 mm (punane kate). Kiirus: kuni 3000 p/min. PWM kontrollvahemik: 40 - 100%. Müratase: kuni 42 dB. Õhuvool: kuni 181 m³/h. Staatiline rõhk: 5,81 mm H2O. Pinge: 12 V. Tööiga: 50 000 tundi (MTBF). Komplektis: 1 x ventilaator EK Vardar EVO. 4 x ventilaatori kruvid.

Märkasid viga toote kirjelduses, spetsifikatsiooni tabelis või fotogaleriis? Teavita meid

Toote värv võib erineda fotol näidatust.

Tootekirjeldus inglise keeles:

The EK-Furious Vardar Evo 120 is an enhanced version of the proven EK-Vardar series fan, which has been optimized to produce high static pressure. It is therefore particularly well suited for mounting on radiators of water cooling.
The features of the EK-Furious Vardar EVO 120 fan:

Quiet at high static pressure - ideal for cooling radiators
Maximum speed 3,000 rpm (+/- 10%) at 42 dB (A)
181 m³ / h Airflow & 5.81 mm H2O Air pressure & 12 V operating voltage
4-pin PWM connector for controlling and monitoring the fan speed
30 cm long sleeved cable & dual ball bearings with 50,000 h MTBF

Perfect for radiators: the EK-Furious Vardar EVO 120 The EK-Vardar is available in several speed and corresponding power levels, all variants have a 4-pin PWM connector for the purpose of automatic control by the motherboard, but equally well at maximum speed on a 3-pin connector or can be operated on a fan control. The Evo version in 120 mm format is particularly powerful and therefore carries the additional name "Furious", because it rotates at a maximum of 3,000 rpm and the PWM control range is between 40 and 100 percent. If the fan curve on the motherboard is set below 25-30%, the automatic start-stop function of the Vardar EVO activates and the fan stops turning. The Vardar EVO starts by itself when the fan curve rises again.

Because the Vardar fans should be able to overcome with their airflow in the first place, the resistance thickest heat exchanger with a high sipe density, so the focus is on the highest possible static pressure with low operating noise over the entire speed range. The characteristics of the EK-Furious Vardar EVO 120 (3,000 RPM) make it clear that this is absolutely successful: 5.81 mm H2O at full speed generate only 42 dB (A) sound pressure.

Of course, EK Water Blocks also attaches great importance to a long product life and therefore uses a dual-ball slide bearing in the black fan, which therefore has a durability of 50,000 hoursis specified. The connection is made via a 30 cm long, red sleeved cable. The EK-Furious Vardar comes with four fan screws.
