Salakaamera AXIS F1035-E/3M

Flexible, rugged design for indoor, outdoor and mobile use
Fisheye lens with 1080p resolution
Ultra-wide 194° horizontal field of view
Supports WDR – Forensic Capture (with AXIS F41/F44 Main Unit)

Discreet, wide area surveillance

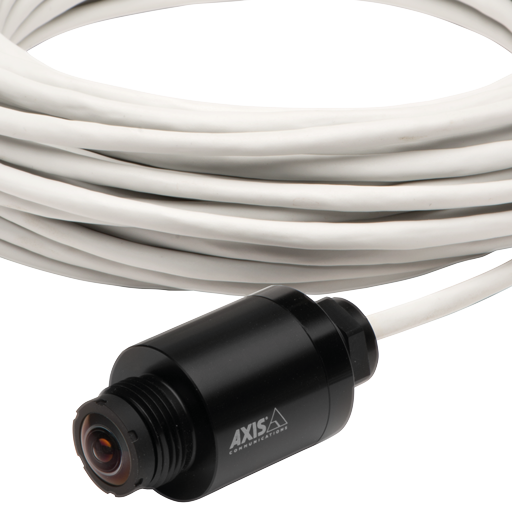

AXIS F1035-E Sensor Unit, together with an AXIS F Main Unit, provides wide area coverage with a fisheye view. It is ideal for highly discreet overview surveillance in indoor, outdoor and mobile surveillance applications; for example, at entrances, long corridors, around an ATM (automated teller machine), in emergency vehicles, buses and trams.

The small sensor unit can be installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged, IP66-rated AXIS F1035-E withstands dust, rain, snow, vibrations, shock and temperature fluctuations.

AXIS F1035-E comprises an image sensor with 1080p resolution (1920 x 1080 pixels) and a fisheye lens that provides a 194° horizontal field of view.
AXIS F1035-E also supports Wide Dynamic Range (WDR) – Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR – Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene.

AXIS F1035-E is available with a 3-m or 12-m (10-ft. or 39-ft.) pre-mounted cable for connection to an AXIS F Main Unit. The main unit can be placed further away in an indoor location, inside a vehicle or in an outdoor enclosure.

AXIS F1035-E comes with an AXIS F8201 Vari-angle Mounting Bracket that enables the sensor unit to be secured and tilted in any position.


The above snapshots illustrate how and where AXIS F1035-E can be used. 1, an example of doorway surveillance, whereby people positioned flushed to either side of the camera will still be visible; 2, overview surveillance at an entrance; 3, overview surveillance when the unit is ceiling mounted in a room; 4, overview surveillance in a bus for a fuller picture of events.
