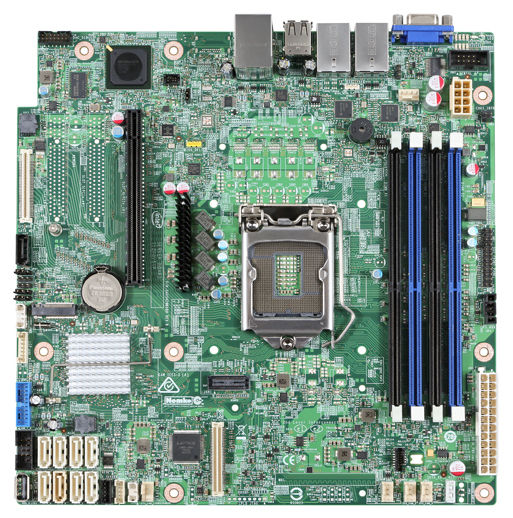

Intel® Server Board S1200SP Product Family
Toote kirjeldus inglise keeles:
Small businesses have the same needs as large scale companies in terms of cost-effective, reliable
performance- just on a smaller scale. The Intel® Server Board S1200SP product family is designed to
maximize the power of the Intel® Xeon® processor E3 v5 product family and Intel® C230 series chipset
with PCIe Gen3, USB3, SATA 6G and Intel® Node Manager. Practical management features with just
the right set of options makes this pedestal system affordable today, and scalable tomorrow.
Reliable performance
Affordable management and storage
IPMI* 2.0 and integrated BMC
Dedicated Management NIC port onboard
Optional Intel® Remote Management Module
Optional Intel® Integrated RAID Module and M.2 SSD
Optional 12Gb/6Gb backplanes
Easy Integration
Toote kirjeldus inglise keeles:
Small businesses have the same needs as large scale companies in terms of cost-effective, reliable
performance- just on a smaller scale. The Intel® Server Board S1200SP product family is designed to
maximize the power of the Intel® Xeon® processor E3 v5 product family and Intel® C230 series chipset
with PCIe Gen3, USB3, SATA 6G and Intel® Node Manager. Practical management features with just
the right set of options makes this pedestal system affordable today, and scalable tomorrow.
Reliable performance
- Supports one Intel® Xeon® processor E3 v5 TDP 80W
- Supports DDR4 UDIMM ECC 2133MT/S
- Intel® RSTe 4 RAID Technology and Intel® Embedded Server RAID Technology II
- 460-W Cold Redundant Power Supplies inside Intel® Server Chassis P4000XXSFDR
Affordable management and storage
IPMI* 2.0 and integrated BMC
Dedicated Management NIC port onboard
Optional Intel® Remote Management Module
Optional Intel® Integrated RAID Module and M.2 SSD
Optional 12Gb/6Gb backplanes
Easy Integration
- Standard microATX board form factor
- Compatible with Intel® pedestal chassis or 3rd party options
- Accessories and Spares to support easy upgrade and maintenance
